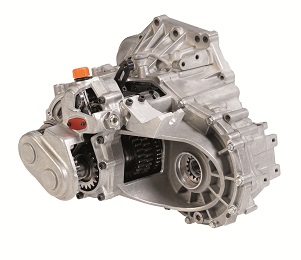

Toyota 6-Speed Sequential Gearkit (C52) — high-quality Quaife product for motorsport and road use.
Please note that due to the complexity of installation, we do not supply this in kit form.
We will only build this kit into a donor gearbox that must be supplied when ordering.
Please contact our sales team on sales@quaife.co.uk to confirm your requirements and place an order.
The QKE12E six-speed sequential gearkit is purpose designed for the 4A-GE and 4E-FE engines, using the C52 transmission.
A direct replacement for the standard 5-speed H-pattern Toyota transmission, the QKE12E six-speed sequential gearkit package includes a specially strengthened outer gearbox casing and sequential gearchange mechanism, which features a compact, drum style design for an ultra rapid gear shift.
QKE12E utilises the original bellhousing half of the casing, allowing the retention of the Toyota clutch, differential, driveshafts and mounting points. The QKE12E offers optimised gearing with a choice of five shorter overall final drives and two sets of close-ratio intermediate gears with a straight cut tooth form.
These design elements enable Quaife to minimise transmission power losses and allow drivers to easily keep the 4A-GE and 4E-FE engines working in their power band, while delivering a top speed more suited to the needs of competition.
Key technical features of QKE12E include:-
• Strengthened gear casing and stock mounting points
• Ultra fast sequential gearshift with straight cut, close-ratio gears
• Retains stock Toyota clutch, diff, driveshafts and mounts
• Optional Quaife ATB (QDF15E) and final drive ratio (QRE12E) available
Gear Ratios
1st 2nd 3rd 4th 5th 6th
2.545 1.929 1.563 1.333 1.167 1.050
3.200 2.250 1.647 1.368 1.143 0.957
Final Drive Ratios
3.733 3.857 4.143 4.417 5.000
