Ford Sierra (Type 9) 5-Speed Clubman Synchromesh Gearbox

Ford Sierra (Type 9) 5-Speed Clubman Synchromesh Gearbox — high-quality Quaife product for motorsport and road use.

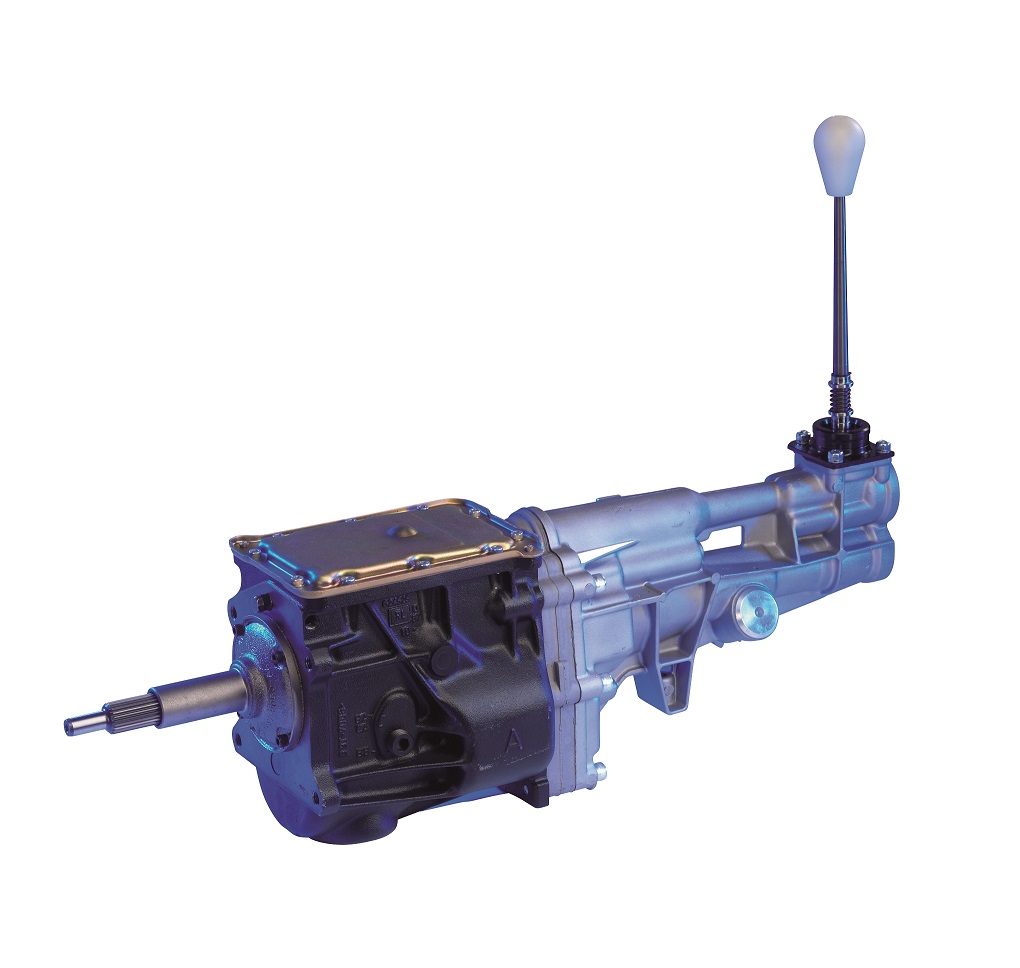

The QBE13Z is a 5-speed Clubman synchromesh Ford Sierra (Type 9) gearbox, suitable for classic Ford models including the Escort Mk1/2 and Sierra. As a complete assembled gearbox QBE13Z retains the original Ford mainshaft, synchromesh components and selector mechanisms, while the layshaft is assembled using separate gears.

Rated to a maximum of 190bhp, QBE13Z features power loss minimising straight-cut, close-ratio gears in a wide choice of motorsport orientated gear ratios, fitted into a reconditioned crack tested Ford gear case.

An alloy maincase, alloy top cover, steel baulk rings, Quaife gear lever and a heavy duty operating block are available cost options.

Key features of the QBE13Z Ford Sierra Type 9 Clubman synchromesh gearbox include:

• Straight-cut, close-ratio gears with synchromesh engagement

• Large choice of motorsport gear ratios

• Choice of input shaft length for numerous installation options

**DONOR BOX REQUIRED**

Gear Ratios:

Note:
This gearbox is supplied without a speedo drive gear.
If a speedo drive gear is required this will need to be supplied to us prior to build.
