Lotus Elise / Exige PG1 6-Speed Sequential Dog Engagement Gearkit — high-quality Quaife product for motorsport and road use.
Please note this is a gearkit not a full gearbox. We can build this into a customer supplied gearbox for an additional labour charge.

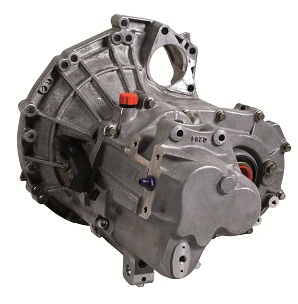

QKE10R delivers ultra-fast sequential gearshift technology for owners of Lotus Elise / Exige models using the PG1 gearbox. QKE10R features a replacement Quaife outer gearbox tailcase which houses six power loss minimising straight-cut, close-ratio gears and a compact, drum-style sequential gearchange mechanism. This combines with an open face dog design to ensure an ultra-rapid, positive sequential gear shift on QKE10R
QKE10R to retains the original PG1 bellhousing half of the transmission casing, plus the stock Lotus clutch, differential, driveshafts and mounting points. This enables easy installation of the QKE10R sequential gearkit into numerous Lotus models and potentially the MGF and MG ZR / ZS.
QKE10R is supplied with gear ratios suited to motorsport requirements and three final drive options to optimise top speed for the needs of competition.
Key features of the QKE10R Lotus Elise / Exige PG1 six-speed sequential gearkit include:
-Six straight-cut, close-ratio gears with motorsport suited final drive ratios
-Ultra fast sequential gearshift
-Retains stock Lotus Elise / Exige clutch, diff, driveshafts and mounts
-Optional Quaife ATB (QDF28K) and LED digital gear readout (QMLED) available
PLEASE NOTE: The Quaife QKE10R package includes the new transmission housing, gear lever and cable
Gear Ratios
1st 2nd 3rd 4th 5th 6th
2.583 2.071 1.688 1.412 1.200 1.048
Final Drive Ratios
3.923 4.214 4.462
