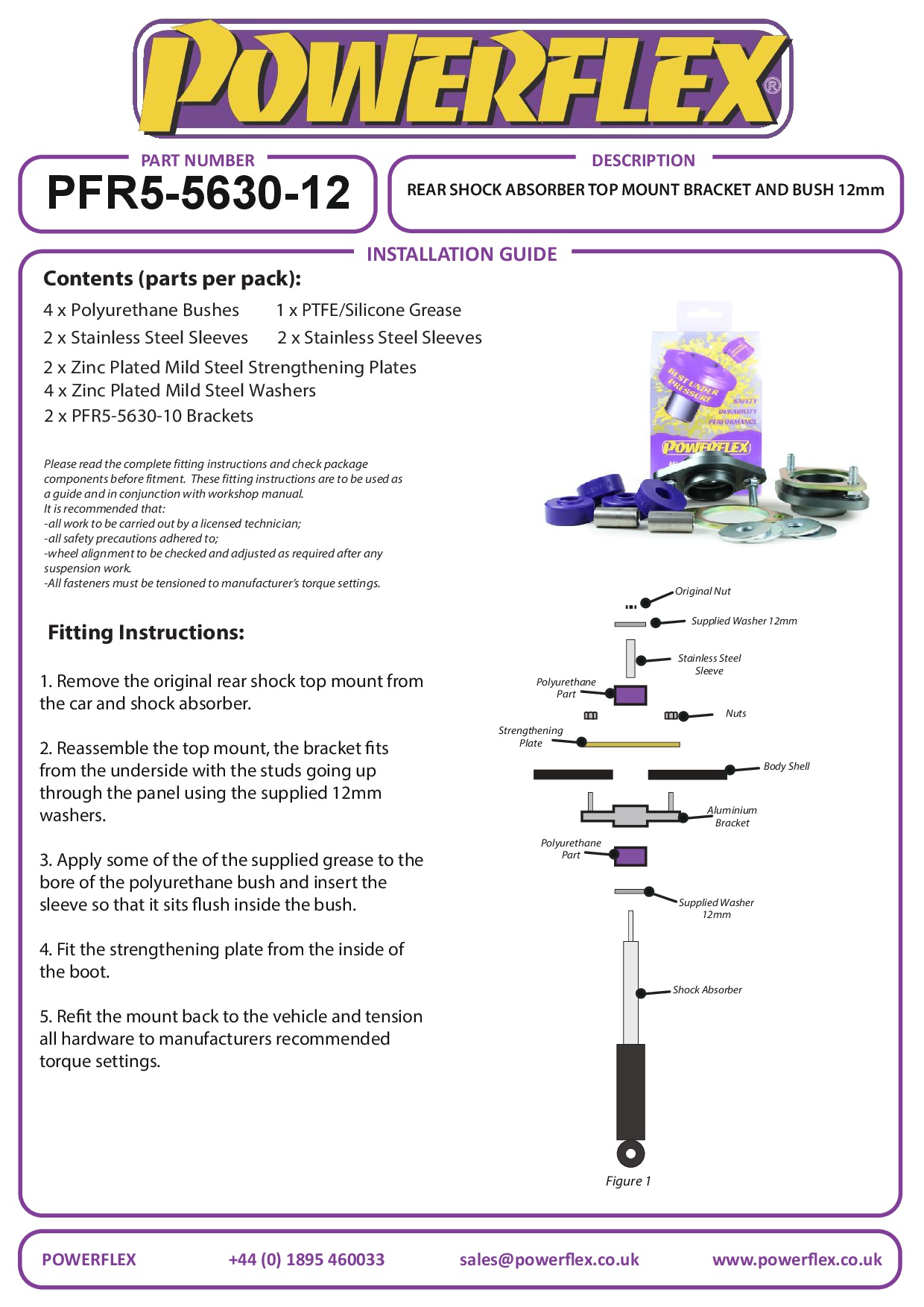

Rear Shock Top Mount Bracket and Bush 12mm 3 Series, Z Series, black

Rear Shock Top Mount Bracket and Bush 12mm

Applicable to:

Brand: BMW
Model: 3 Series
Variant: E30 inc M3 (1982 - 1991)

Brand: BMW
Model: 3 Series
Variant: E36 Compact (1993-2000)

Brand: BMW
Model: 3 Series
Variant: E36 inc M3 (1990 - 1998)

Brand: BMW
Model: 3 Series
Variant: E46 (1999 - 2006)
Variant 2: E46 Compact

Brand: BMW
Model: Z Series
Variant: Z3 inc M (1994 - 2002)

Brand: BMW
Model: Z Series
Variant: Z4 Series
Variant 2: Z4 E85 & E86 (2003-2009)



Suits cars with aftermarket rear shock absorber with a 12mm pin. Will not fit E36 and E46 Cabriolet models. Suspension BrandRear Shock Absorber Shaft DiameterOriginal BMW10mmAST10mmBilstein HD, Sport, PSS Coilovers10mmFK Coilovers10mmH&R Coilovers10mmJRZ RS12mmKoni Sport10mmKW V1, 2, 310mmST Coilovers10mmTein Coilovers12mmThe above list is meant as a guide only. If your shock absorber brand is not listed, measuring the OD of the shaft will determine whether PFR5-5630-10 or PFR5-5630-12 should be fitted.

When there is no stock, usually available in a week. Contact us for details or assembly. Beware, priced per unit, always order at least the minimum order quantity.
