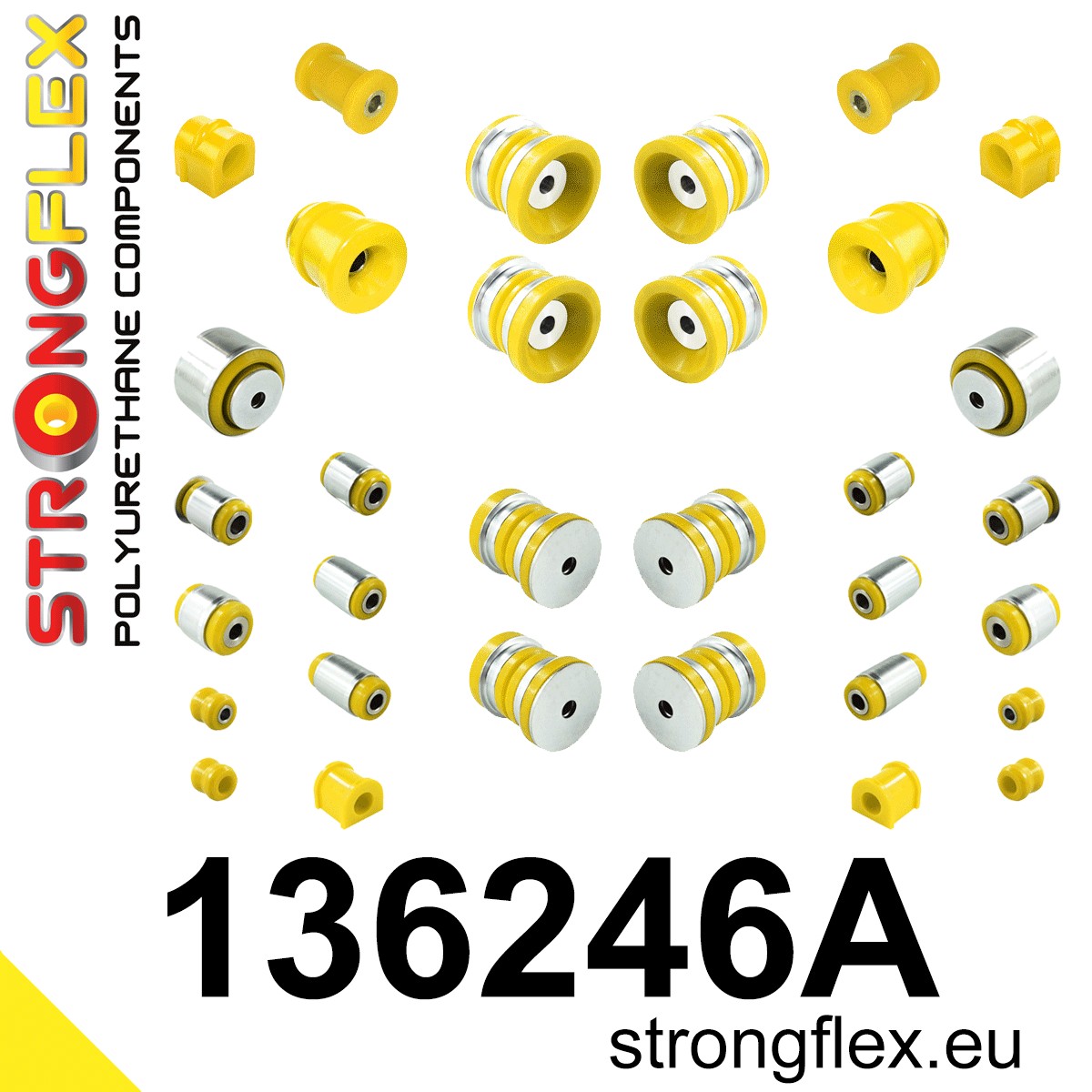

136246A: Full suspension polyurethane bush kit SPORT BLS (05-10) / Croma II (05-10) / Signum (03-08) / Vectra C (02-08) / 9-3 II (02-14)

Reference: 136246A

Product name: Full suspension polyurethane bush kit SPORT

Fits to:

• Cadillac BLS (05-10)


• Fiat Croma II (05-10)


• Opel / Vauxhall Signum (03-08)
• Opel / Vauxhall Vectra Cavalier C (02-08)

Include:

• 2x 131132A: Front wishbone front bush SPORT
• 2x 131775A: Front wishbone rear bush SPORT
• 2x 131776A: Front anti roll bar bush SPORT


• 2x 131978A: Rear anti roll bar link bush SPORT
• 2x 131979A: Rear anti roll bar link bush SPORT
• 2x 131994A: Rear trailing arm bushing - front SPORT
• 2x 131995A: Rear upper control arm bushing - inner SPORT
• 2x 131997A: Rear lower control arm bushing – inner SPORT
• 2x 131998A: Rear steering knuckle bush SPORT
• 2x 131999A: Rear stabilizer bush SPORT
• 2x 132006A: Rear track rod inner bush SPORT
• 2x 132007A: Rear track rod outer bush SPORT


• 2x 132000A: Rear subframe – front bush SPORT
• 2x 132001A: Rear subframe – rear bush SPORT


• 2x 132002A: Front subframe – front bush SPORT
• 2x 132003A: Front subframe - rear bush SPORT

Diagrams:

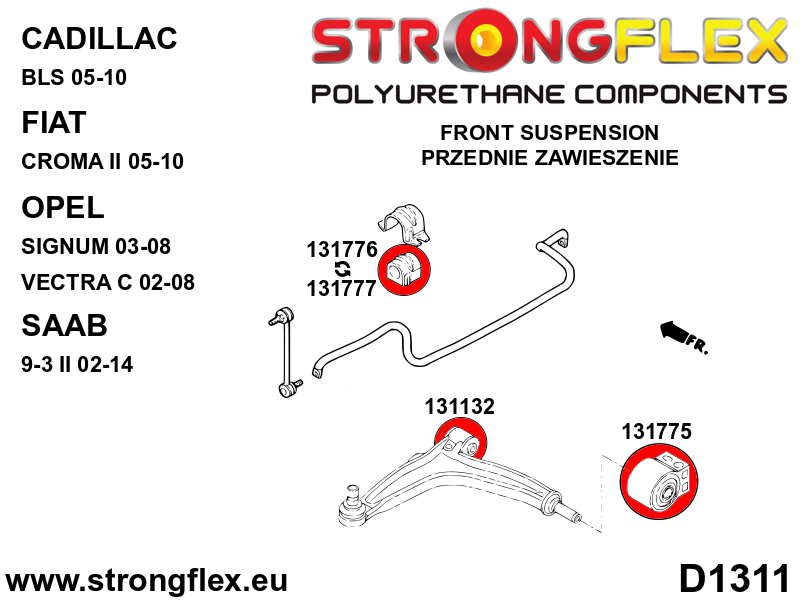

• D1311

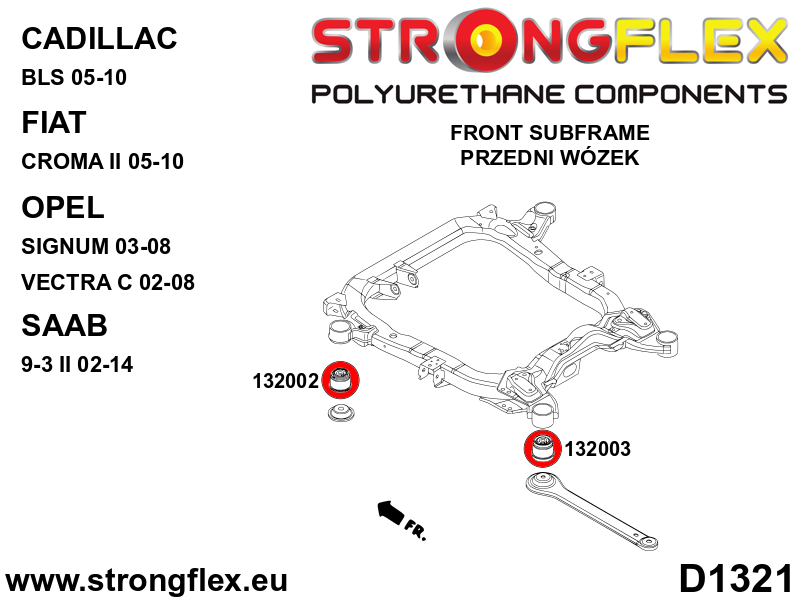

• D1321

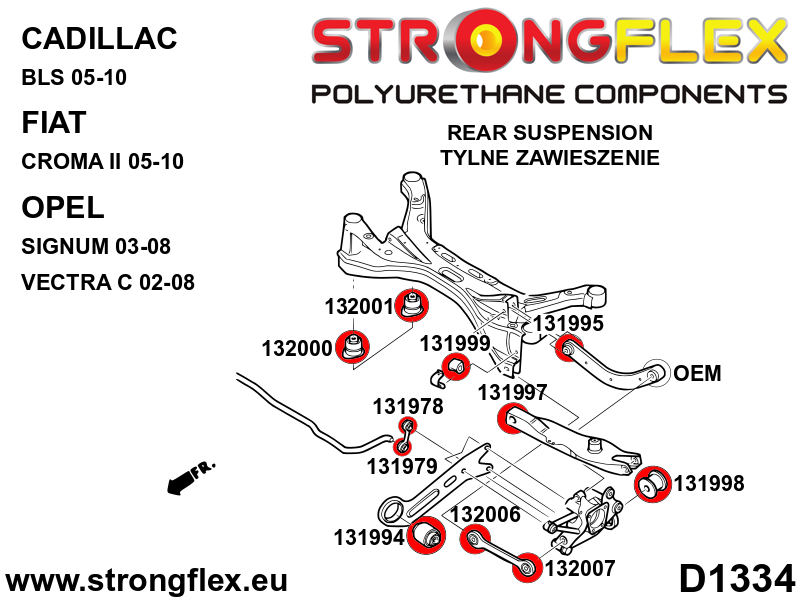

• D1334

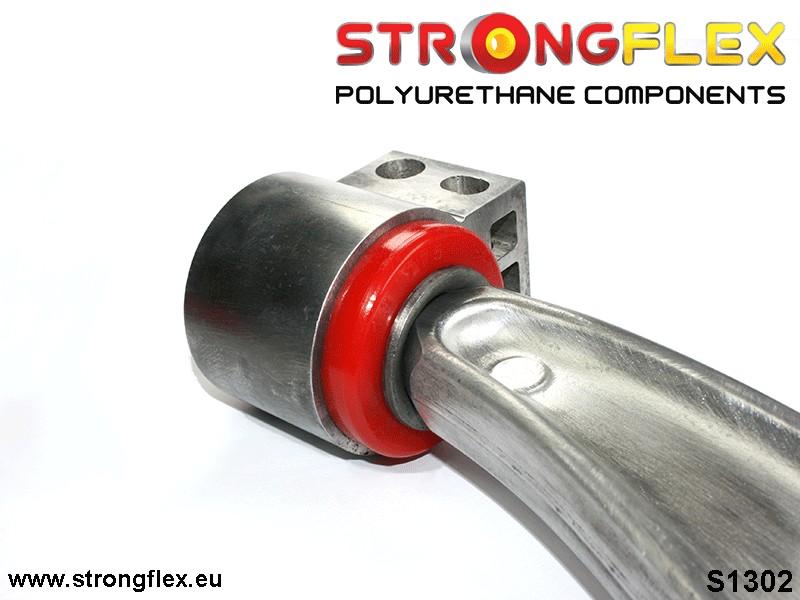

• S1302
• S1303

Notes

• There are two types of front stabilizer bushing 131776/131777. Before buying check the type of bush. See picture S1303

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 32

Hardness: 90Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
