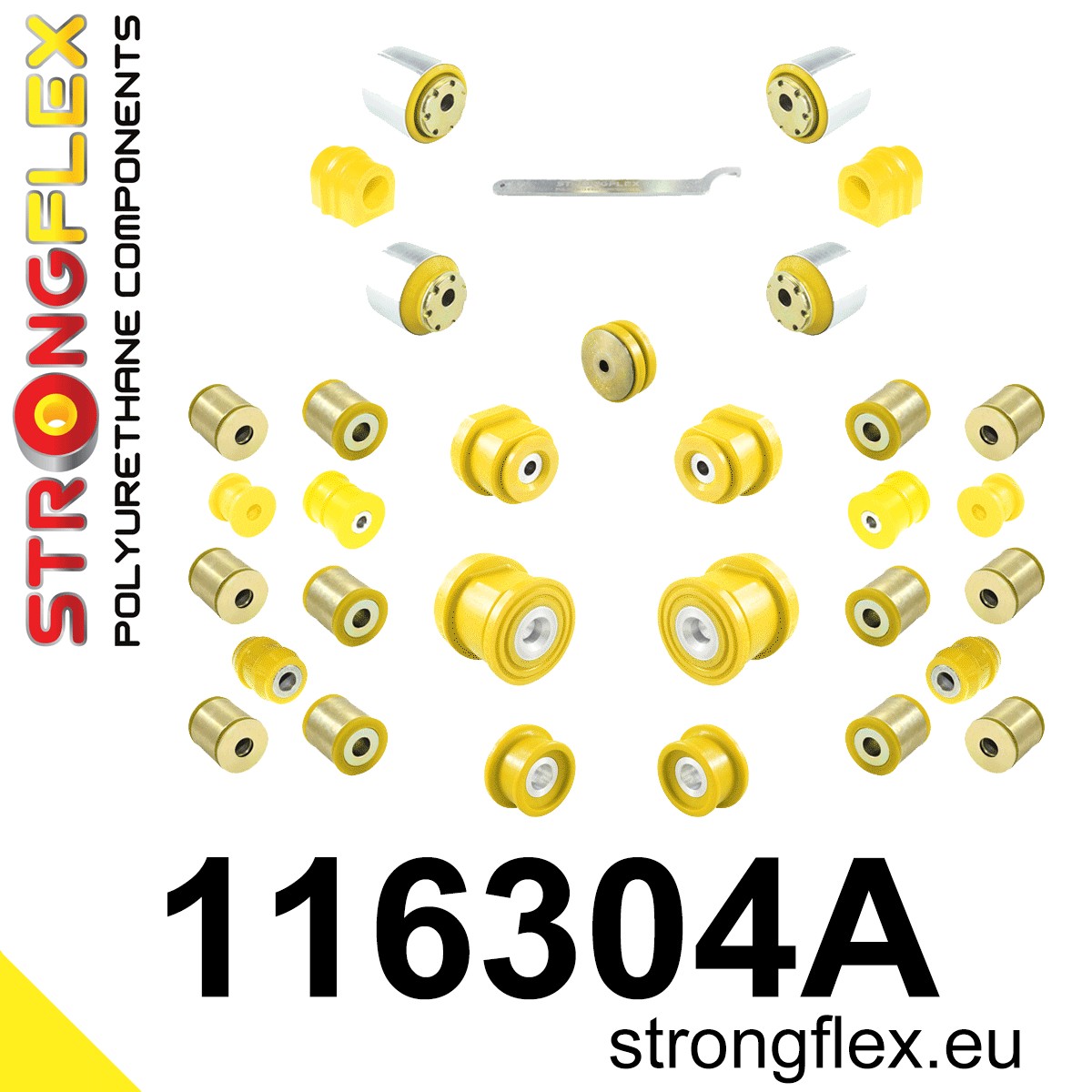

116304A: Full suspension polyurethane bush kit SPORT C-klasse W203

Reference: 116304A

Product name: Full suspension polyurethane bush kit SPORT

Fits to:

• Mercedes C W203 (00-07) RWD
• Mercedes CL203 (00-08)
• Mercedes CLC (08-11)
• Mercedes CLK W209 (02-10)

Include:

• 2x 111964A: Front anti roll bar bush SPORT
  or
• 2x 111965A: Front anti roll bar bush SPORT


• 2x 111966A: Front suspension - front bush SPORT
• 2x 111967A: Front suspension - rear bush SPORT
• 2x 111920A: Rear toe adjuster inner bush SPORT
• 6x 111818A: Rear control arm - inner bush SPORT
• 6x 111819A: Rear control arm - outer bush SPORT


• 2x 111820A: Rear track control arm - inner bush 33mm SPORT
  or
• 2x 111826A: Rear track control arm - inner bush 51mm SPORT


• 2x 111860A: Rear anti roll bar bush SPORT
• 2x 112105A: Rear subframe – front bush SPORT
• 2x 112106A: Rear subframe – rear bush SPORT
• 1x 112107A: Rear differential – front bush SPORT
• 2x 112108A: Rear differential – rear bush SPORT

Diagrams:

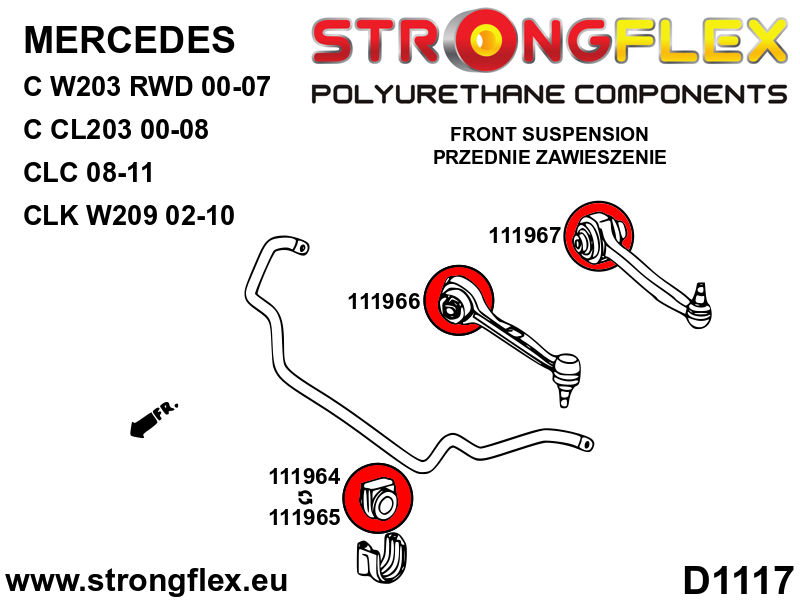

• D1117

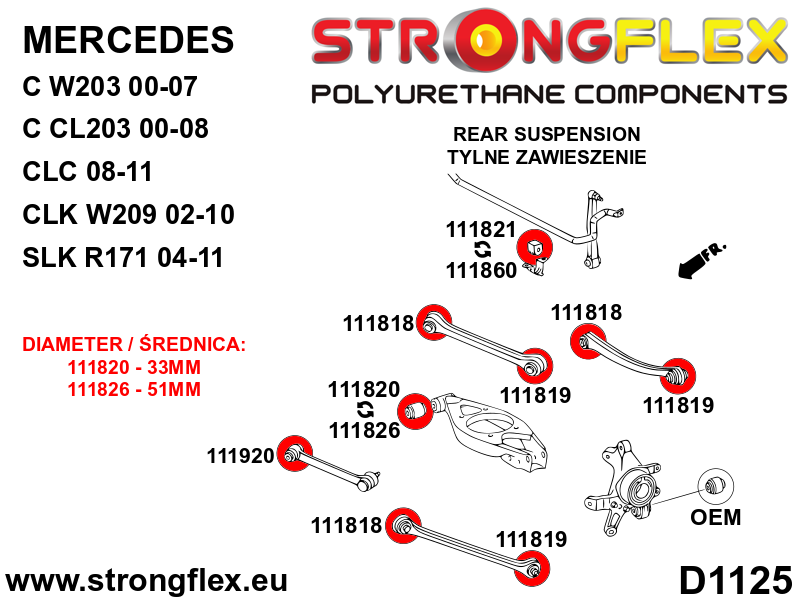

• D1125

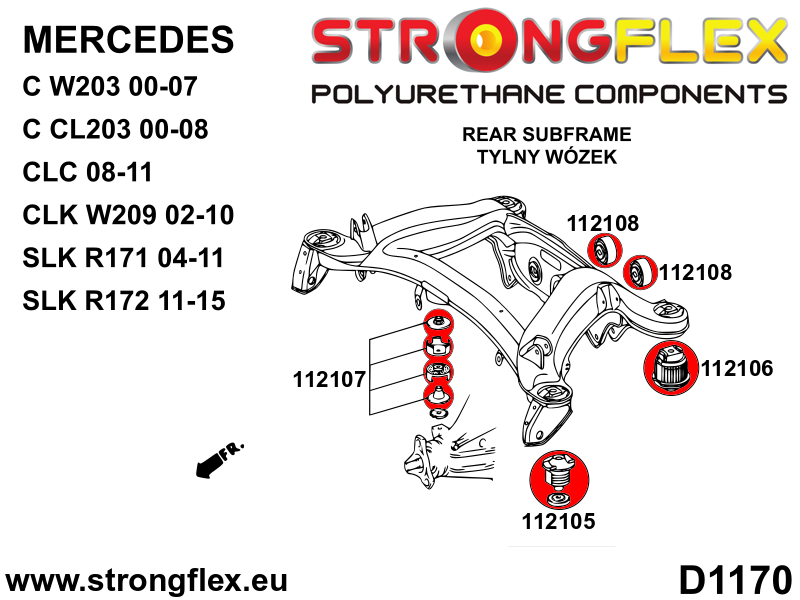

• D1170
• S1101

Notes

• Front Stabilizer Bushing Type:

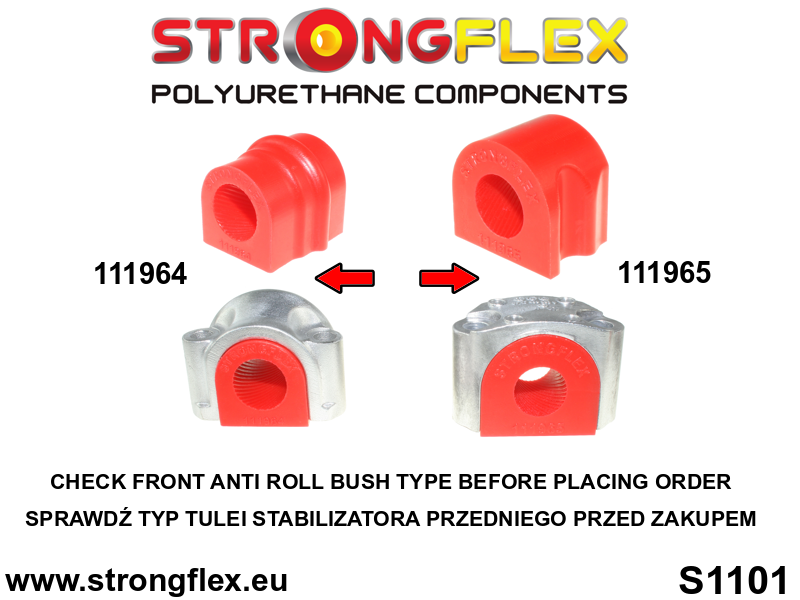

  There are two types of front stabilizer bushing 111964 / 111965. Please check the bushing type before purchasing. See photo S1101.


• Rear Lower Control Arm Bushing - Inner:
  There are two types of bushings (111820 bushing is 33mm in diameter or 111826 bushing is 51mm in diameter) Please check the bushing type before purchasing.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 31

Hardness: 90Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
