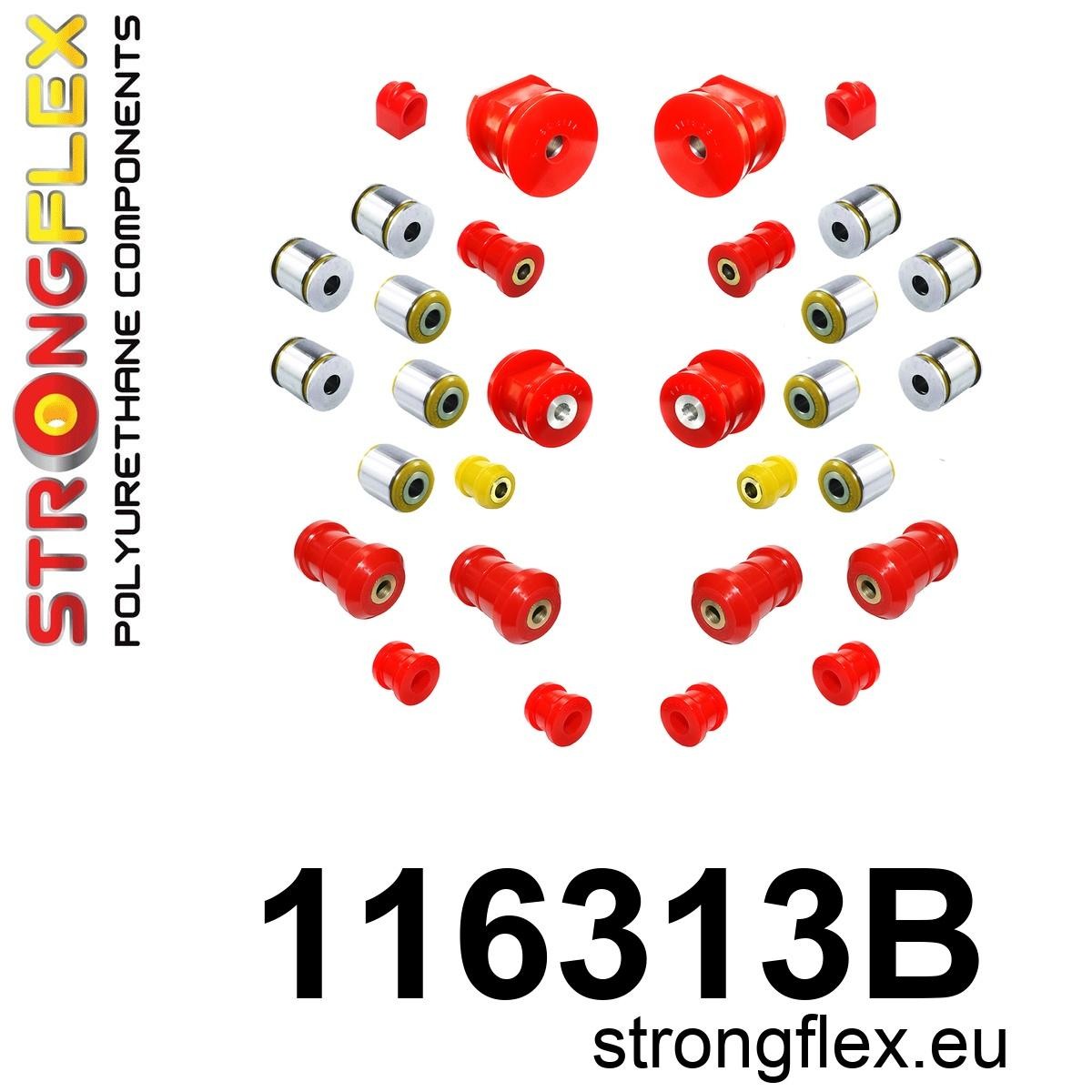

116313B: Full suspension bush kit

Reference: 116313B

Product name: Full suspension bush kit

Fits to:

• Mercedes SL R129 (89-01)
• Mercedes W201 (82-94) 190

Include:

• 2x 111814B: Front anti roll bar - inner bush
• 2x 111815B: Front anti roll bar - outer bush
• 4x 111816B: Front lower arm bush
• 2x 111817A: Rear toe adjuster inner bush SPORT
• 6x 111818A: Rear control arm - inner bush SPORT
• 6x 111819A: Rear control arm - outer bush SPORT
• 2x 111820B: Rear track control arm - inner bush 33mm
• 2x 111821B: Rear anti roll bar bush
• 2x 111822B: Rear subframe - front bush
• 2x 111823B: Rear subframe - rear bush

Diagrams:

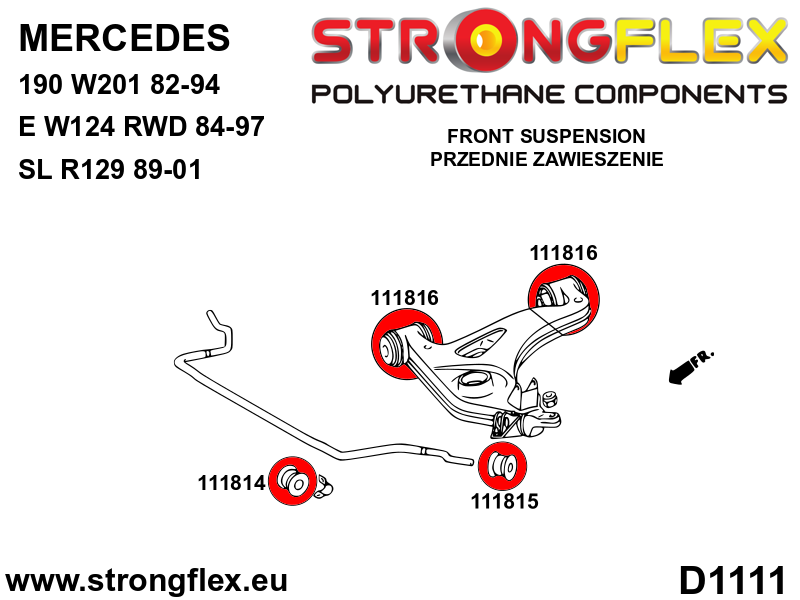

• D1111

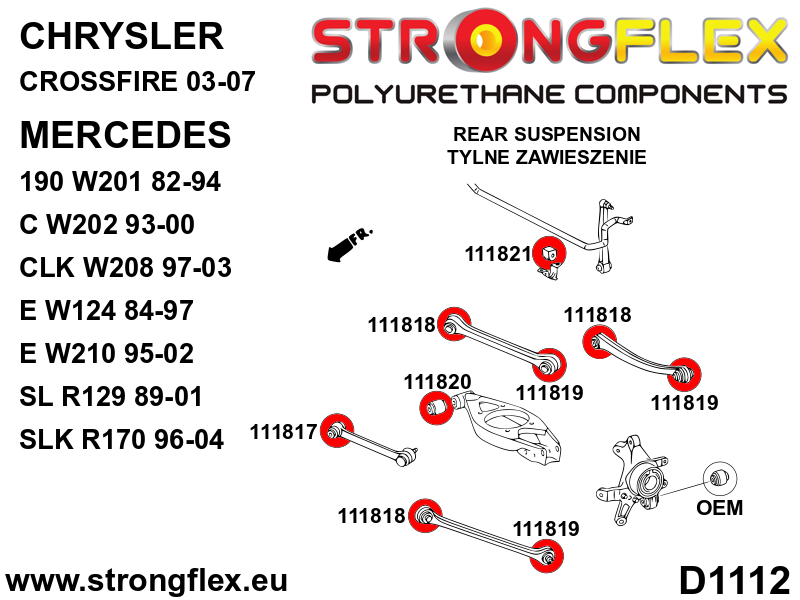

• D1112

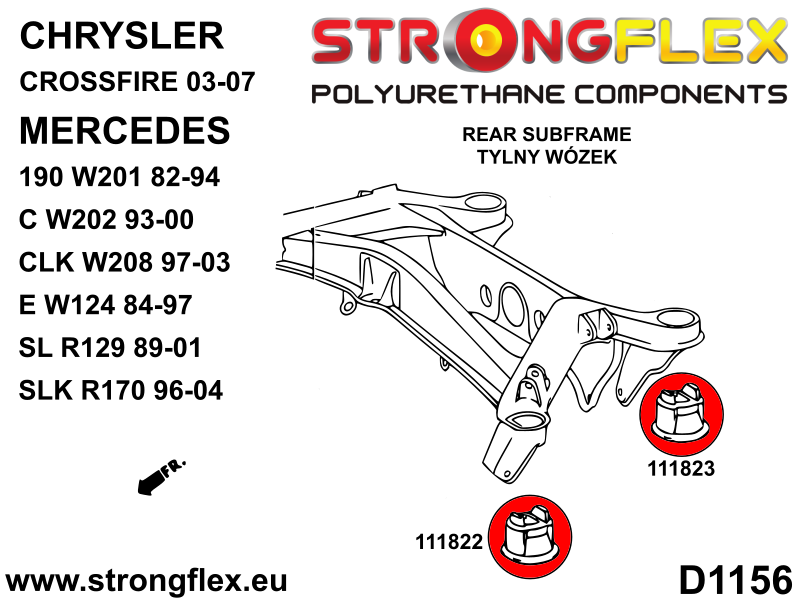

• D1156

Notes

• Some bushes in the kit are only available in 90ShA hardness (yellow) because the original rubber bush is made of a hard rubber compound. The use of the 80ShA hardness bush (red) will reduce the driving of the car to the original rubber bush.
• 111819 - During installation you should use the original 13mm reducer sleeve from an old wishbone.
• Choosing the diameter of the front anti roll bar bush 111814 and 111815, be sure to check out the inner and outer diameter of the anti roll bar.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 30

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
