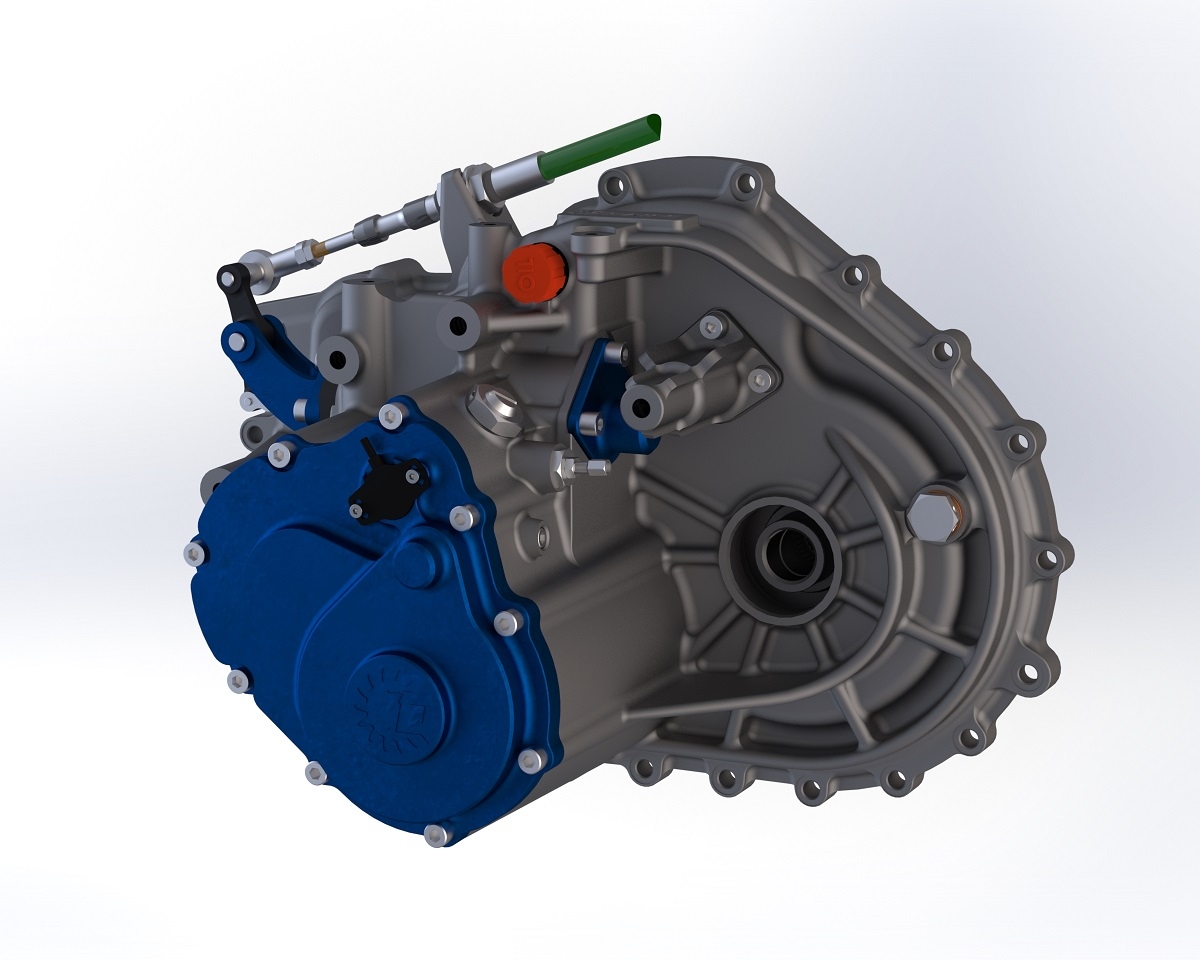

Ford Focus ST/RS Mk2 & Volvo M66 5 Speed Sequential Gearkit — high-quality Quaife product for motorsport and road use.
This product is available to purchase directly from Quaife.
**Donor gearbox must be supplied for assembly. This is not supplied in kit form**
Key features of the QKE45Z (Ford Focus ST/RS Mk2 & Volvo M66 5 Speed Sequential Gearkit):
Complete sequential conversion kit, compatible with both the Ford Focus ST & Volvo C30, and Ford Focus RS versions of the M66 gearbox
Also compatible with the AWD versions used in various Volvo applications
Gearkit reuses original bellhousing from donor gearbox
Drum style shift mechanism for fast, reliable gear changes
Retains OEM clutch, differential, driveshafts and mounts
Optional Quaife ATB differential (Focus ST & Volvo versions only)
Strengthened outer casing
5 wider than standard gears for additional strength
Choice of straight cut or helical gear ratios, and 2 straight cut & 1 helical final drive options
New generation of gearchange mechanism allows fitment into front or rear wheel drive configurations
Compatible with flatshift systems
Includes oil temperature sensor
Supplied with either a manual lever & cable or air actuator for paddleshift
Gear Ratios:
| 1st | 2nd | 3rd | 4th | 5th | |
| 2.833 | 2.067 | 1.566 | 1.263 | 1.087 | Straight Cut |
| 2.867 | 1.900 | 1.400 | 1.107 | 0.935 | Helical |
Final Drive Ratios:
| 3.941 | 3.500 | Straight Cut |
| 3.909 | | Helical |
