BMW E30 / E36 / E46 - RACE modular spindle (hardware) - E30 rear ABS sensor adapters

Wheel bearings, ABS sensor adapters, strut adapters and other hardware compatible with our BMW E30/E36/E46 RACE modular spindle

Most common hardware required for installation can be found here, more variations can be added by request:

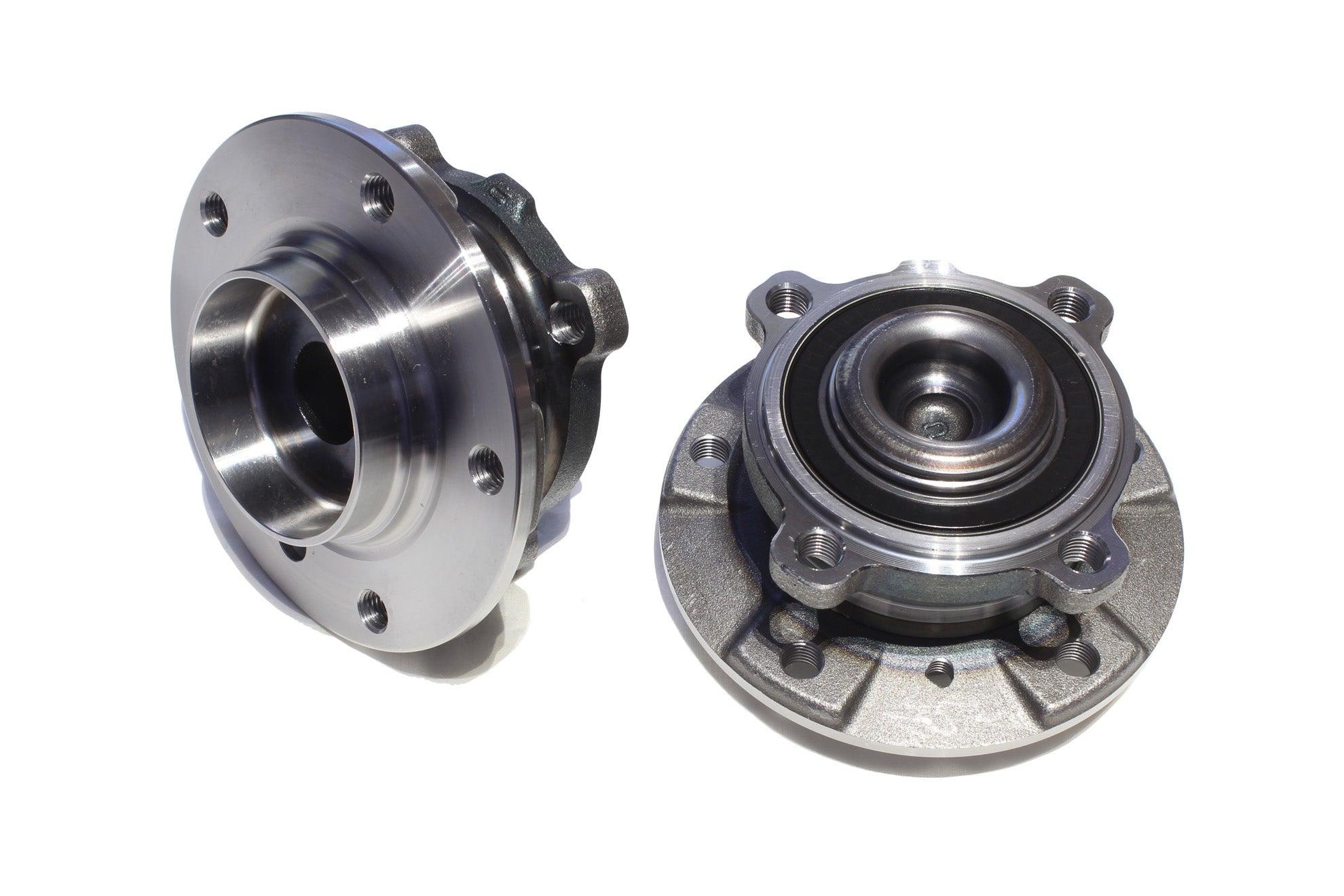

• E60 standard wheel bearing set, pair

  • OE part number 31226765601
  • Manufacturer part number FAG 713 6670 70
  • For Mk60 ABS systems

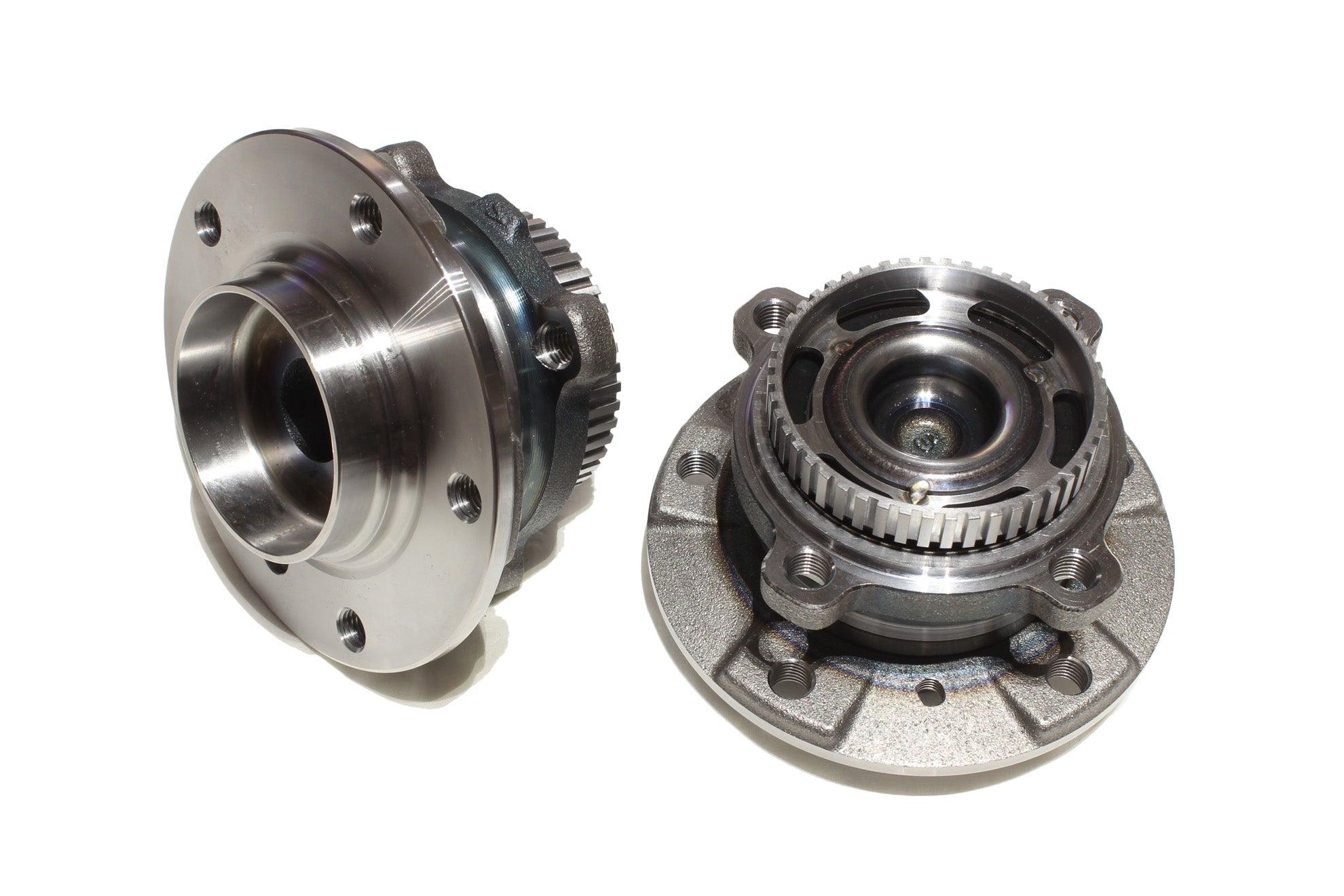

• E60 wheel bearing set with E30/E36/E46 ABS ring, pair

  • Manufacturer part number FAG 713 6670 70, customized by MRT Engineering
  • For Mk20 and older ABS systems as well as Bosch Motorsport M5 ABS which require 48 teeth steel ABS ring

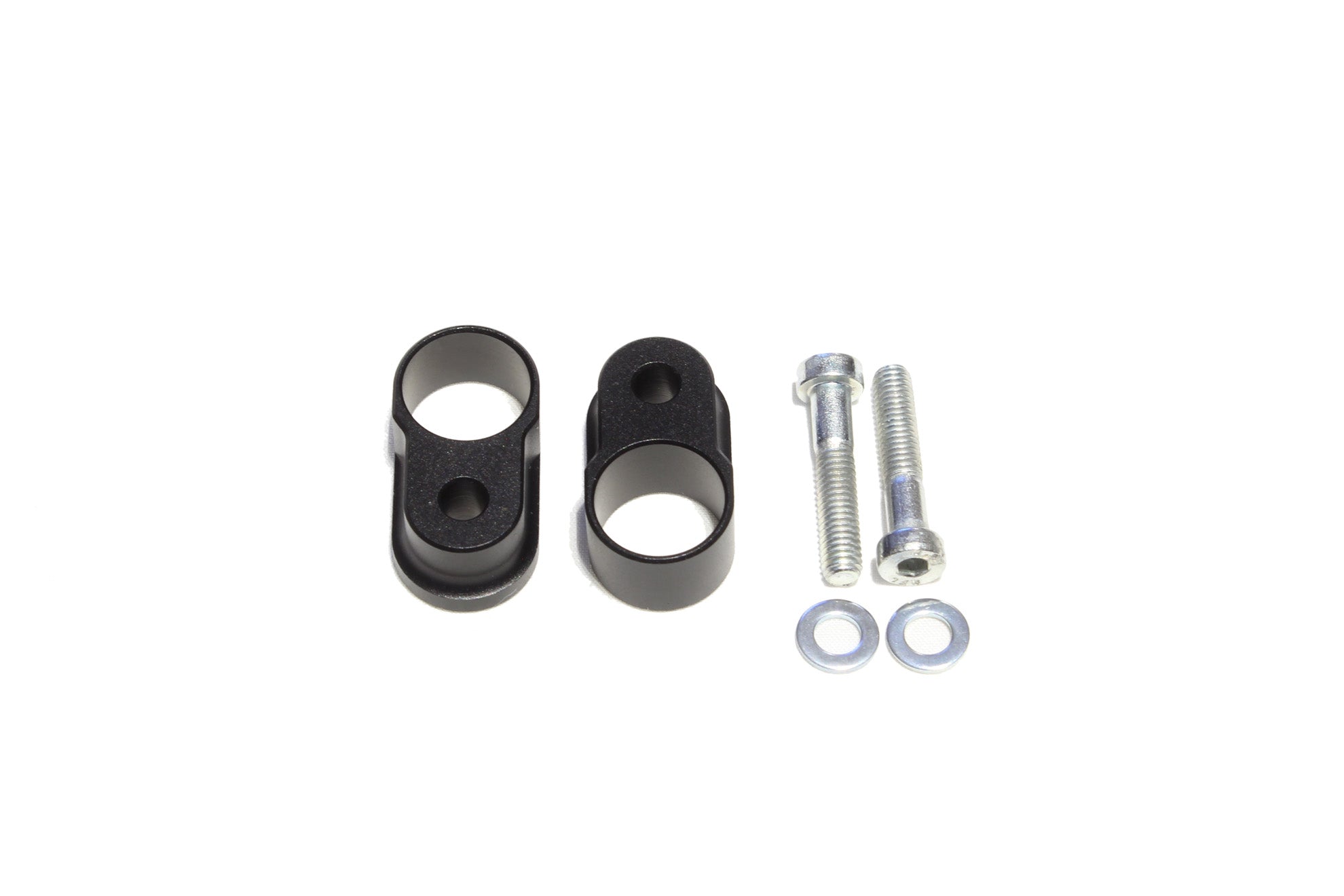

• E30 rear ABS sensor adapters, pair

  • Allows use of E30/E36 Compact/Z3 rear ABS sensors, BMW Part No. 34521155041, 34521182795, 34521164474
  • For Mk20 and older ABS systems with 48 teeth ABS ring

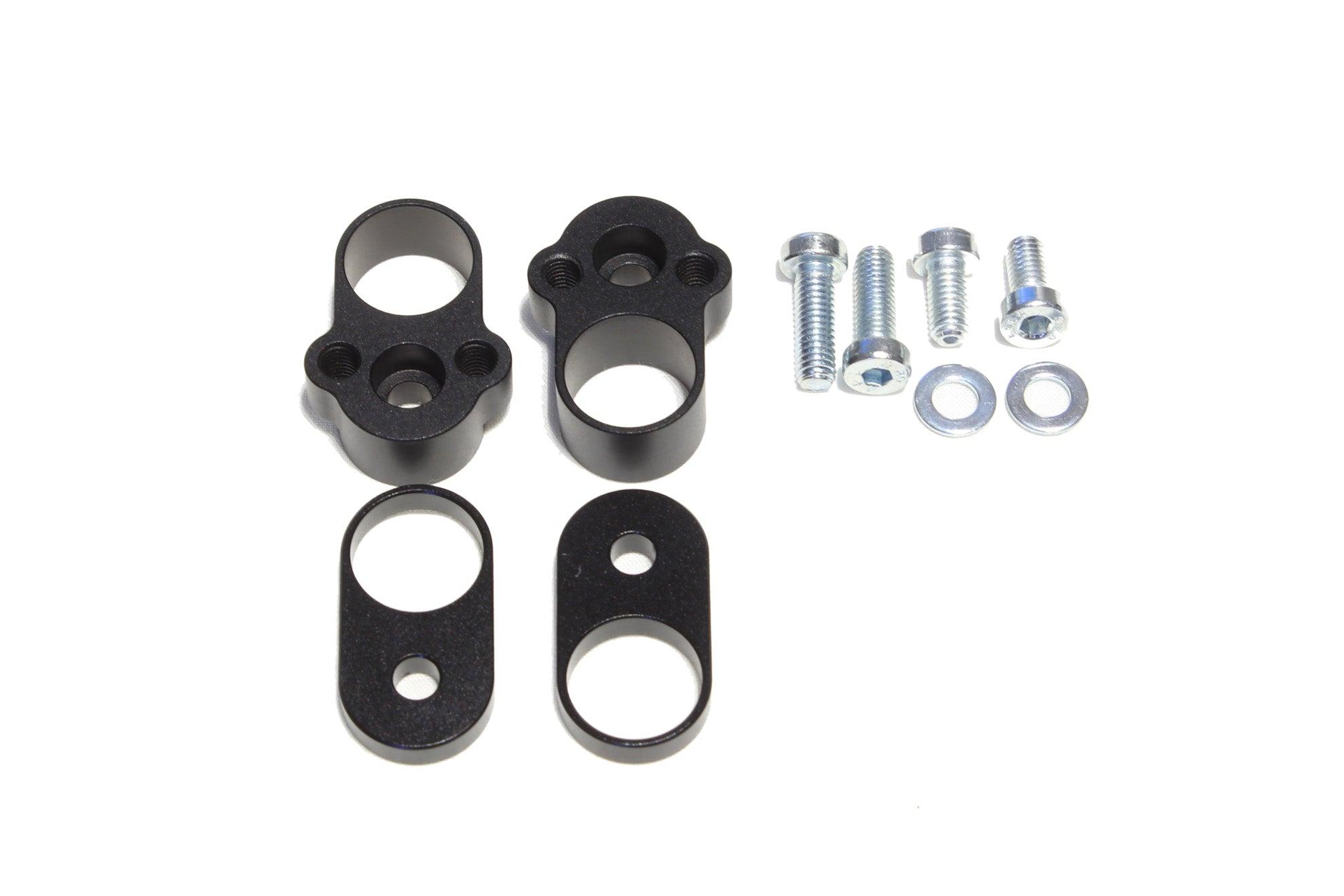

• E36/E46 rear ABS sensor adapters, pair

  • Allows use of E36/E46 rear ABS sensors, BMW Part No. 34521163028, 34521164370, 34526752683
  • For Mk20 and older ABS systems with 48 teeth ABS ring

• DF11s ABS sensor adapters, pair

  • Allows use of Bosch Motorsport DF11S ABS sensors Part No. 0265008022, 0 265 008 022-U5G
  • For Bosch Motorsport M5 ABS system
  • Requires use of 48 teeth ABS ring

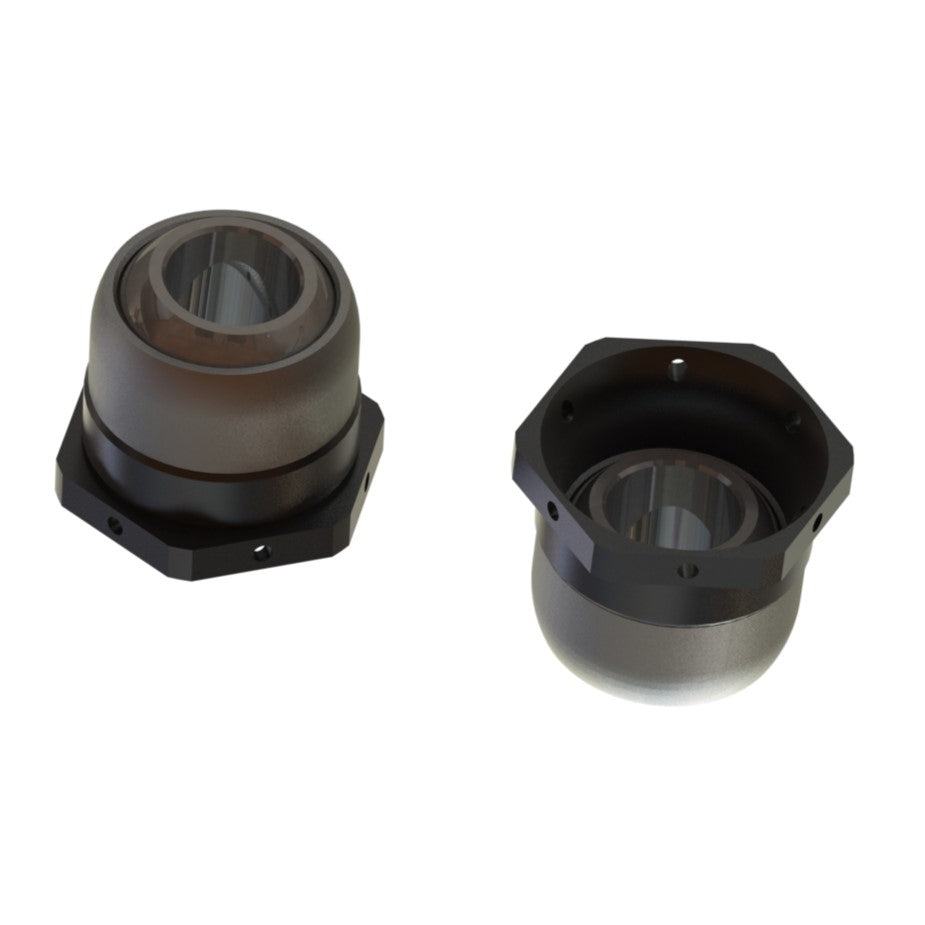

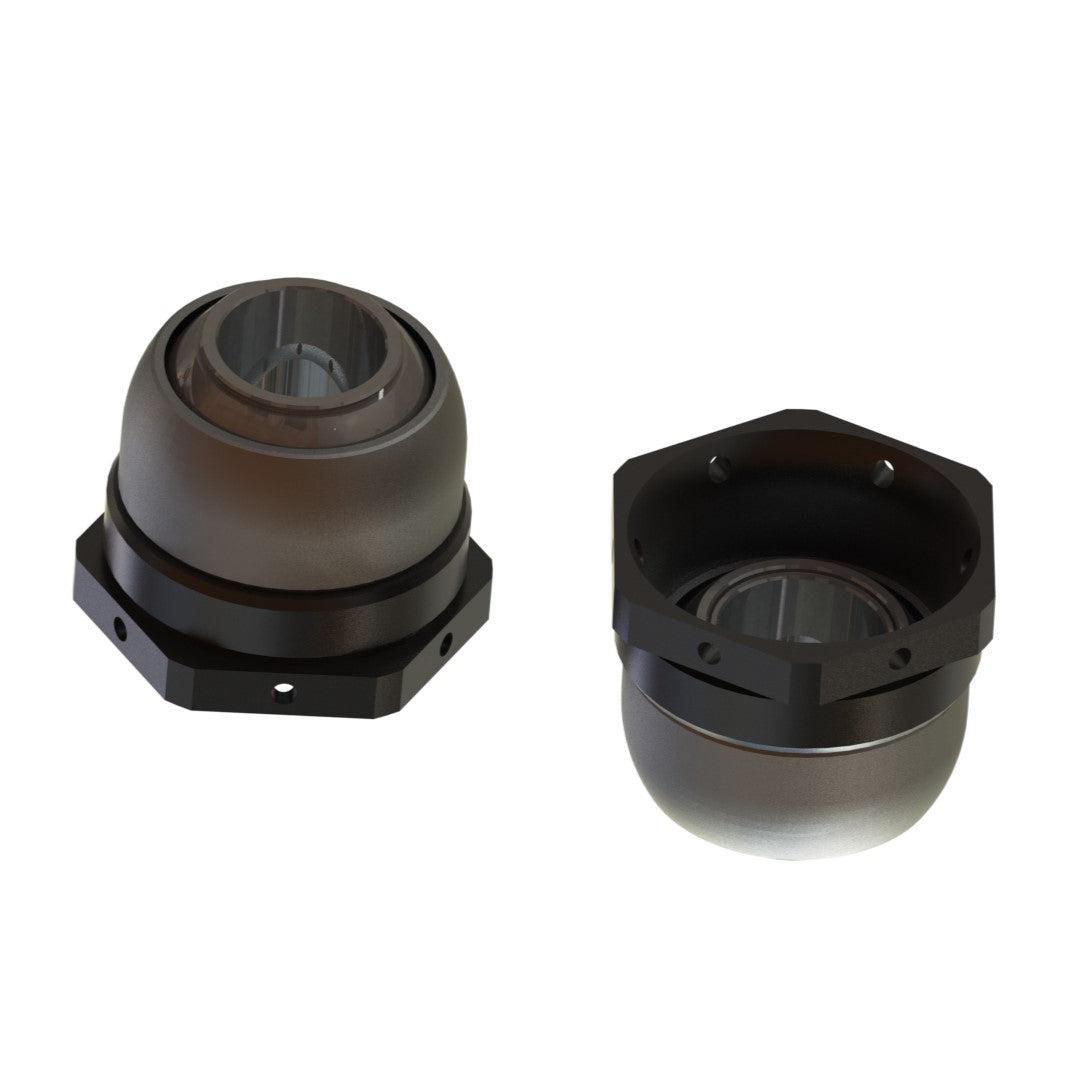

• 32mm outer joint kit for E30 M3 "Dorman" control arms, pair

  • Spherical bearing conversion for 16mm mounting stud
  • M33x1mm thread tap needed for installation, sold separately

• 33mm outer joint kit for E46 M3 stock control arms, pair

  • Spherical bearing conversion for 16mm mounting stud
  • M35x1,5mm thread tap needed for installation, sold separately

• 41mm outer joint kit for E30 non-M and E36 M3 stock control arms, pair

  • Spherical bearing conversion for 16mm mounting stud

• 48,5mm outer joint kit for E36 non-M and E46 non-M stock control arms, pair

  • Spherical bearing conversion for 16mm mounting stud

Why do you need one?

This hardware is made to adapt various struts, sensors, control arms etc. on our RACE modular spindles.

Does it fit my car?

###

Is it easy to install?

###

How about the lifetime and service of the kit?

###

We want to keep our customers 100% happy thus we've chosen to provide only the best value OE quality items from selected manufacturers.
