226245B: Front suspension and ream beam bush kit Golf 7 / Polo VI FWD

Reference: 226245B

Product name: Front suspension and ream beam bush kit

Fits to:

• Seat Córdoba II (02-09) 6L
• Seat Ibiza III (02-08) 6L


• Skoda Fabia I (00-08) 6Y
• Skoda Fabia II (07-14) 5J
• Skoda Roomster 5J (06-15)


• Volkswagen Fox 5Z (04-11)
• Volkswagen Polo IV (02-09) 9N

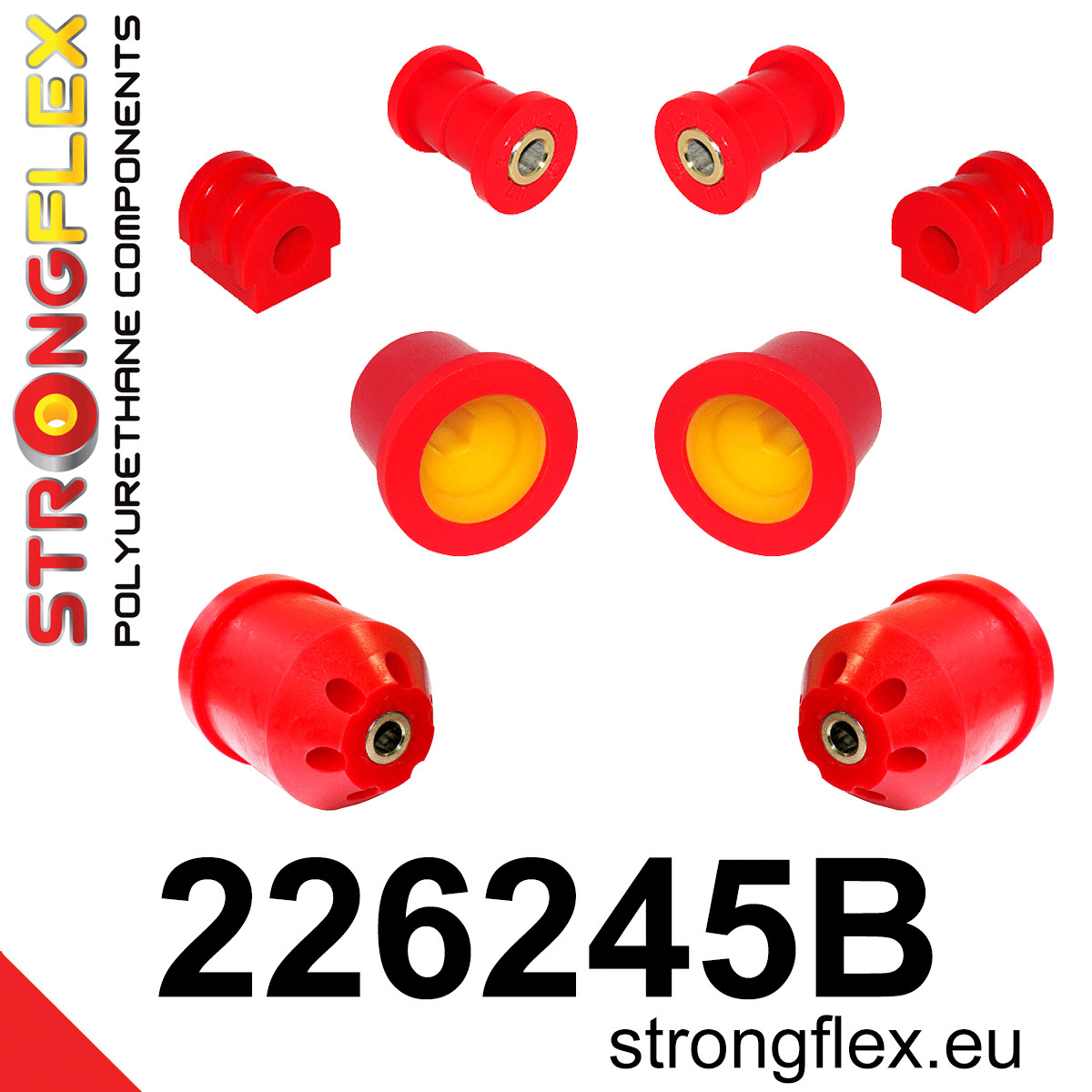

Include:

• 2x 221072B: Front wishbone - front bush 30mm


• 2x 221403B: Front wishbone rear bush
  or
• 2x 221667B: Front wishbone rear bush


• 2x 221561B: Front anti roll bar bush


• 2x 221245B: Rear subframe bush 72mm
  or
• 2x 221246B: Rear subframe bush 69mm

Diagrams:

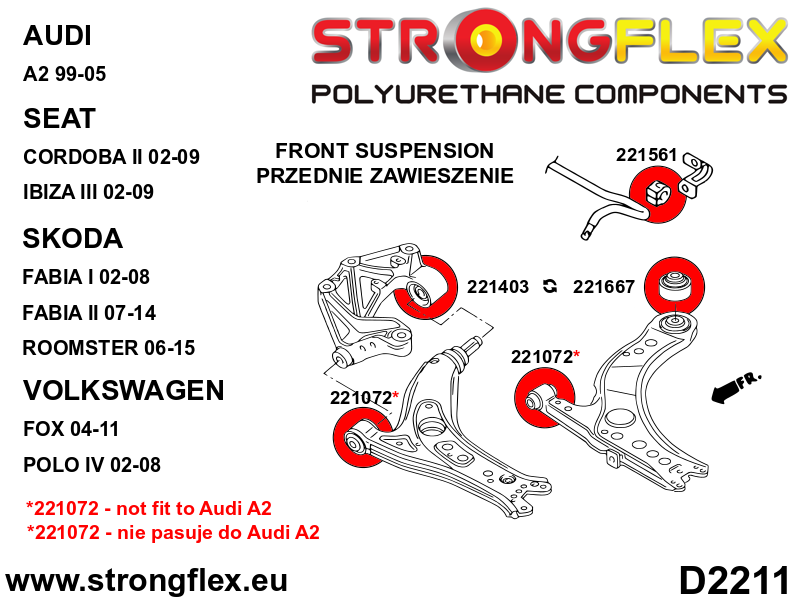

• D2211

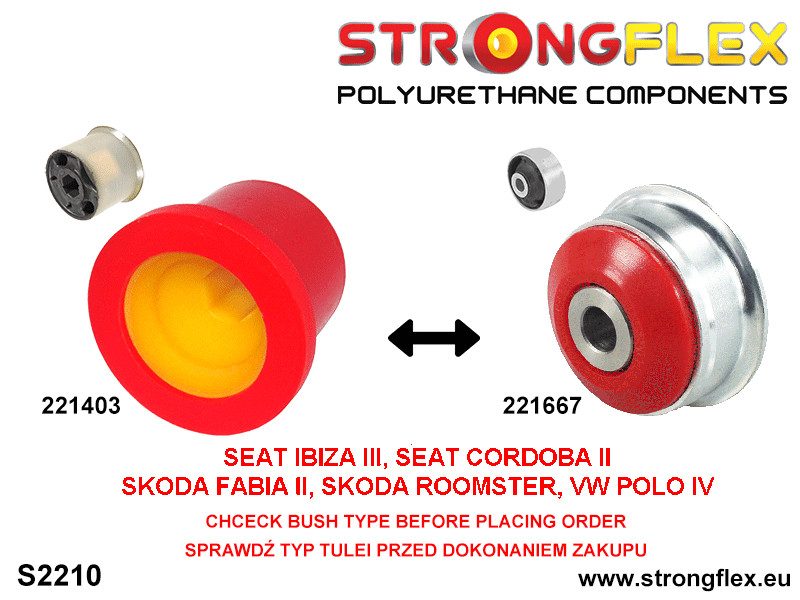

• S2210

Notes

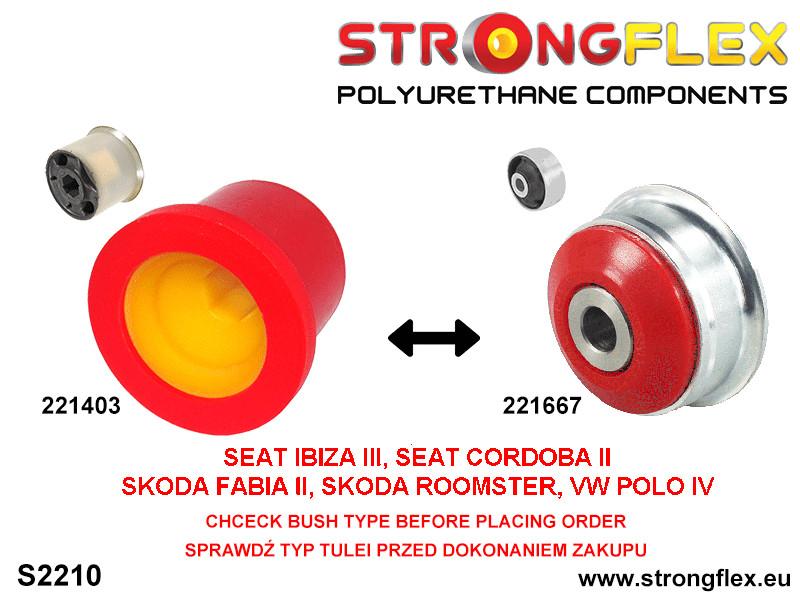

• For Seat Ibiza III, Seat Cordoba II, Skoda Fabia II, Skoda Roomster: there are two types of rear wishbone bush 221403/221667. See photo S2210.
  For Skoda Fabia I, Volkswagen Fox, Volkswagen Polo IV: there is one type of rear wishbone bush: 221403.


• Before purchasing, check what type of rear beam bushing you have in your car:
  221245 - diameter 72mm
  221246 - diameter 69mm

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 8

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
