Xtreme Performance - 230mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1800Nm 1-Series 135 i E82

Item No.: KBM23595-2E
Contact us for installation, availability or other possible clutch models.
(Price excluding VAT) 1.751,00
2.118,71
Add to wishlist
Article numbers
Stock
Stock:
  0   Items
Description

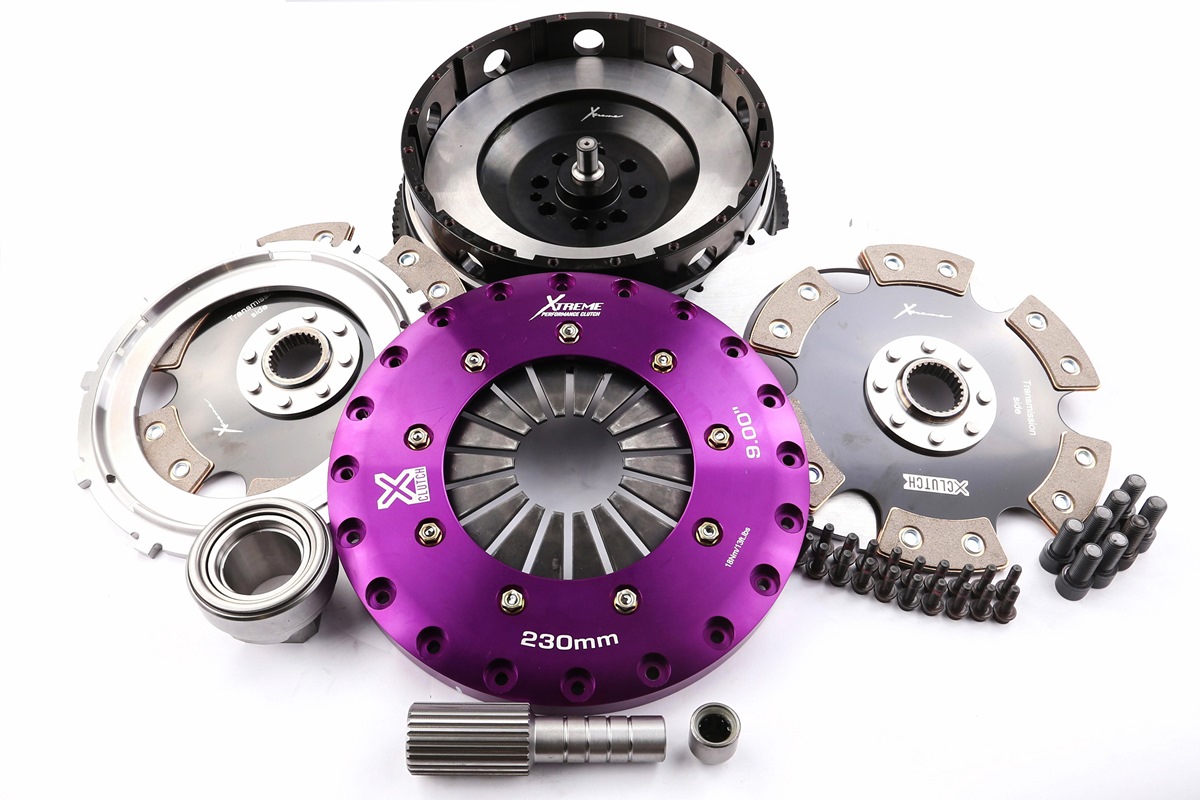

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.

The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.

Product Features:

  • Torque capacity 1800Nm
  • Kit contains everything you need for a successful installation + accessories
  • Push type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design
Flat Diaphragm Rolled Diaphragm
Clamping Force 1300kg 1300kg
Torque Rating 1800Nm 1800Nm
Bearing Contact Diameter 65mm FLAT BEARING
Bearing Load (@ 48mm) 180kg 150kg
Release Travel Required 7mm 7mm
Assembly Mass (without flywheel) 8.30kg 8.30kg
Disc Set Static Mass 2.25kg 2.25kg
Friction Thickness New 8mm (0.315") 8mm (0.315")
Friction Thickness Worn 7.5mm (0.295") 7.5mm (0.295")
Additional Information

Xtreme Motorsport

Clutch Disc Diameter (mm): 230

Clutch Disc Spline Count: 26

Clutch Disc Spline Diameter (mm): 35

Torque (Nm): 1830

Flywheel Step: +3.8mm

Design: Twin Plate

Stage: Multiplate - track use only

Tech Bulletins: TSB-166TSB-214TSB-269

Clamp Load: 1300Kg

Recommended for: Motorsport

Ring Gear Tooth count:

Additional information:

Fits:

- BMW/1-Series/135 i E82/2007-2013/2979cc | 225KW | 306HP | N54 B30 A (2007-2013) 8 Bolt Crank, Production date: until 12/2008

- BMW/1-Series/135 i E82/2007-2013/2979cc | 240KW | 326HP | N54 B30 A (2007-2013) 8 Bolt Crank, Production date: until 12/2008

- BMW/1-Series/135 i E88/2008-2013/2979cc | 225KW | 306HP | N54 B30 A (2008-2013) 8 Bolt Crank, Production date: until 12/2008

- BMW/3-Series/335 i E90/2006-2011/2979cc | 225KW | 306HP | N54 B30 A (2006-2011) 8 Bolt Crank, Production date: until 12/2008

- BMW/3-Series/335 i E91/2006-2012/2979cc | 225KW | 306HP | N54 B30 A (2006-2012) 8 Bolt Crank, Production date: until 12/2008

- BMW/3-Series/335 i E92/2006-2013/2979cc | 225KW | 306HP | N54 B30 A (2006-2013) 8 Bolt Crank, Production date: until 12/2008

- BMW/3-Series/335 i E93/2006-2013/2979cc | 225KW | 306HP | N54 B30 A (2006-2013) 8 Bolt Crank, Production date: until 12/2008

- BMW/3-Series/335 i xDrive E90/2008-2011/2979cc | 225KW | 306HP | N54 B30 A (2008-2011) 8 Bolt Crank, Production date: until 12/2008

- BMW/3-Series/335 i xDrive E91/2008-2012/2979cc | 225KW | 306HP | N54 B30 A (2008-2012) 8 Bolt Crank, Production date: until 12/2008

- BMW/3-Series/335 i xDrive E92/2008-2013/2979cc | 225KW | 306HP | N54 B30 A (2008-2013) 8 Bolt Crank, Production date: until 12/2008

- BMW/3-Series/335 xi E90/2007-2008/2979cc | 225KW | 306HP | N54 B30 A (2007-2008) 8 Bolt Crank,

- BMW/3-Series/335 xi E91/2007-2008/2979cc | 225KW | 306HP | N54 B30 A (2007-2008) 8 Bolt Crank,

- BMW/3-Series/335 xi E92/2007-2010/2979cc | 225KW | 306HP | N54 B30 A (2007-2010) 8 Bolt Crank, Production date: until 12/2008
