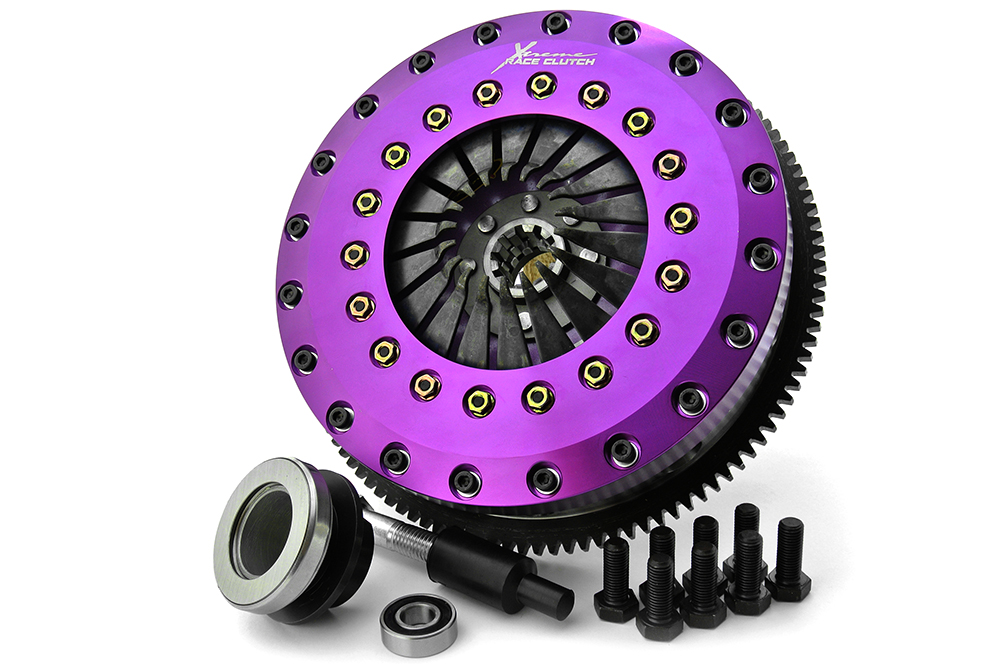

Xtreme Performance - 230mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1800Nm 3-Series M3 E46

Name: Xtreme Performance - 230mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1800Nm 3-Series M3 E46
Brand: Xtreme Clutch
Price: 2058.04 EUR
Availability: InStock

€2.058,04

Price excluding VAT: €1.700,86

Stock:

0 Items

Item No.:

KBM23550-2E

SKU:

Xtreme Performance - 230mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1800Nm 3-Series M3 E46

More Xtreme Clutch | More Flywheel and clutch kits

Xtreme Clutch 230mm twin plate kit

The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.
The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.

Product Features:

Torque capacity 1800Nm
Kit contains everything you need for a successful installation + accessories

Push type billet alloy cover Low pedal effort

4140 Chromoly pressure & intermediate plates

Chromoly adapter ring

Low inertia

Serviceable components

SFI certified design

Flat Diaphragm Rolled Diaphragm

Clamping Force 1300kg 1300kg

Torque Rating 1800Nm 1800Nm

Bearing Contact Diameter 65mm FLAT BEARING

Bearing Load (@ 48mm) 180kg 150kg

Release Travel Required 7mm 7mm

Assembly Mass (without flywheel) 8.30kg 8.30kg

Disc Set Static Mass 2.25kg 2.25kg

Friction Thickness New 8mm (0.315") 8mm (0.315")

Friction Thickness Worn 7.5mm (0.295") 7.5mm (0.295")

Xtreme Motorsport

Clutch Disc Diameter (mm): 230
Clutch Disc Spline Count: 10
Clutch Disc Spline Diameter (mm): 35
Torque (Nm): 1830
Flywheel Step: +3.8mm
Design: Twin Plate
Stage: Multiplate - track use only
Tech Bulletins: TSB-166 TSB-269
Clamp Load: 1350Kg
Recommended for: Motorsport
Ring Gear Tooth count:
Additional information:

Fits:
- BMW/3-Series/M3 E46/2000-2006/3246cc | 252KW | 343HP | S54 B32 (326S4) (2000-2006) ,
- BMW/3-Series/M3 E46/2001-2006/3246cc | 252KW | 343HP | S54 B32 (326S4) (2001-2006) ,
- BMW/3-Series/M3 CSL E46/2003-2003/3246cc | 265KW | 360HP | S54 B32 (326S4) (2003-2003) ,
