Description
Tailor-made and suitable for your BMW F90 M5
Most vehicles only have a hint of cooling on the front axle and usually no cooling at all on the rear axle. Porsche has recognized, among other things, that cooling the brake is essential for the performance, durability and service life of the brake and its components.

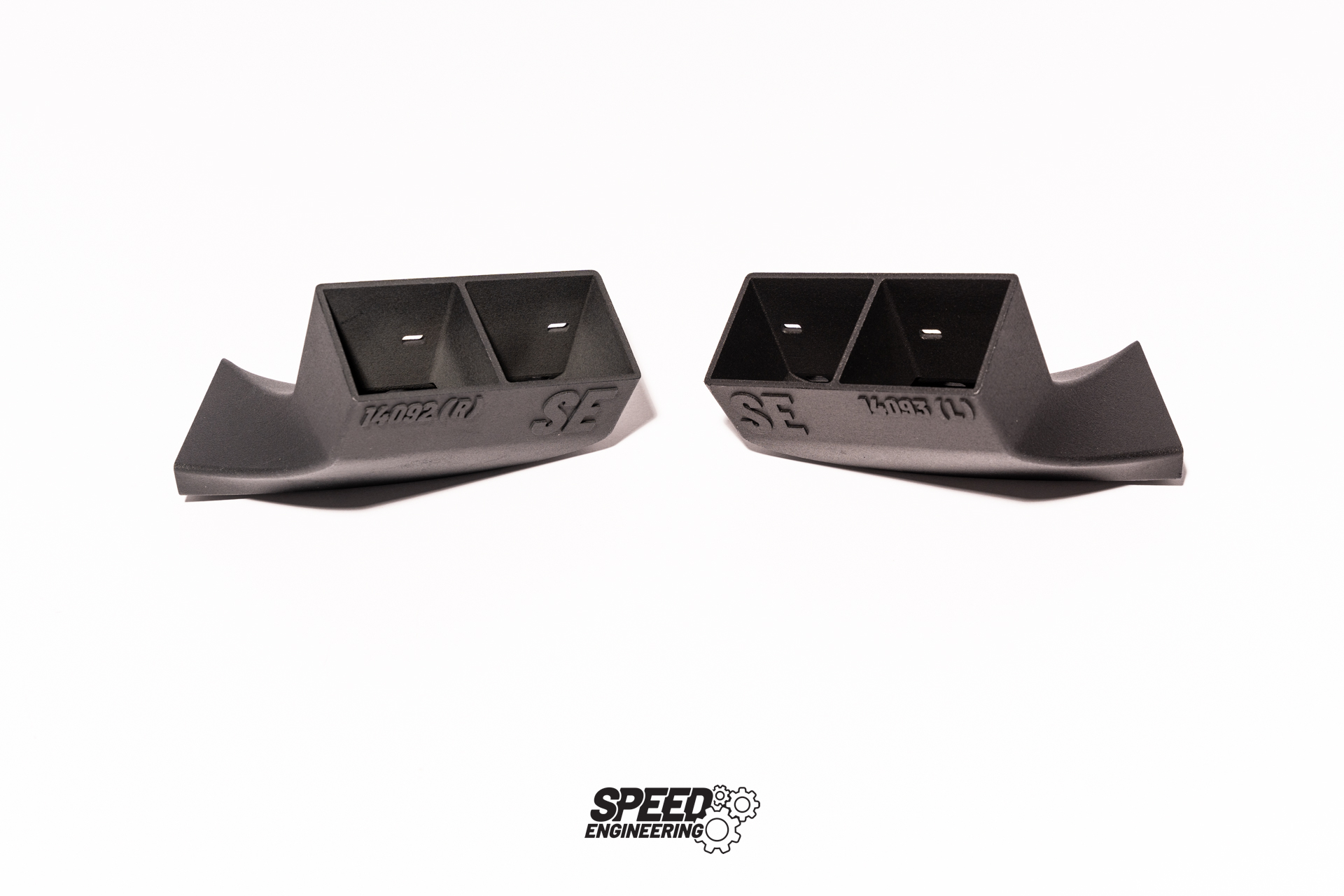

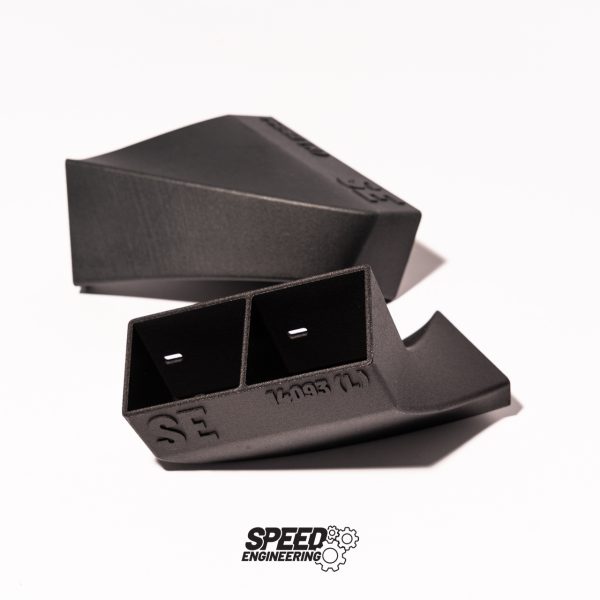

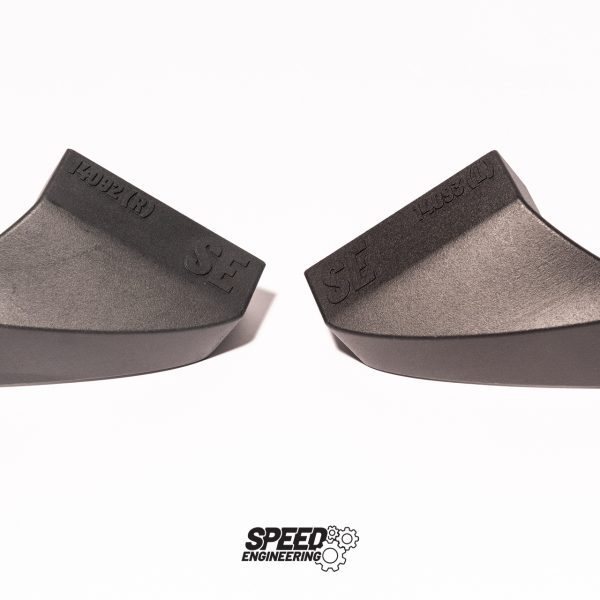

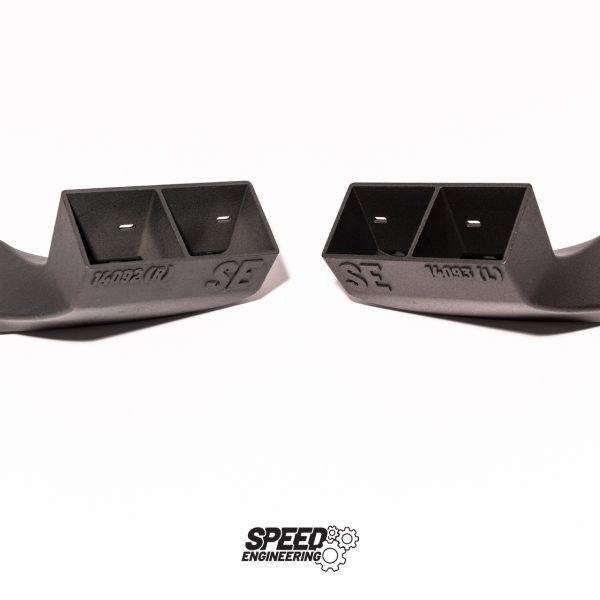

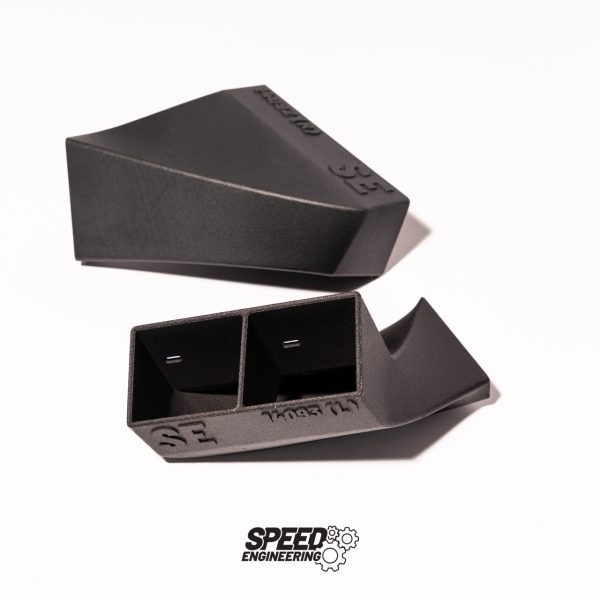

The geometry of the components is designed so that they fit on the wishbone of the F90 and Plug/Play with cable ties and can be assembled without a lifting platform or dismantling the wheels. The inlets are designed flat so that they are not intended to represent the lowest point of the vehicle and redirect the air flow under the vehicle and direct it specifically to the center of the rotating wheel.
The components are made of and contain a PA12 plastic already slots for fastening. The continuous taper between the inlet and the outlet leads to the acceleration of the air flow while maintaining the same volume and thus to a targeted outflow of air.
What about the rear axle?
It is not It is possible to cover every vehicle and every axle with a tailor-made solution and that is why we have developed a universal cooling system and tested it intensively on a wide variety of vehicles over a period of months. You can find the product here: Cooling for the rear axle
The following diagram shows the measurement on the rear axle with the anchor plate still installed:
A difference of sometimes 50??C in the peak over that Measuring tape can be seen here. However, if you drill holes in the anchor plate or remove it, you have maximum performance with a delta of up to 200??C. You can view the report under the following link: Documentation
Included in delivery:
1x brake cooling L
1x brake cooling R
4x cable ties
This item is suitable for
BMW M5 F90
Motorsport parts without street approval We explicitly point out that none of our products offered for sale are originals Vehicle parts are from the vehicle manufacturers BMW AG, M GmbH, MINI, VAG or other vehicle manufacturers. Naming the vehicle brands and models only serves to find the product and assign it to the appropriate vehicle type.
