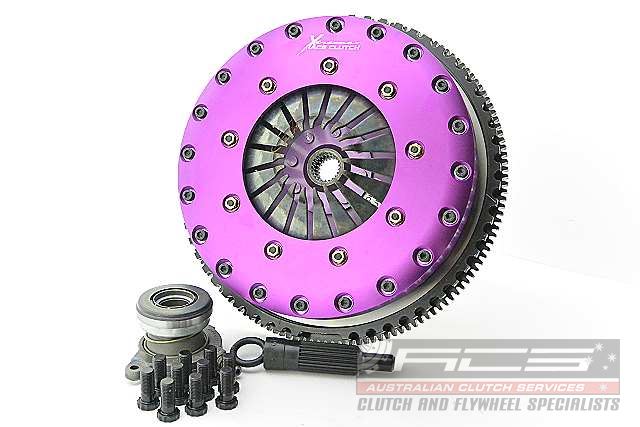

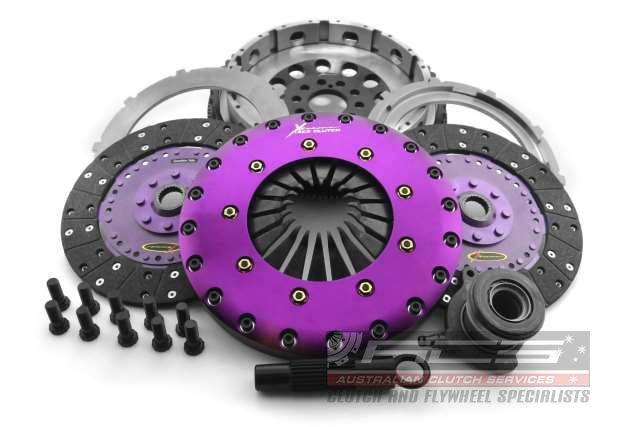

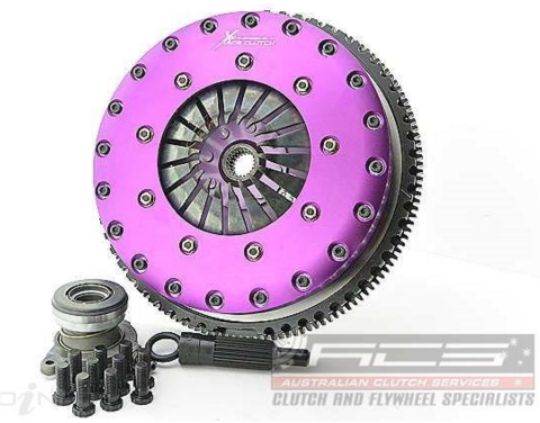

Xtreme Performance - 230mm Organic Twin Plate Clutch Kit Incl Flywheel & CSC 1200Nm FOCUS II 2.5 ST

1.894,39
(Price excluding VAT): 1.565,61
Stock:
0 Items
Item No.:
KFD23648-2G

Xtreme Performance - 230mm Organic Twin Plate Clutch Kit Incl Flywheel & CSC 1200Nm FOCUS II 2.5 ST

Contact us for installation, availability or other possible clutch models.

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower street application.

The Xtreme 230mm Twin Plate Organic Clutch is the ultimate clutch solution for very high horsepower street vehicles. The 230mm range offers an exceptional torque capacity whilst retaining a lightweight design. Each 230mm kit includes a lightweight alloy pressure plate, choice of friction discs, performance flywheel and associated hardware including bearing, bolts and alignment tool. Xtreme Clutch 230mm upgrades have been designed to allow for extensive clutch operation options with internal hydraulic release bearings and pull-push conversions available for a variety of vehicles.

Product Features:

  • Torque capacity 1200Nm
  • Kit contains everything you need for a successful installation + accessories
  • Push type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design

Xtreme Motorsport

Clutch Disc Diameter (mm): 230

Clutch Disc Spline Count: 23

Clutch Disc Spline Diameter (mm): 26

Torque (Nm): 1200

Flywheel Step: +3.8mm

Design: Twin Plate

Stage: Multiplate - street use only

Tech Bulletins: TSB-166TSB-167

Clamp Load: 1300kg

Recommended for: High horsepower street driven vehicles

Ring Gear Tooth count:

Additional information:

Fits:

- FORD/FOCUS II/2.5 ST/2005.10-2012.09/HYDA 2522 Petrol 166 kW 225 BHP (2005.10 - 2012.09) ,

- FORD/MONDEO IV/2.5/2007.03-2012.12/HUBA 2521 Petrol 162 kW 220 BHP (2007.03 - 2012.12) ,

- FORD/MONDEO IV/2.5/2007.03-2015.01/HUBA 2521 Petrol 162 kW 220 BHP (2007.03 - 2015.01) ,

- FORD/MONDEO liftback (MA, MB, MC)/XR5 Turbo/2007.03-2015.01/HUBA 2521 Petrol 162 kW 220 BHP (2007.03 - 2015.01) ,

- FORD/S-MAX (WA6)/2.5 ST/2006.05-2014.12/HUWA 2521 Petrol 162 kW 220 BHP (2006.05 - 2014.12) ,

- VOLVO/C30 (533)/T5/2006.10-2012.12/B 5254 T3 2521 Petrol 162 kW 220 BHP (2006.10 - 2012.12) ,

- VOLVO/C30 (533)/T5/2007.03-2012.12/B 5254 T7 2521 Petrol 169 kW 230 BHP (2007.03 - 2012.12) ,

- VOLVO/C30 (533)/T5/2007.10-2013.12/B 5254 T7 2521 Petrol 184 kW 250 BHP (2007.10 - 2013.12) ,

- VOLVO/S40 II (544)/T5/2004.01-2007.12/B 5254 T3 2521 Petrol 162 kW 220 BHP (2004.01 - 2007.12) ,

- VOLVO/S40 II (544)/T5 AWD/2004.04-2007.12/B 5254 T3 2521 Petrol 162 kW 220 BHP (2004.04 - 2007.12) ,

- VOLVO/V50 (545)/T5/2004.04-2007.12/B 5254 T3 2521 Petrol 162 kW 220 BHP (2004.04 - 2007.12) ,

- VOLVO/V50 (545)/T5 AWD/2004.04-2007.12/B 5254 T3 2521 Petrol 162 kW 220 BHP (2004.04 - 2007.12) ,

- VOLVO/V50 (545)/T5 AWD/2007.03-2010.12/B 5254 T7 2521 Petrol 169 kW 230 BHP (2007.03 - 2010.12) ,

- FORD/FOCUS II/2.5 RS/2009-2012/JZDA 2521 Petrol 224 kW 305 BHP (2009 - 2012) ,
