Clutch Kit - Xtreme outback Heavy Duty Organic Clutch Kit Incl CSC 830Nm 1550Kg RANGER 2.2 TDCi

1.426,72
(Price excluding VAT): 1.179,11
Stock:
0 Items
Item No.:
KFD27412-1A

Clutch Kit - Xtreme outback Heavy Duty Organic Clutch Kit Incl CSC 830Nm 1550Kg RANGER 2.2 TDCi

Contact us for installation, availability or other possible clutch models.
Xtreme Outback - Heavy duty sprung organic kit /-1A
Recommended for: Vehicles with minor performance modifications, are daily driven but also used off-road and vehicles that tow regularly.

Heavy duty organic clutch kit provides excellent driveability along with an approximate 15-40% increase in clamp force (application specific). These clutch kits are mainly used in street vehicles with larger wheels or performance upgrades as well as vehicles that are regularly used off-road or tow at the limit of their tow capacity.

Specifications:
  • Torque capacity 830Nm
  • https://3cerp.eu/api/file/whatsinthebox_xo.jpg
  • Clamp load 1550Kg Increased over standard
  • Organic Friction Discs
  • Heavy Duty Pressure Plate
  • Kit contains everything you need for a successful installation + accessories

Xtreme Outback
Designed and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

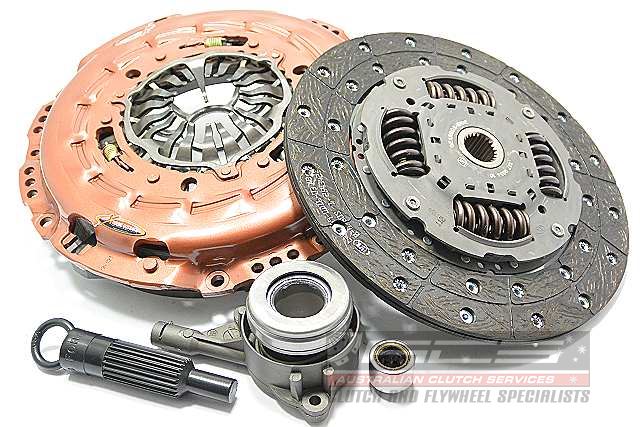

What's in the Box?

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Xtreme Outback

Torque (Nm): 830

Clamp Load: 1550KG

Flywheel Step: -31.25mm

Clutch Disc Diameter (mm): 273

Clutch Disc Spline Count: 23

Clutch Disc Spline Diameter (mm): 26

Recommended for: Street Performance, Heavily Loaded or Tow Vehicles

Design: Single Plate

Diameter [mm]: 273

Stage: Stage 1

Tech Bulletins: TSB-167

Tech Bulletins: TSB-176

Tech Bulletins: TSB-178

Fits:

- FORD/RANGER/2.2 TDCi/2011.11-/GBVAJQJ, ENQJ 2198 Diesel 110 kW 150 BHP (2011.11 -) ,

- FORD/RANGER/2.2 TDCi/2011.04-/GBVAJQW, ENQW 2198 Diesel 92 kW 125 BHP (2011.04 -) ,

- FORD/RANGER/2.2 TDCi/2015.05-/T22DD0P 2198 Diesel 118 kW 160 BHP (2015.05 -) ,

- FORD/RANGER/2.2 TDCi/2015.05-/T22DD0P 2198 Diesel 96 kW 131 BHP (2015.05 -) ,

- FORD/RANGER/2.2 TDCi 4x4/2011.04-/GBVAJQJ, ENQJ 2198 Diesel 110 kW 150 BHP (2011.04 -) ,

- FORD/RANGER/2.2 TDCi 4x4/2015.05-/GBVAJQJ, T22DD0P 2198 Diesel 118 kW 160 BHP (2015.05 -) ,

- FORD/RANGER/2.2 TDCi 4x4/2011.04-/GBVAJQW, ENQW 2198 Diesel 92 kW 125 BHP (2011.04 -) ,

- FORD/RANGER/2.2 TDCi 4x4/2015.05-/T22DD0P 2198 Diesel 96 kW 131 BHP (2015.05 -) ,

- FORD/RANGER/3.2 TDCi 4x4/2011.04-/SAFA, SA2R, SA2S, SA2W, ENSA 3198 Diesel 147 kW 200 BHP (2011.04 -) ,

- FORD/RANGER (PX)/2.2 TDdi/2011.11-2015.06/P4-AT 2198 Diesel 110 kW 150 BHP (2011.11 - 2015.06) ,

- FORD/RANGER (PX)/2.2 TDdi/2015.06-/P4-AT 2198 Diesel 118 kW 160 BHP (2015.06 -) ,

- FORD/RANGER (PX)/2.2 TDdi 4x4/2011.11-2015.06/P4-AT 2198 Diesel 110 kW 150 BHP (2011.11 - 2015.06) ,

- FORD/RANGER (PX)/2.2 TDdi 4x4/2015.06-/P4-AT 2198 Diesel 118 kW 160 BHP (2015.06 -) ,

- FORD/RANGER (PX)/3.2 TDdi 4x4/2011.11-/P5-AT 3198 Diesel 147 kW 200 BHP (2011.11 -) ,

- FORD/RANGER pick-up (PX)/2.2 TDdi/2011.11-2015.06/P4-AT 2198 Diesel 110 kW 150 BHP (2011.11 - 2015.06) ,

- FORD/RANGER pick-up (PX)/2.2 TDdi/2015.06-/P4-AT 2198 Diesel 118 kW 160 BHP (2015.06 -) ,

- FORD/RANGER pick-up (PX)/2.2 TDdi 4x4/2011.11-2015.06/P4-AT 2198 Diesel 110 kW 150 BHP (2011.11 - 2015.06) ,

- FORD/RANGER pick-up (PX)/2.2 TDdi 4x4/2015.06-/P4-AT 2198 Diesel 118 kW 160 BHP (2015.06 -) ,

- FORD/RANGER pick-up (PX)/3.2 TDdi/2011.11-/P5-AT 3198 Diesel 147 kW 200 BHP (2011.11 -) ,

- FORD/RANGER pick-up (PX)/3.2 TDdi 4x4/2011.11-/P5-AT 3198 Diesel 147 kW 200 BHP (2011.11 -) ,

- MAZDA/BT-50/2.2 MZ-CD/2011.11-/P4-AT 2198 Diesel 110 kW 150 BHP (2011.11 -) ,

- MAZDA/BT-50/3.2 MZ-CD (UP0YF1. UR0YF1)/2011.11-/P5-AT 3198 Diesel 147 kW 200 BHP (2011.11 -) ,

- MAZDA/BT-50/3.2 MZ-CD 4WD (UP0YF1. UR0YF1)/2011.11-/P5-AT 3198 Diesel 147 kW 200 BHP (2011.11 -) ,
