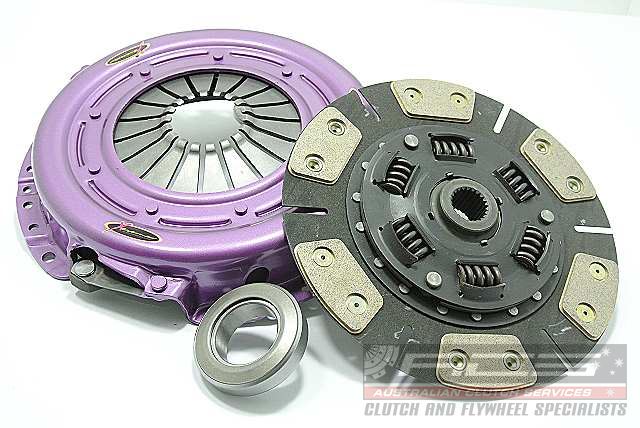

Clutch Kit - Xtreme Performance Heavy Duty Sprung Ceramic 650Nm 1600kg SIERRA I liftback (GBC) 2.0 4x4

1.563,82
(Price excluding VAT): 1.292,41
Stock:
0 Items
Item No.:
KFD24019-1B

Clutch Kit - Xtreme Performance Heavy Duty Sprung Ceramic 650Nm 1600kg SIERRA I liftback (GBC) 2.0 4x4

Contact us for installation, availability or other possible clutch models.
Xtreme Performance - sprung ceramic kit /-1B
Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:
  • Torque capacity 650Nm
  • Clamp load 1600kg Increased over standard
  • Sprung Ceramic Friction Disc
  • Heavy Duty Pressure Plate
  • Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Xtreme Performance
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Xtreme Performance

Clutch Disc Diameter (mm): 240

Clutch Disc Spline Count: 23

Clutch Disc Spline Diameter (mm): 25

Torque (Nm): 650

Flywheel Step:

Design: Single Plate

Stage: Stage 2

Tech Bulletins:

Clamp Load: 1600Kg

Recommended for: Track - Stage 2

Ring Gear Tooth count:

Additional information:

Fits:

- FORD/SIERRA I liftback (GBC)/2.0 4x4/1985.10-1987.02/N5B, YBB 1994 Petrol 150 kW 204 BHP (1985.10 - 1987.02) ,

- FORD/SIERRA II (GBG, GB4)/2.0 RS Cosworth/1987.01-1990.12/N5B, YBB 1993 Petrol 150 kW 204 BHP (1987.01 - 1990.12) ,

- FORD/SIERRA II liftback (GBC, GBG)/2.0 16V Cosworth 4x4/1990.01-1993.02/N5D 1993 Petrol 162 kW 220 BHP (1990.01 - 1993.02) ,

- FORD/SIERRA II liftback (GBC, GBG)/2.0 16V Cosworth Cat 4x4/1990.01-1993.02/N5C 1993 Petrol 162 kW 220 BHP (1990.01 - 1993.02) ,

- FORD/SIERRA II liftback (GBC, GBG)/2.0 RS Cosworth/1987.11-1990.01/N5B, YBB 1993 Petrol 150 kW 204 BHP (1987.11 - 1990.01) ,

- FORD/SIERRA II liftback (GBC, GBG)/2.0 RS500 Cosworth/1987.07-1987.12/YBD 1993 Petrol 167 kW 227 BHP (1987.07 - 1987.12) ,
