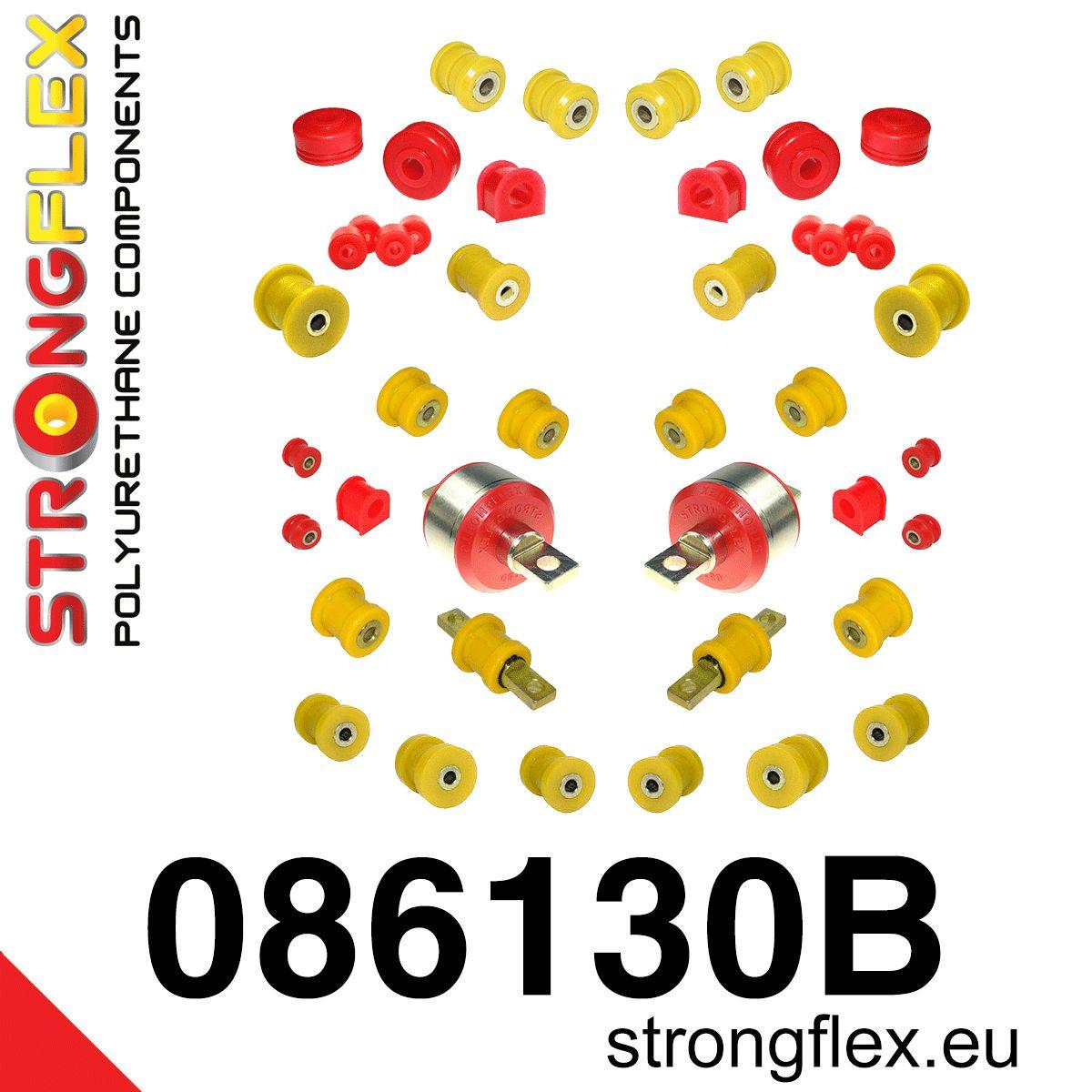

KIT ID: 086130B
Name: Full suspension bush kit polyurethane
Fits:
- Honda Civic 88-91
- Honda CRX 88-91
Include:
- 4x 081192A Front upper wishbone bush SPORT
- 2x 081094A Front wishbone outer bush SPORT
- 2x 081164A Front wishbone inner bush SPORT
- 4x 081165B Front tie bar to chassis bush
- 8x 081109B Front eye bolt mounting bush
- 2x 081229B Front anti roll bar bush
- 4x 081101A Outer arm to hub bush and inner track arm bush 31mm SPORT
or - 4x 081107A Outer arm to hub bush and inner track arm bush 35mm SPORT
- 2x 081102A Rear lower shock mounting bush SPORT
- 4x 081108A Rear toe link arm bush SPORT
- 2x 081103A Rear upper outer link/hub bush SPORT
- 2x 081104A Rear trailing arm mount bush SPORT
- 2x 081105B Rear trailing arm mount bush
- 2x 081171B Rear anti roll bar bush 13mm
or - 2x 081172B Rear anti roll bar bush 15mm
- 2x 081196B Rear anti rol bar link bush
- 2x 081521B Rear anti rol bar link bush
Notes
- The 081165 bushing does not fit the Civic EE9 and CRX EE8
NOTES:
To mount the bush 081105B you need an outer metal ring from the old original bush.
The old bush should be burnt or cut out. Bushing 081105B is not a replacement for the original bushing, the suspension will be stiffened.
Before purchase check front anti roll bar diameter and rear (081171 13mm or 081172 15mm).
Also check rear lower control arm bush diameter (081101 31mm or 081107 35mm)
The product 081229B replaces the bush 081237B
Pcs / KIT: 44
- Diagrams:

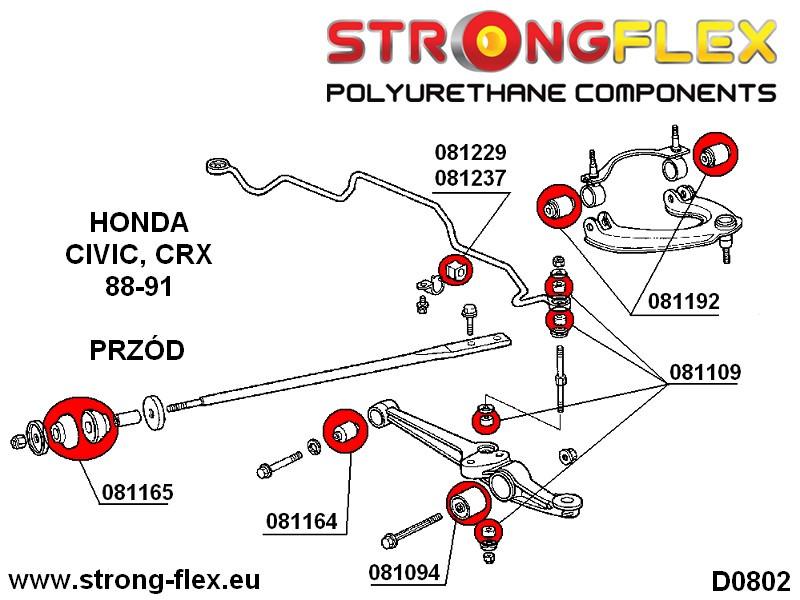

- D0802 Front suspension Polyurethane Honda Civic CRX EC EE ED

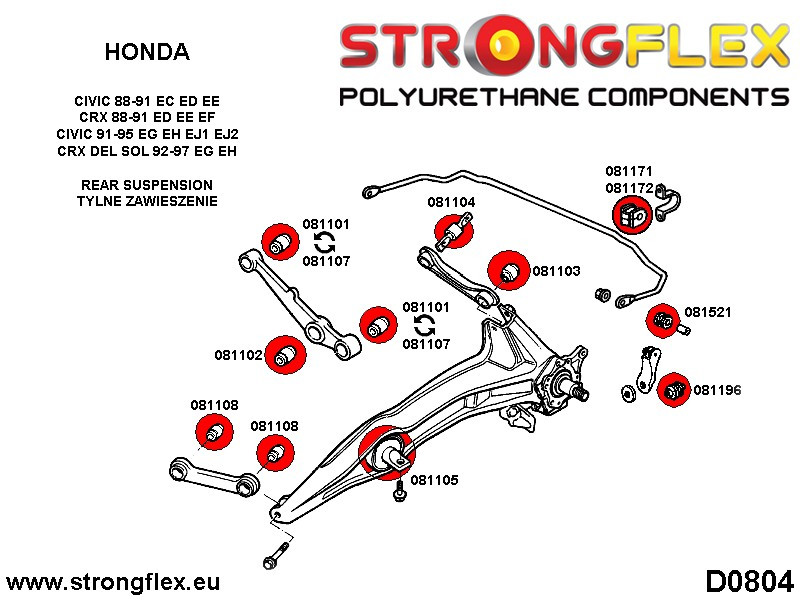

- D0804 Rear suspension Polyurethane Honda Civic CRX delSol
Hardness: 80ShA
Material: POLYURETHANE (PUR/PU)
To every product we add grease!
