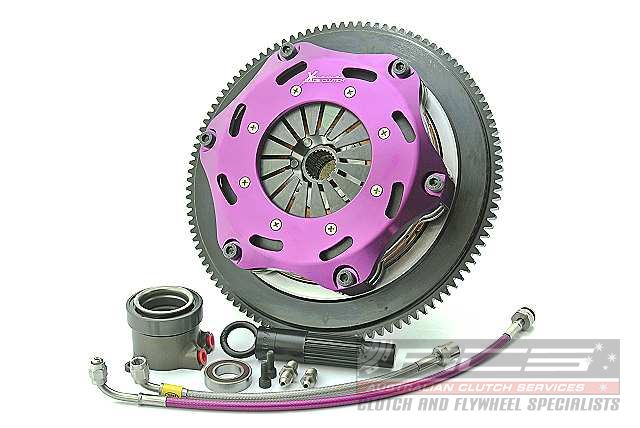

Xtreme Performance - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel & CSC 1220Nm S2000 2.0 (AP1)

Name: Xtreme Performance - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel & CSC 1220Nm S2000 2.0 (AP1)
Brand: Xtreme Clutch
Price: 2732.82 EUR
Availability: InStock

€2.732,82

(Price excluding VAT): €2.258,53

Stock:

0 Items

Item No.:

KHN18629-2E

SKU

Xtreme Performance - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel & CSC 1220Nm S2000 2.0 (AP1)

More Xtreme Clutch | More Clutch and flywheel

-2E

The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.

??	Ø184mm Light Diaphragm (2.6mm)	Ø184mm Heavy Diaphragm (2.8mm)
Clamping Force	950kg	1080kg
Torque Rating	1060Nm	1210Nm
Bearing Contact Diameter	44-52mm	44-52mm
Bearing Load (@ 48mm)	210kg	260kg
Release Travel Required	5mm	5mm
Assembly Mass (without flywheel)	4.45kg	4.45kg
Disc Set Static Mass	1.1kg
Friction Thickness New	6.35mm (0.250")	6.35mm (0.250")
Friction Thickness Worn	5.97mm (0.235")	5.97mm (0.235")

Product Features:

Push type billet alloy cover
4140 Chromoly pressure plate
Hardened steel wear posts
High and low ratio pressure plate options
Low inertia
Serviceable components
SFI certified design

Xtreme Motorsport

Clutch Disc Diameter (mm): 184

Clutch Disc Spline Count: 24

Clutch Disc Spline Diameter (mm): 26.2

Torque (Nm): 1220

Flywheel Step:

Design: Twin Plate

Stage: Multiplate - track use only

Tech Bulletins:

Clamp Load: 900Kg

Recommended for: Motorsport

Ring Gear Tooth count:

Additional information:

Fits:

- HONDA/S2000/2.0 (AP1)/1999.06-2009/F20C VTEC 1997 Petrol 177 kW 240 BHP (1999.06 - 2009) ,

- HONDA/S2000/2.0 Vtec/1999.03-2003.10/F20C1 1997 Petrol 170 kW 231 BHP (1999.03 - 2003.10) ,

- HONDA/S2000/2.0 Vtec (AP1)/2003.10-2009/F20C3 1997 Petrol 184 kW 250 BHP (2003.10 - 2009) ,

- HONDA/S2000/2.2 Vtec (AP2)/2003.10-2009/F22C1 2156 Petrol 176 kW 239 BHP (2003.10 - 2009) ,
