Overview

Xtreme Performance - 200mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm MX-5 III (NC) 2.0 (NC18)

Name: Xtreme Performance - 200mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm MX-5 III (NC) 2.0 (NC18)
Brand: Xtreme Clutch
Price: 1410.86 EUR
Availability: InStock

Item No.: KMZ20524-2E

(0 Reviews)

(Price excluding VAT) €1.166,00

€1.410,86

Add to wishlist

Article numbers

Stock

Stock:

0 Items

More Xtreme Clutch | More Clutch and flywheel

Description

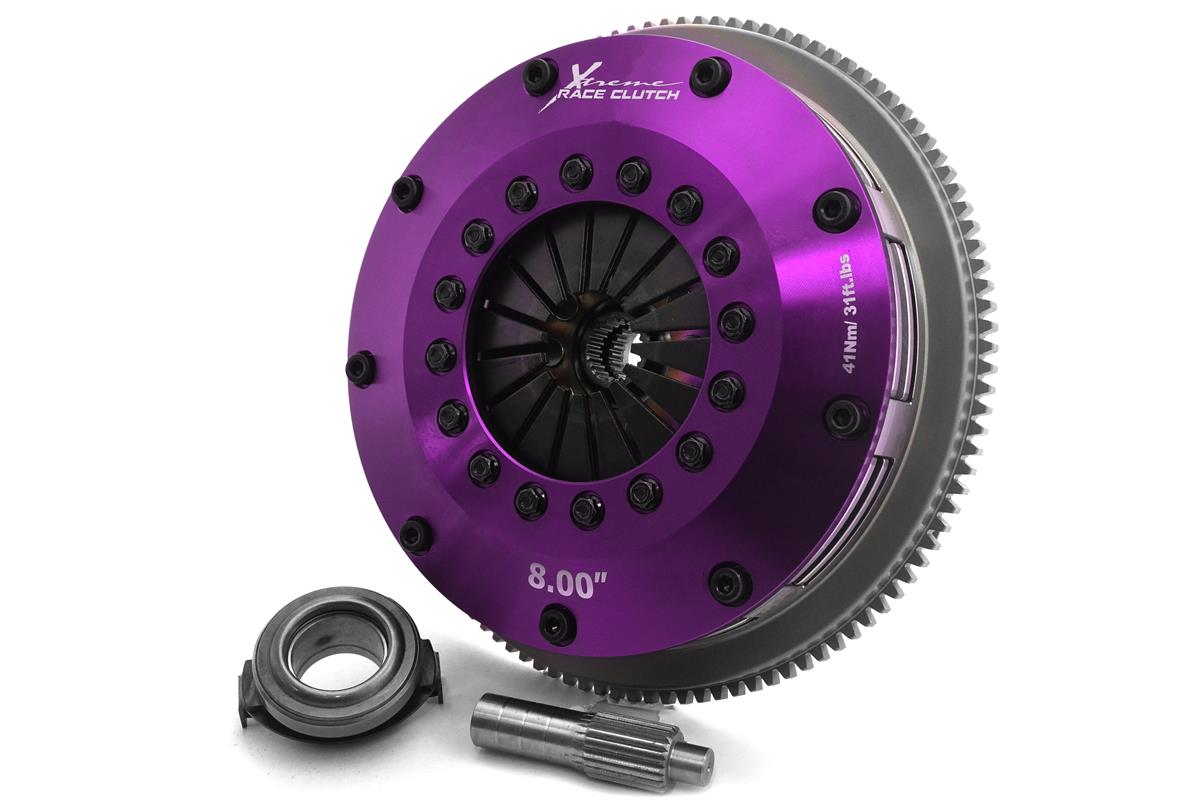

Xtreme Motorsport 200mm twin plate

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

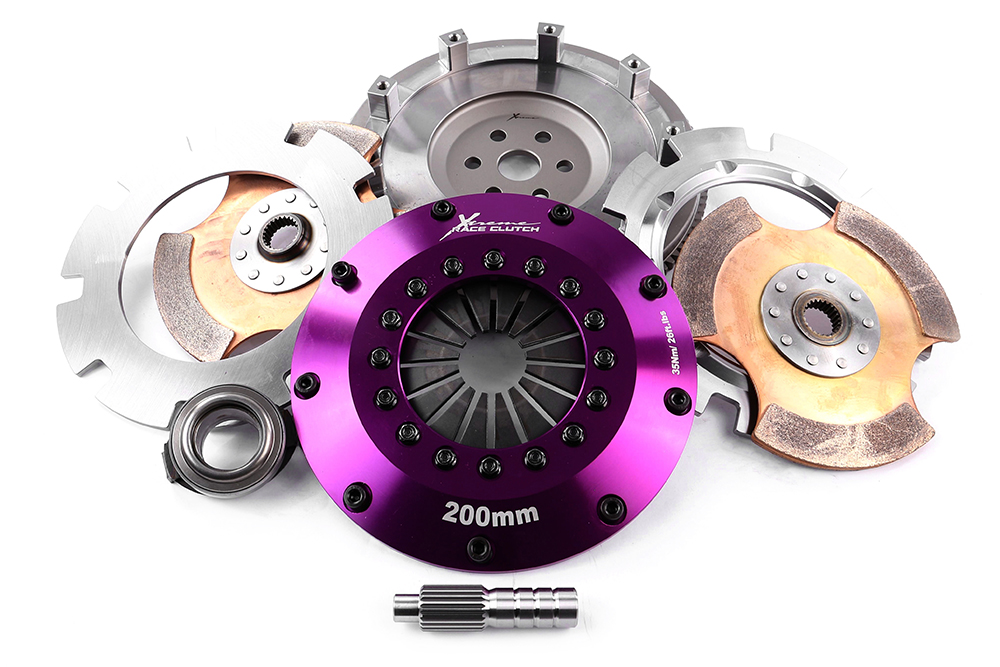

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

Torque capacity 1200Nm
Kit contains everything you need for a successful installation + accessories
Rigid driven discs (individual hubs)
Push type billet alloy cover
4140 Chromoly pressure & intermediate plates

Hardened steel wear posts

Low inertia

Serviceable components

SFI certified design

Clamping Force 1000kg

Torque Rating 1200Nm

Bearing Contact Diameter 44-52mm

Bearing Load (@ 48mm) 218kg

Release Travel Required 6mm

Assembly Mass (without flywheel) 7kg

Disc Set Static Mass 1.75kg

Friction Thickness New 7mm (0.275")

Friction Thickness Worn 6.48mm (0.255")

Additional Information

Xtreme Motorsport

Clutch Disc Diameter (mm): 200
Clutch Disc Spline Count: 23
Clutch Disc Spline Diameter (mm): 26
Torque (Nm): 1200
Flywheel Step: +2.2mm
Design: Twin Plate
Stage: Multiplate - track use only
Tech Bulletins:
Clamp Load:
Recommended for: Motorsport
Ring Gear Tooth count:
Additional information:

Fits:
- MAZDA/MX-5 III (NC)/2.0 (NC18)/2005.07-2014.12/LFG7, LFY7, LFG8, LFZD 1999 Petrol 118 kW 160 BHP (2005.07 - 2014.12) ,
