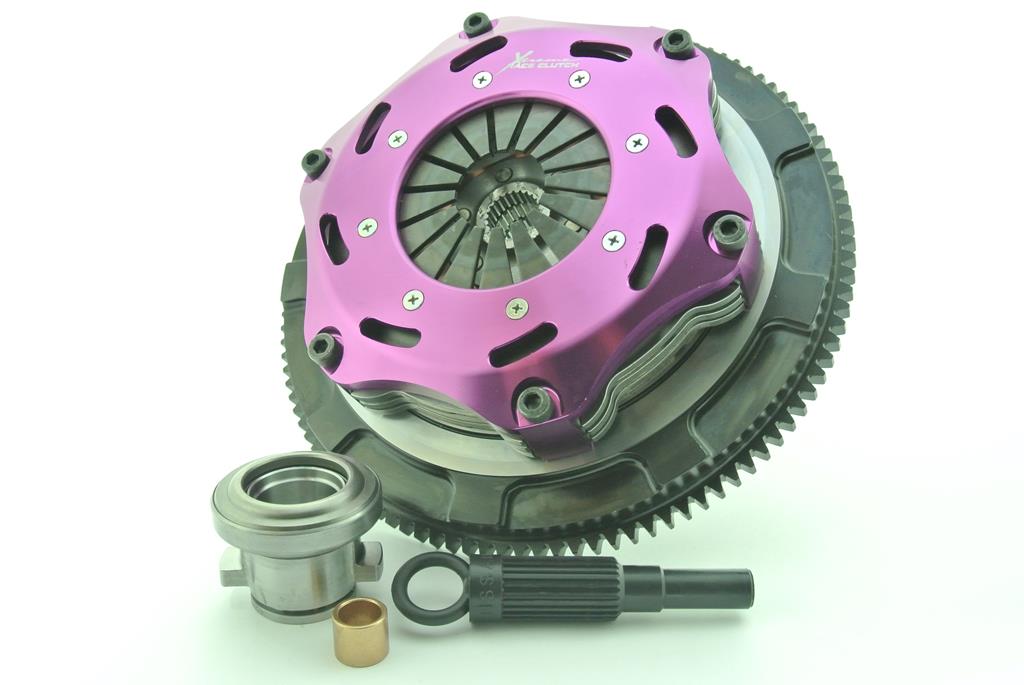

Xtreme Performance - 184mm Rigid Ceramic Triplate Plate Clutch Kit Incl Flywheel 180SX coupe (S13) 2.0

2.009,42
(Price excluding VAT): 1.660,68
Stock:
0 Items
Item No.:
KNI18521-3E

Xtreme Performance - 184mm Rigid Ceramic Triplate Plate Clutch Kit Incl Flywheel 180SX coupe (S13) 2.0

Contact us for installation, availability or other possible clutch models.

-3E

The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.

?? Ø184mm Light Diaphragm (2.6mm) Ø184mm Heavy Diaphragm (2.8mm)
Clamping Force 950kg 1080kg
Torque Rating 1600Nm 1820Nm
Bearing Contact Diameter 44-52mm 44-52mm
Bearing Load (@ 48mm) 210kg 260kg
Release Travel Required 5mm 5mm
Assembly Mass (without flywheel) 4.75kg 4.75kg
Disc Set Static Mass 1.2kg
Friction Thickness New 2.6mm (0.103") 2.6mm (0.103")
Friction Thickness Worn 2.36mm (0.093") 2.36mm (0.093")

Product Features:

  • Push type billet alloy cover
  • 4140 Chromoly pressure plate
  • Hardened steel wear posts
  • High and low ratio pressure plate options
  • Low inertia
  • Serviceable components
  • SFI certified design

Xtreme Motorsport

Clutch Disc Diameter (mm): 184

Clutch Disc Spline Count: 24

Clutch Disc Spline Diameter (mm): 25.5

Torque (Nm): 1830

Flywheel Step: +2.5mm

Design: Triple Plate

Stage: Multiplate - track use only

Tech Bulletins:

Clamp Load: 900Kg

Recommended for: Motorsport

Ring Gear Tooth count:

Additional information:

Fits:

- NISSAN/180SX coupe (S13)/2.0/1992.01-1997.01/SR20DET 1998 Petrol 153 kW 208 BHP (1992.01 - 1997.01) ,

- NISSAN/180SX coupe (S13)/2.0 Turbo/1991.04-1994.03/SR20DET 1998 Petrol 147 kW 200 BHP (1991.04 - 1994.03) ,

- NISSAN/200SX coupe (S14)/2.0 i 16V Turbo/1993.10-1999.12/SR20DET 1998 Petrol 147 kW 200 BHP (1993.10 - 1999.12) ,

- NISSAN/200SX coupe (S14)/2.0 Turbo/1994.04-1999.09/SR20DET 1998 Petrol 162 kW 220 BHP (1994.04 - 1999.09) ,

- NISSAN/SILVIA coupe (S13)/2.0/1991.01-1993.09/SR20DET 1998 Petrol 151 kW 205 BHP (1991.01 - 1993.09) ,

- NISSAN/SILVIA coupe (S13)/2.0/1991.01-1993.09/SR20DET 1998 Petrol 164 kW 223 BHP (1991.01 - 1993.09) ,
