THE PROBLEM
The stock center support bearing carrier holds the driveshaft in place with rubber so thin about 20 lbs of force moves it from center to the end of its travel. While that???s great for making sure no NVH makes it to the cabin, it doesn???t keep the bearing centered well under load, allows the bearing to sag over time and ruin the driveshaft alignment, and creates slop in the driveline during shifts and throttle application. Over time the OEM bushing sags and becomes brittle, eventually dry rotting and cracking. Even on the best-kept cars, the stock bushing can start to from cracks in as little as 5-10 years. When the bushing lets go, it can lead to excessive vibration and clunking and put more stress on the bearing. To make matters worse, the stock carrier is molded onto the center support bearing, so it???s not easy to replace without special tools.

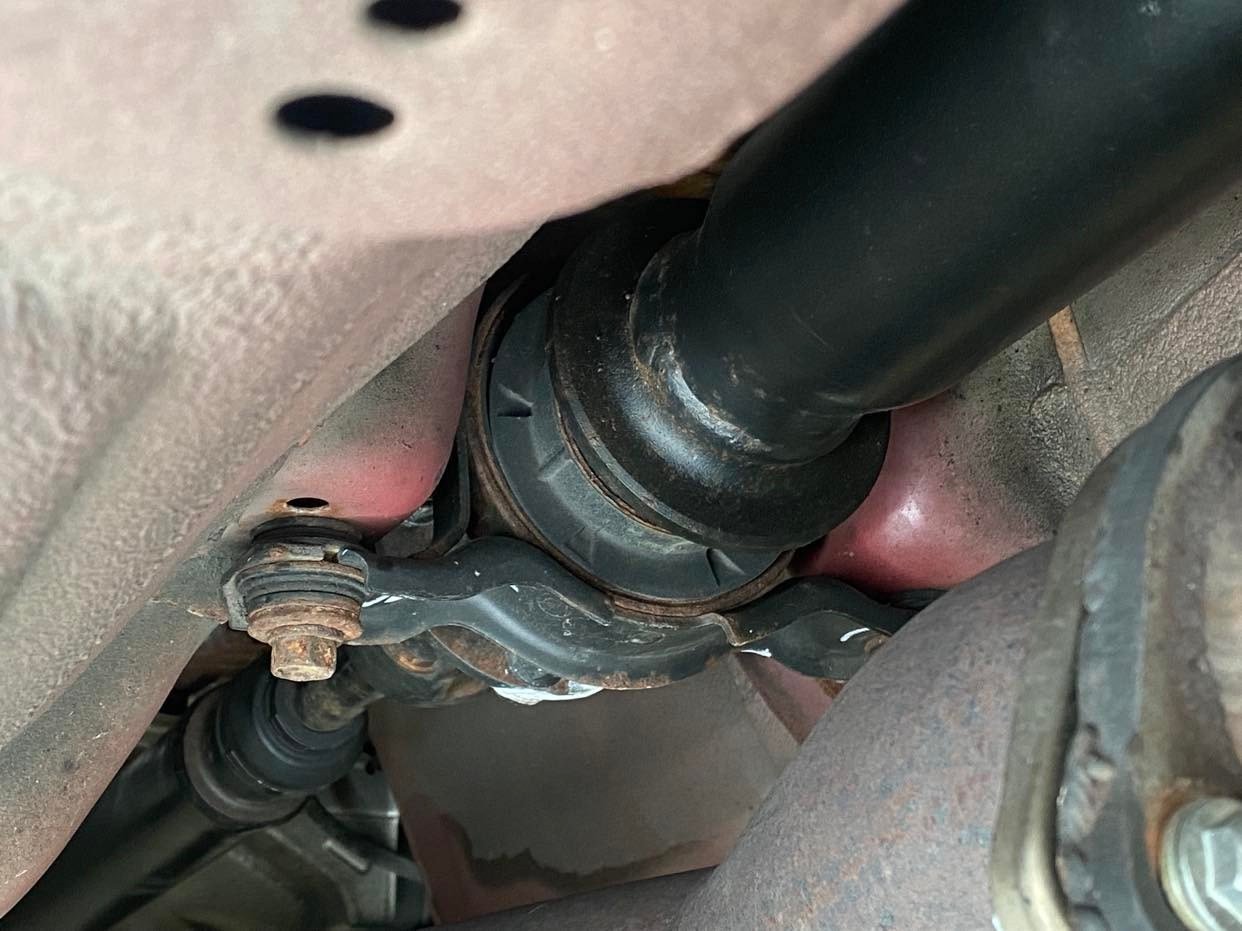

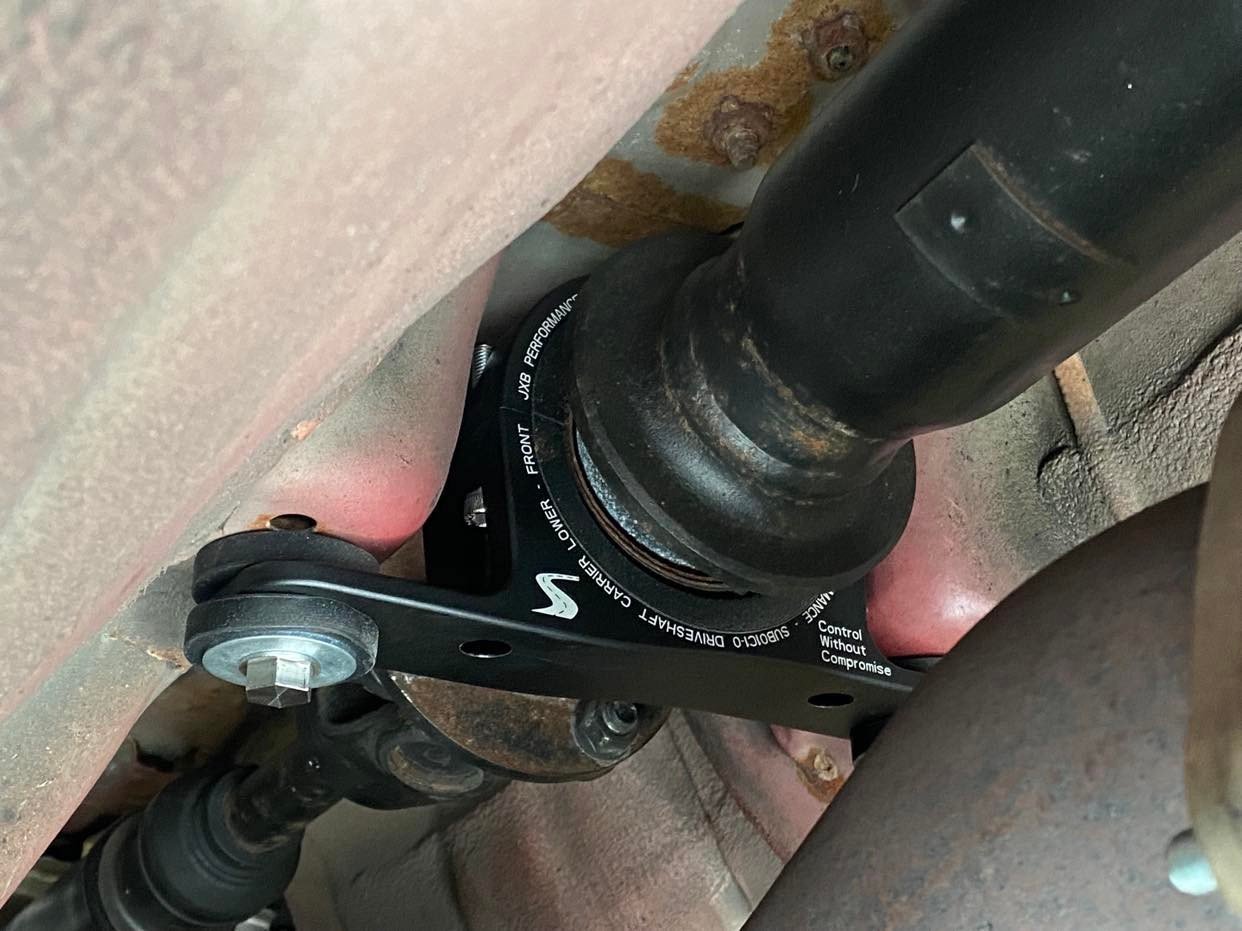

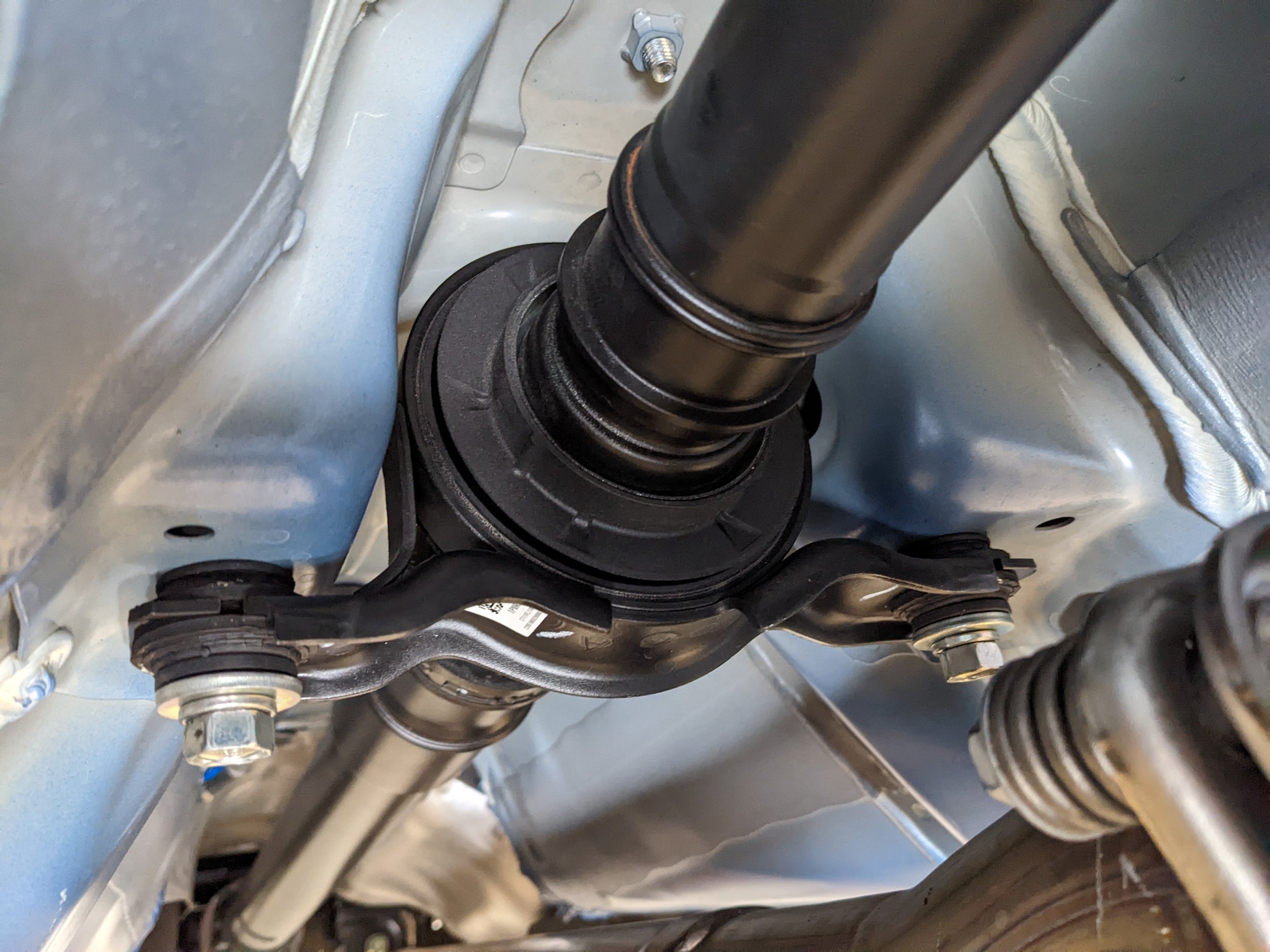

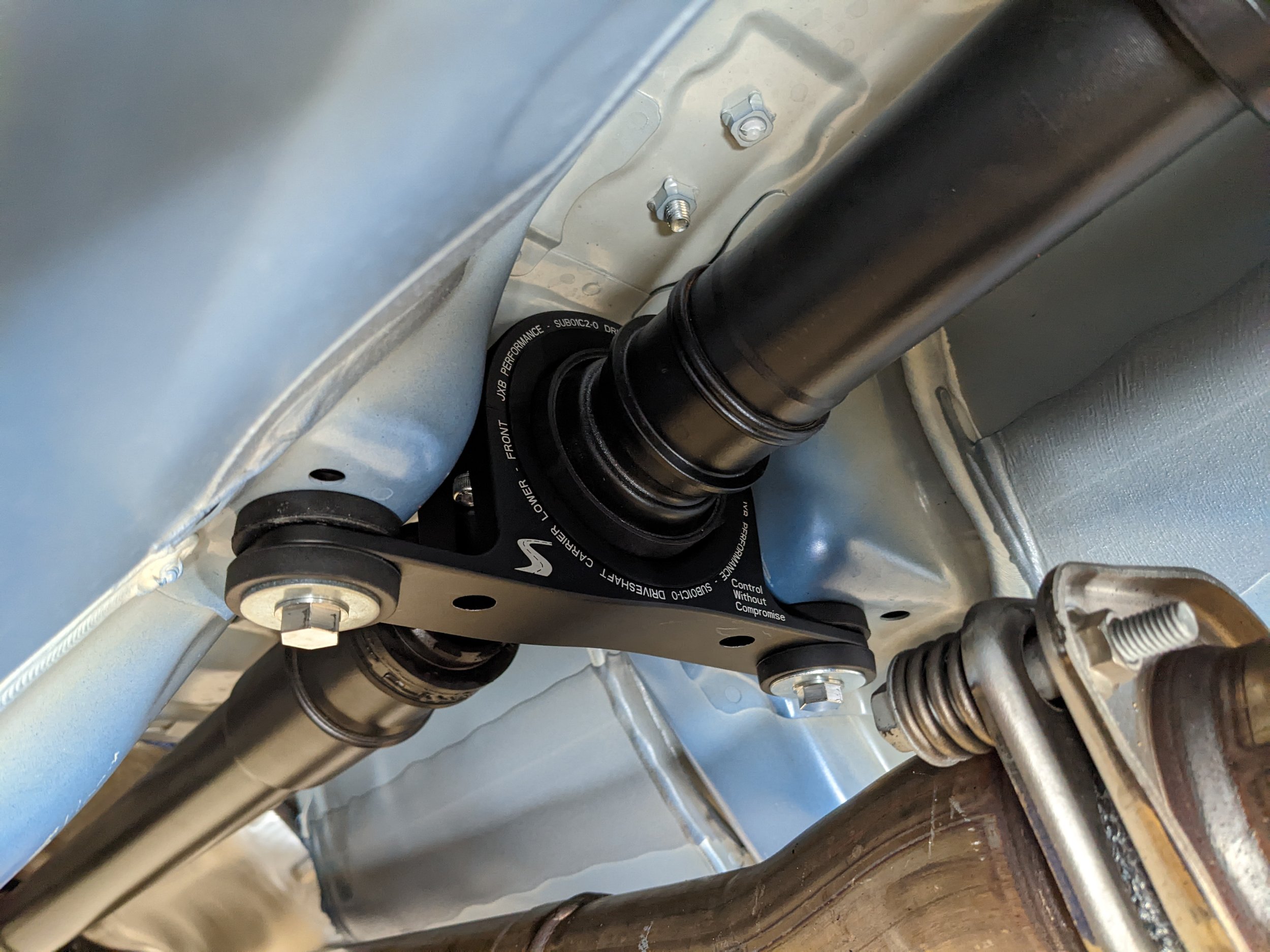

The first video below was recorded on a 2022 WRX with stock power levels. The 2nd video was recorded on a 2010 STI making around 450whp. The shaft is not well-supported by the soft OEM carrier, so it???s allowed to travel off-center during rapid loading and unloading.
THE SOLUTION

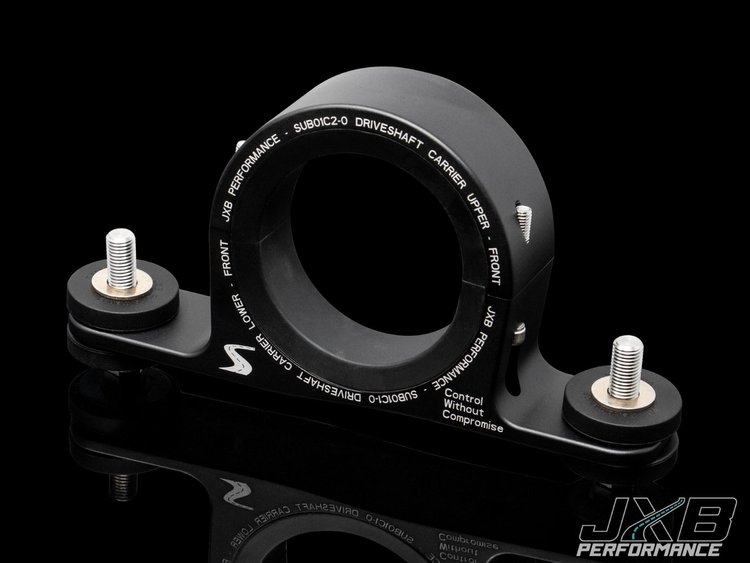

This upgraded unit keeps the driveshaft firmly in place at all times, and its solid construction ensures it will never wear out. The thick bushings ensure the driveshaft cannot move from center, maintaining driveshaft alignment at all times.
THE BUSHINGS
Two options are available for the bushings, both of which are many times over better than the stock bushing. We???ve paid close attention to the NVH levels associated with this upgrade. After extensive design iterations, we???ve come up with custom isolator bushings that separate the carrier from the body of the vehicle and mounting hardware. These carriers substantially reduce NVH levels.
The street bushings absorb most of the NVH from the drivetrain. Some light NVH is possible at some speeds in the form of a soft hum. With a modified exhaust or windows down you???ll probably never hear it.
The track bushings are for those who want no-compromise drivetrain performance. These may create a substantial amount of cabin noise. Not sure which is for you? They???re interchangeable so you can try them both.
INSTALLATION
Installation doesn???t require removal of the driveshaft. The 2-part design clamps around the OEM bearing. The old carrier must be removed, so a cutting tool is required. Below is the installation of this part on a 2008 STI and a 2022 WRX. The exact steps to access the carrier will vary slightly by model, but the removal and installation of the new carrier are the same. The basic steps are:
Remove any braces or splash shields preventing exhaust and heat shield removal
Remove or lower exhaust in area of center support bearing if needed for access
Remove heat shielding covering center support bearing
Cut off OEM carrier and remove rubber support material with razorblade, leaving base layer of rubber intact on the bearing
Clamp new carrier around OEM bearing
FITMENT
3rd gen Impreza models (GE/GV/GH/GR) (2007-2011)
Including WRX and WRX STi (2007-2014)
4th gen Impreza models (GJ/GP) (2012-2016)
Including VA WRX and WRX STi (2015-2021)
5th gen Impreza models (GK/GT) (2017-2023)
Including VB WRX (2022+)
Part Numbers
Full Assemblies
Street - SUB01A0-S
Track - SUB01A0-T
Both - SUB01A0-B
Spare Bushing Packs
Street - BSH07A0
Track - BSH07A1
