Clutch Kit - Xtreme Performance Race Sprung Ceramic 390Nm SWIFT IV 1.6 (AZG 416. AZH 416. RS416)

865,73
(Price excluding VAT): 715,48
Stock:
0 Items
Item No.:
KSZ20406-1R

Clutch Kit - Xtreme Performance Race Sprung Ceramic 390Nm SWIFT IV 1.6 (AZG 416. AZH 416. RS416)

Contact us for installation, availability or other possible clutch models.
Xtreme Performance - Extra Heavy Duty Sprung Ceramic/-1R
Recommended for: Motorsport Applications

-1R kits feature a sprung ceramic friction disc, but with even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.

Specifications:
  • Torque capacity 390Nm
  • Clamp load Increased over standard
  • Sprung Ceramic Friction Disc
  • Extra Heavy Duty Pressure Plate
  • Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Xtreme Performance
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

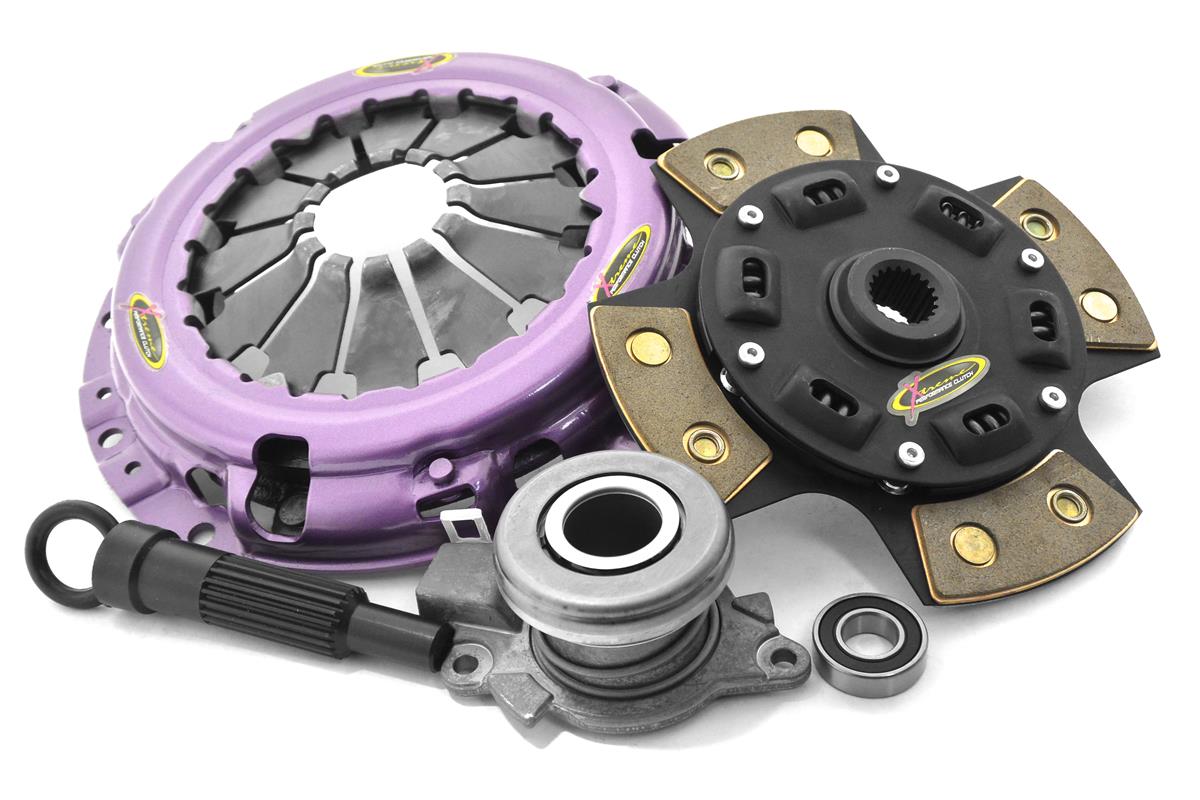

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Xtreme Performance

Clutch Disc Diameter (mm): 200

Clutch Disc Spline Count: 20

Clutch Disc Spline Diameter (mm): 22.4

Torque (Nm): 390

Flywheel Step: +0.5mm

Design: Single Plate

Stage: Stage 2R

Tech Bulletins:

Clamp Load:

Recommended for: Race Vehicles - Stage 2R

Ring Gear Tooth count:

Additional information:

Fits:

- SUZUKI/SWIFT IV/1.6 (AZG 416. AZH 416. RS416)/2012.01-2017/M16A 1586 Petrol 100 kW 136 BHP (2012.01 - 2017) ,
