Have you ever dreamt about turning your trackcar into a proper racecar? With Öhlins Advanced Trackday applications it’s possible to turn your daily driver into a proper racecar. We developed these Advanced Trackday applications to improve performance at the track. With the individual compression and rebound adjusters, you’ll be able to optimize performance effortlessly. Because every day should be trackday, right?
General Features:
Race-proven Ohlins Twin-Tube technology (TTX)
Separate adjustment for compression and rebound damping
Aluminum high strength and light-weight design
Top mounts specially designed by Öhlins & Millway
Tested and validated for multi-compound tyres (semi-slick)
Individual height adjustment
Rebuildable
Corrosion salt spray tested (ISO 9227)
2 year warranty

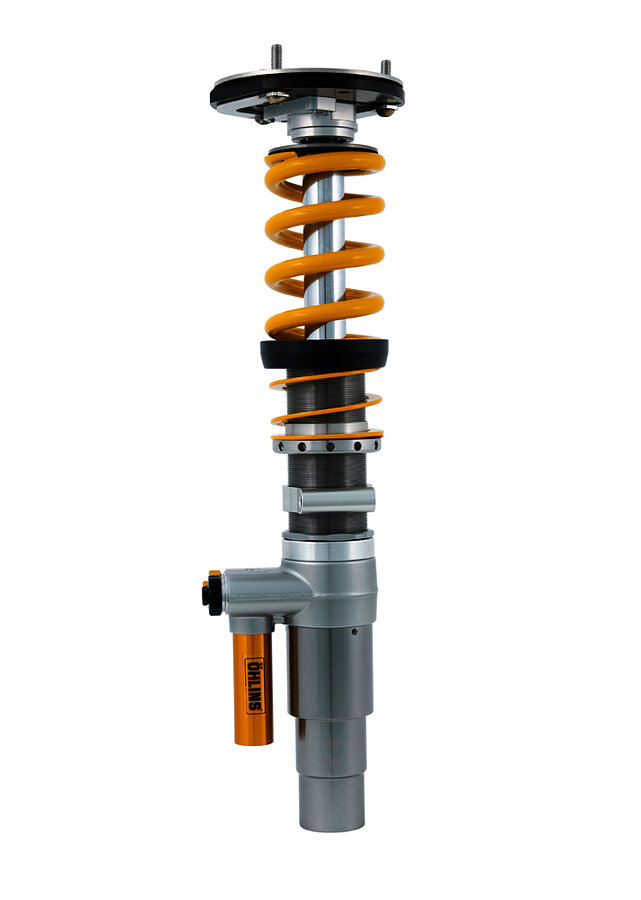

Features Front:
TTX46 McPherson shock absorber
2-way damping adjustment
Spring preload adjustment
Separate ride height adjustment
Recommended spring rate 160 N/mm

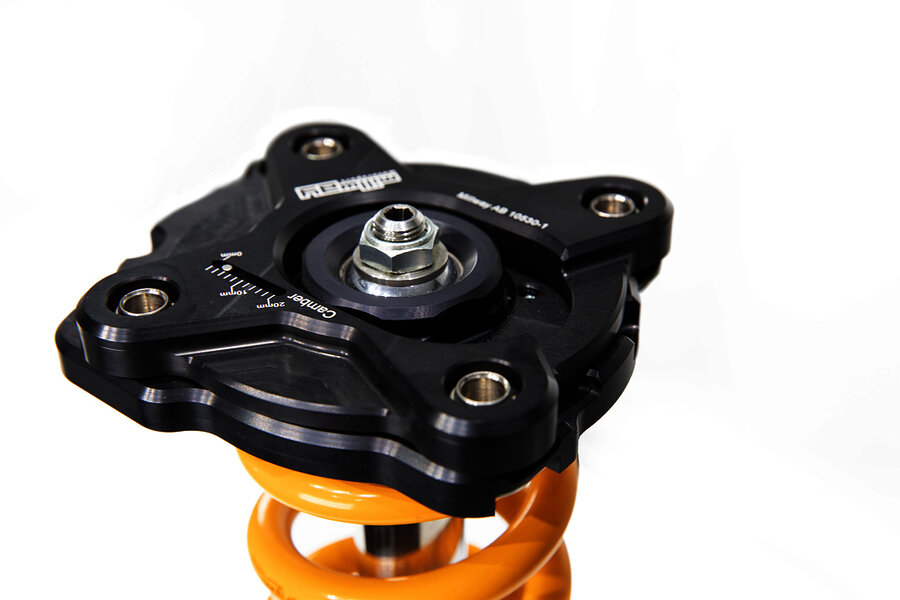

Camber & caster adjustable Aluminum uniball top mounts
Drop links with spherical bearings
Upgrade to 3-, 4- or 5-way damping adjustment possible
Features Rear:
TTX36 shock absorber, coil over design
2-way damping adjustment
Separate spring preload adjuster
Recommended spring rate 130 N/mm
Aluminum top mounts
Upgrade to 3-, 4- or 5-way damping adjustment possible
Purchased Parts Package:
1x Shock absorber set, part no. BMV MX01

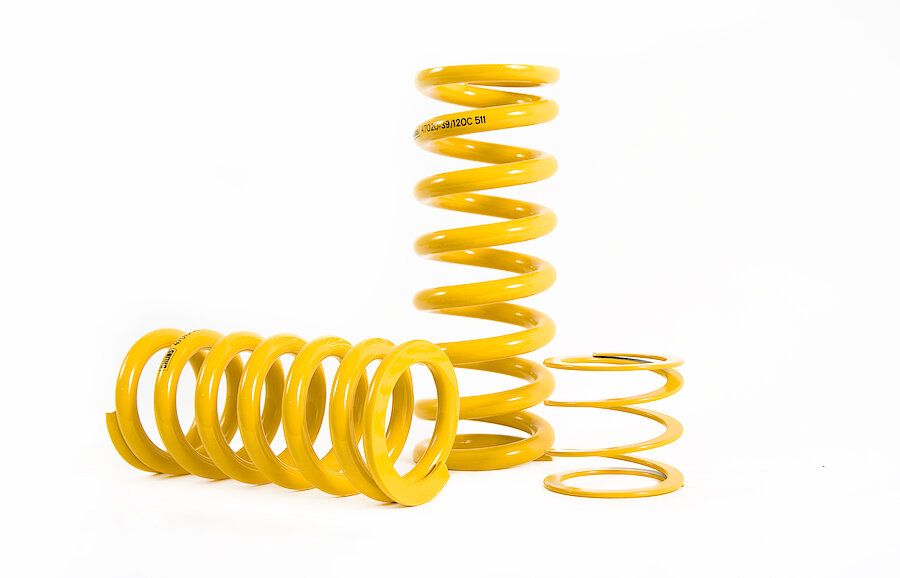

2x Front spring, part no. 48140-29
2x Rear spring, part no. 48170-23
4x Helper spring front/rear, part no. 05173-12
1x Top mount set front, part no. 05926-24
1x Top mount set rear, part no. 05926-13
1x C spanner (tool for spring preload adjustment)
Note: Ohlins Advanced Trackday coilover systems are supplied without springs as standard and can be equipped with alternative springs if required.
