Honda Civic 5-versnellings Sequential Tandwielset — hoogwaardig Quaife product voor motorsport en weggebruik.

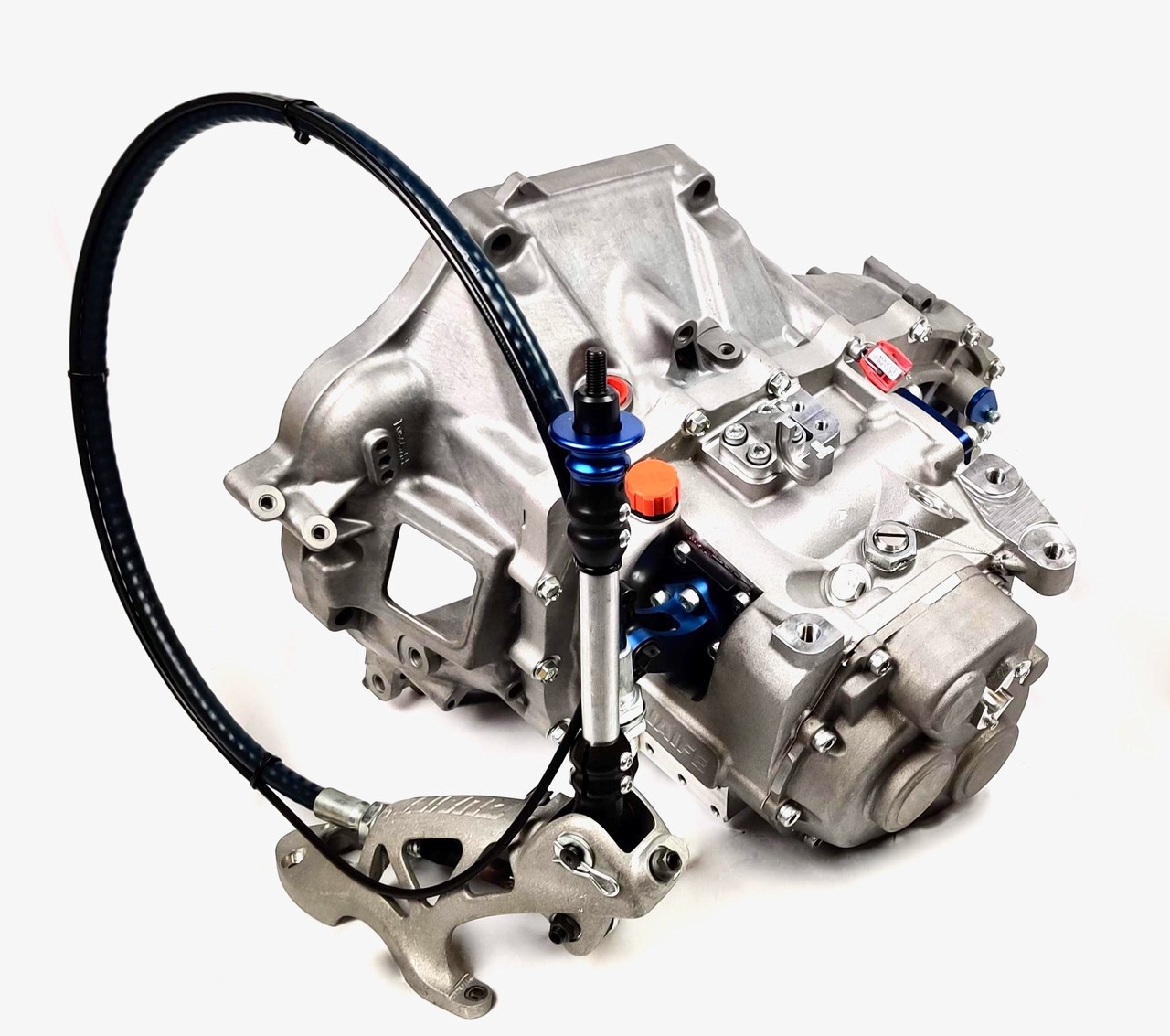

QKE8J is a 5-speed sequential gearkit for the EP3 and FN2 versions of the Honda Civic Type R as well as the DC5 Intregra. Ideally suited to circuit racing, drag racing and rally use it’s designed as a direct replacement for the standard six-speed H-pattern Honda transmission.
QKE8J features a replacement Quaife outer gearbox case incorporating an additional support bearing between 4th and 5th gear. A compact, drum style sequential gearchange mechanism and an open face dog design ensure an ultra rapid, positive gear sequential shift.
QKE8J re-uses the original EP3/FN2/DC5 bellhousing half of the transmission casing, enabling the retention of the Honda clutch, differential, driveshafts and mounting points. Wide straight cut (spur) close-ratio gears minimise transmission losses and offer a choice of rally, race or drag race gearing. There is also the choice of a helical set for road and track day applications.
Key technical features of the QKE8J five-speed Honda EP3/FN2/DC5 sequential gearkit include:-
– Strengthened outer casing and five wider gears
– Ultra fast sequential gearshift with straight cut or helical close-ratio gears
– Retains stock EP3/FN2/DC5 clutch, diff, driveshafts and mounts
– Optional LED digital gear position indicator available
PLEASE NOTE: The Quaife QKE8J package includes the new transmission housing, gear lever and cable
Gear Ratios:
| 1st | 2nd | 3rd | 4th | 5th | |
| 3.100 | 2.067 | 1.421 | 1.048 | 0.870 | “Drag” Set |
| 3.100 | 2.067 | 1.611 | 1.333 | 1.136 | “Rally” Set |
| 2.417 | 1.611 | 1.263 | 1.000 | 0.852 | “Race” Set |
Final Drive Ratios
| 3.059 | 3.800 | 4.143 | 4.357 | 4.750 | 5.091 | Straight Cut |
QKE8J sequential gearkits are used in a number of record holding cars, including:
BYP’s 8 second K24 powered MR2
Will Au-Yeung’s Tsukuba lap record holding Civic
And the Mighty Mouse CRX, World Time Attack lap record holder
