In-Line Reversing Box — hoogwaardig Quaife product voor motorsport en weggebruik.
QBE35G was developed by Quaife to provide a reverse gear solution for motorcycle engined cars running an in-line powertrain installation.
To avoid unnecessary power loss, QBE35G has been designed to be ‘straight-through’ operation when running in ‘forward’ mode, therefore absorbing less power than conventional designs.
A compact, heavy duty unit, QBE35G features billet aluminium cases, and uses readily available Ford English axle flanges for input and output propshaft mounting.

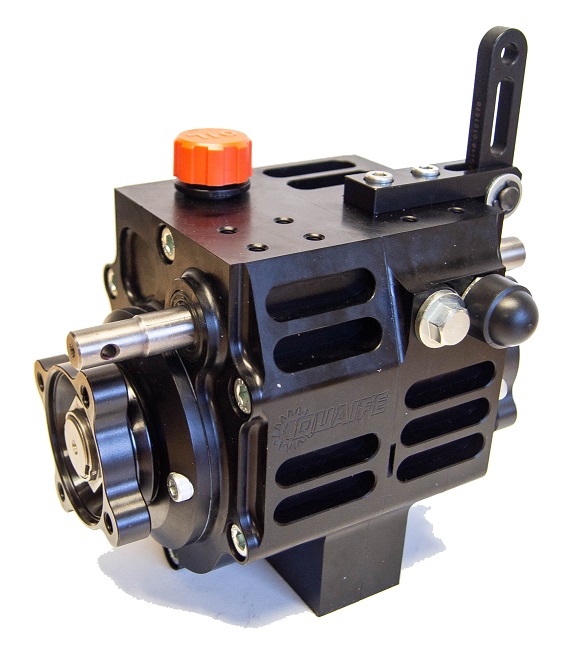

Operated by a cable or other remote device via a short lever, (pictured above), or optional longer lever, a Quaife breather bottle is also available as an option for QBE35G.
Key technical features of the QBE35G Quaife reversing differential unit include:
• Designed for in-line use only
• Straight through design in forward mode to minimise power loss
• Uses billet aluminium cases
• Operated by short lever or optional longer lever (not shown)
• Weight only 8kg
• Over 1000 in use worldwide
