Land /Range Rover 6-versnellings Sequential Versnellingsbak — hoogwaardig Quaife product voor motorsport en weggebruik.

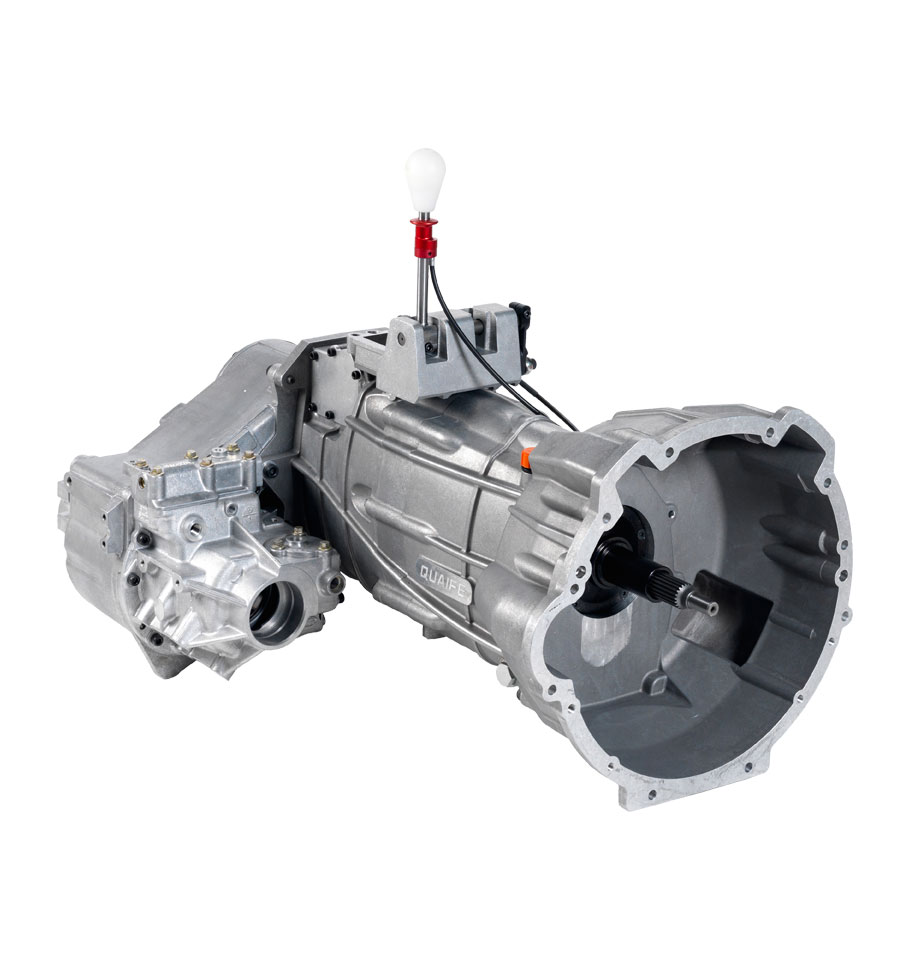

The QBE86G is a high strength, six-speed, sequential unit designed for rally raid Land / Range Rover applications where rapid gearshifts and reliability are paramount. QBE86G retains the R380 transmission’s mounting points, and a Land / Range Rover V8 bellhousing is available from stock.
Technical highlights include 90mm shaft centres proven to 750bhp, wide helical gears, and an uprated reverse to suit off-road use. A modular gear cluster and a drum type sequential gearchange system combines with an open face dog design on both gear and drive disc, producing a fast, positive gearshift.
Options include a left hand or right hand gear lever offset.
The QBE86G retains the original Land / Range Rover LT230 transfer box (supplied separately). Compatible with the factory Land . Range Rover centre differential locking mechanism, a Quaife ATB centre differential is also available.
Key features of the QBE86G include:-
-Sequential engagement with helical-cut gears rated to 750bhp
-Drum type sequential gearchange mechanism
-Land / Range Rover V8 bellhousing available, plus adaptor kits for many other vehicles.
-Digital gear position indicator available
-Retains original propshaft lengths
-Weight approximately 55kg
-Uses standard LT230 transfer (not supplied)
Gear Ratios
1st 2nd 3rd 4th 5th 6th
2.831 1.759 1.260 1.000 0.828 0.739
