Mitsubishi Lancer Evolution 4-9 Heavy Duty 5-versnellings Sequential Versnellingsbak — hoogwaardig Quaife product voor motorsport en weggebruik.

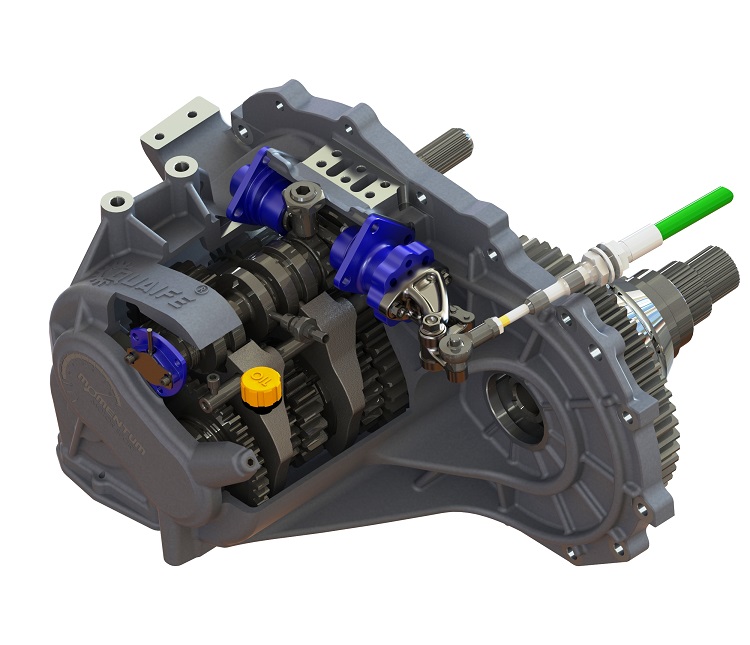

QBE6U is a high performance five-speed sequential gearbox incorporating the latest Quaife selection technology to deliver rapid gearshifts in a robust, affordable, easy to install package for Mitsubishi Lancer Evolution 4-9 owners.
A direct replacement for the factory ‘H’-pattern transmission, the Quaife QBE6U sequential gearbox utilises the original Mitsubishi bell housing, with the addition of a bespoke cast outer case containing a state of the art sequential shift mechanism operated by a new design of Quaife gear lever.
QBE6U’s heavy-duty gear train incorporates wider than standard REM ISF® super finished gears that feature the latest open face dog engagement design with larger dog rings and straight cut FIA homologated Group N ratios. Using a gear design already proven in high-powered Mitsubishi Lancer Evolution applications QBE6U offers precise, fast shifts and superior ratios for track day and competition use.
Key technical features of the Quaife QBE6U five-speed Mitsubishi Lancer Evolution sequential gearbox include:-
• Quaife sequential gearlever
• Wider homologated FIA Group N rally gear ratios
• REM ISF® super finished gears
• Quaife final drive ratio included
• Quaife ATB centre differential (QDH11B) available as cost option
• Optional LED digital gear readout available (QMLED)
1st 2nd 3rd 4th 5th
3.000 2.000 1.470 1.111 0.857
4.308 4.143
