016265A: Complete set polyurethaan bussen voor de ophanging SPORT Alfa Romeo 159 Q4

Reference: 016265A

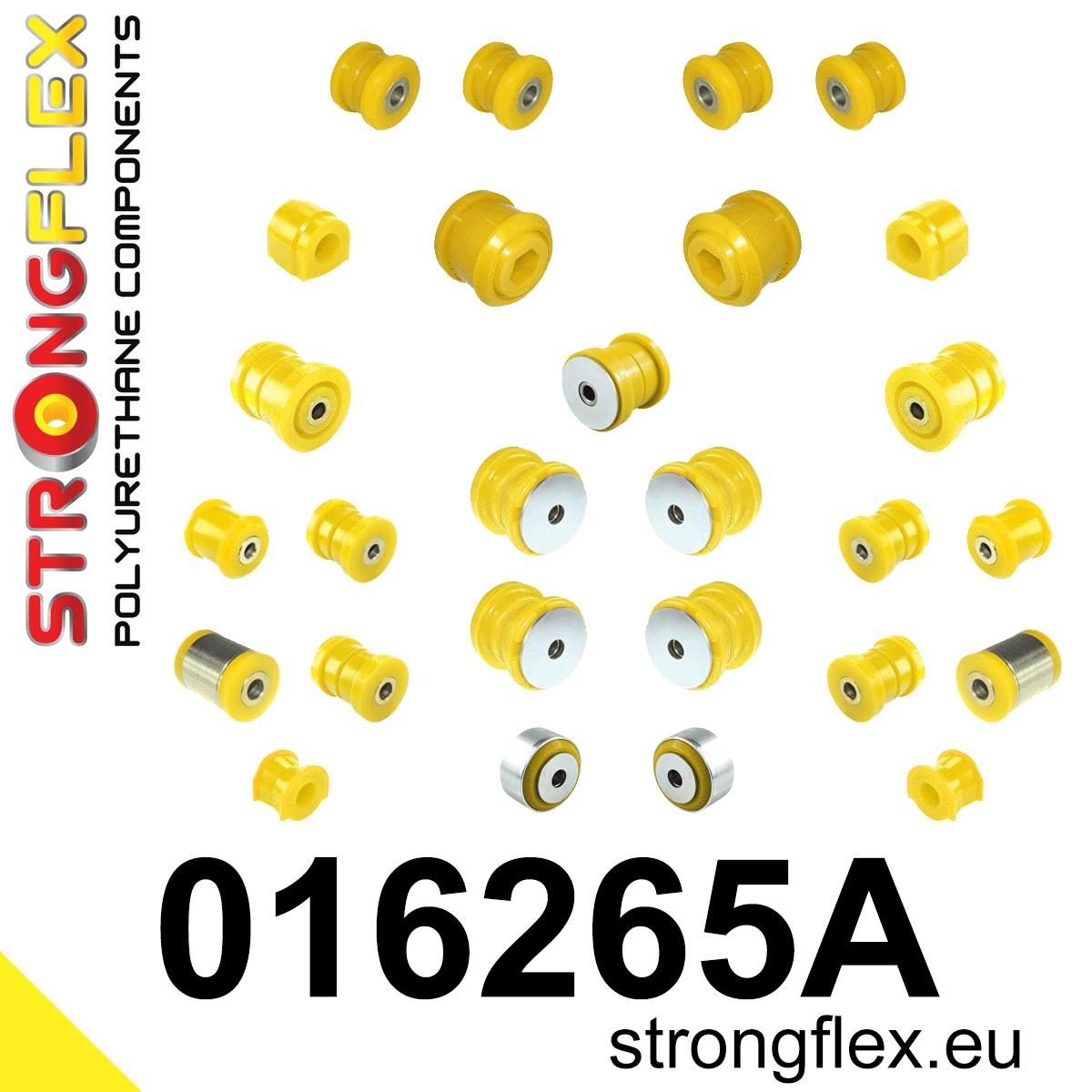

Product name: Full suspension polyurethane bush kit SPORT

Fits to:

• Alfa Romeo 159 (05-11) type 939 Q4
• Alfa Romeo Brera (05-10) type 939 Q4
• Alfa Romeo Spider III (05-10) type 939 Q4

Include:

• 2x 011653A: Front upper arm - front bush SPORT
• 2x 011654A: Front upper arm - rear bush SPORT


• 2x 011703A: Front lower arm rear bush 46mm SPORT
  or
• 2x 011704A: Front lower arm rear bush 54mm SPORT


• 2x 011870A: Front anti roll bar bush SPORT


• 2x 011871A: Rear anti roll bar bush SPORT
• 2x 011872A: Rear trailing arm - front bush SPORT
• 2x 011873A: Rear upper arm bush SPORT
• 2x 011874A: Rear hub - upper bush SPORT
• 2x 011875A: Rear lower arm bush SPORT
• 2x 011877A: Rear hub - lower bush SPORT


• 4x 011929A: Rear crossmember bush SPORT
• 1x 011989A: Rear diff mount - front bush SPORT
• 2x 011990A: Rear diff mount - rear bush SPORT

Diagrams:

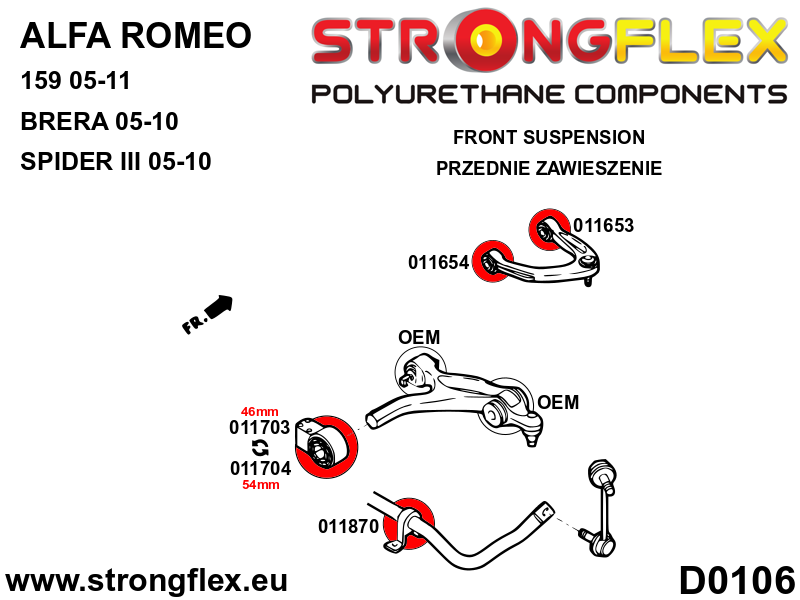

• D0106

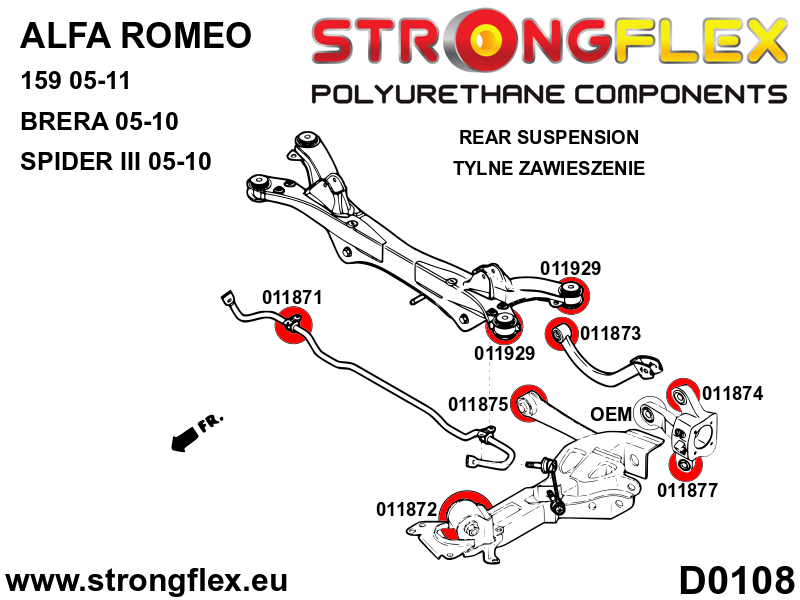

• D0108

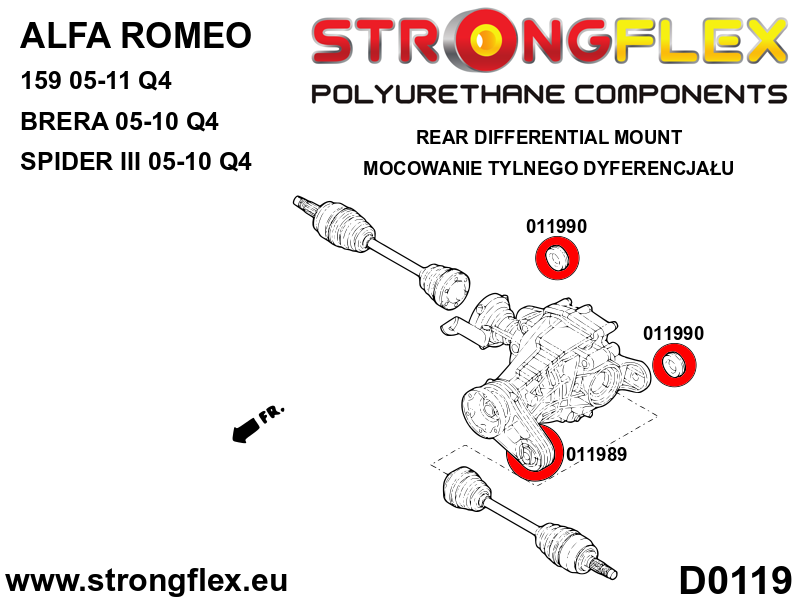

• D0119
• S0106
• S0107

Notes

• To mount bushing 011703/011704 use external aluminum bracket from the old original rubber.

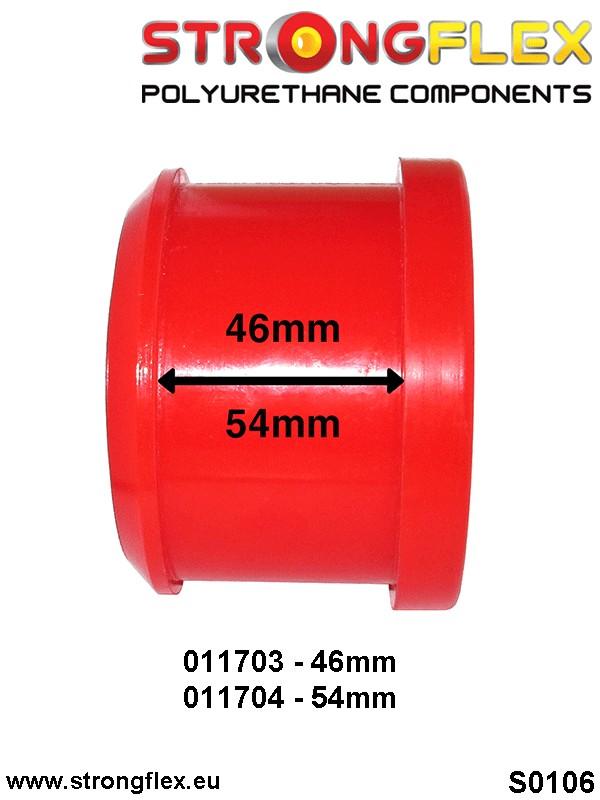

• There are two sizes of brackets bush.
  Older models to about 2007 years have 46mm bracket (bush 011703).
  Later models after about 2007 years have 54mm bracket (bush 011704).

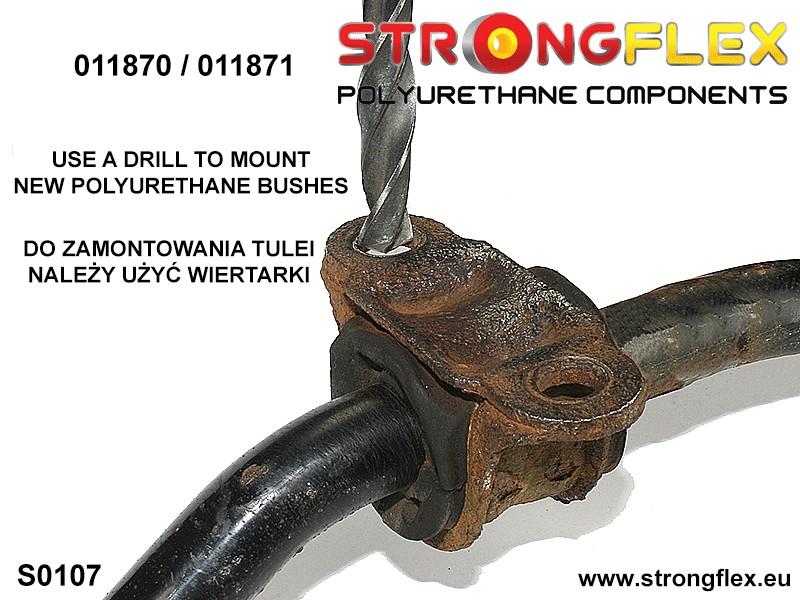

• For bush 011870/011871:
  In order to install a new polyurethane bush, the stabilizer clamp must be drilled. Do not drill through the clamp!

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 27

Hardness: 90Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
