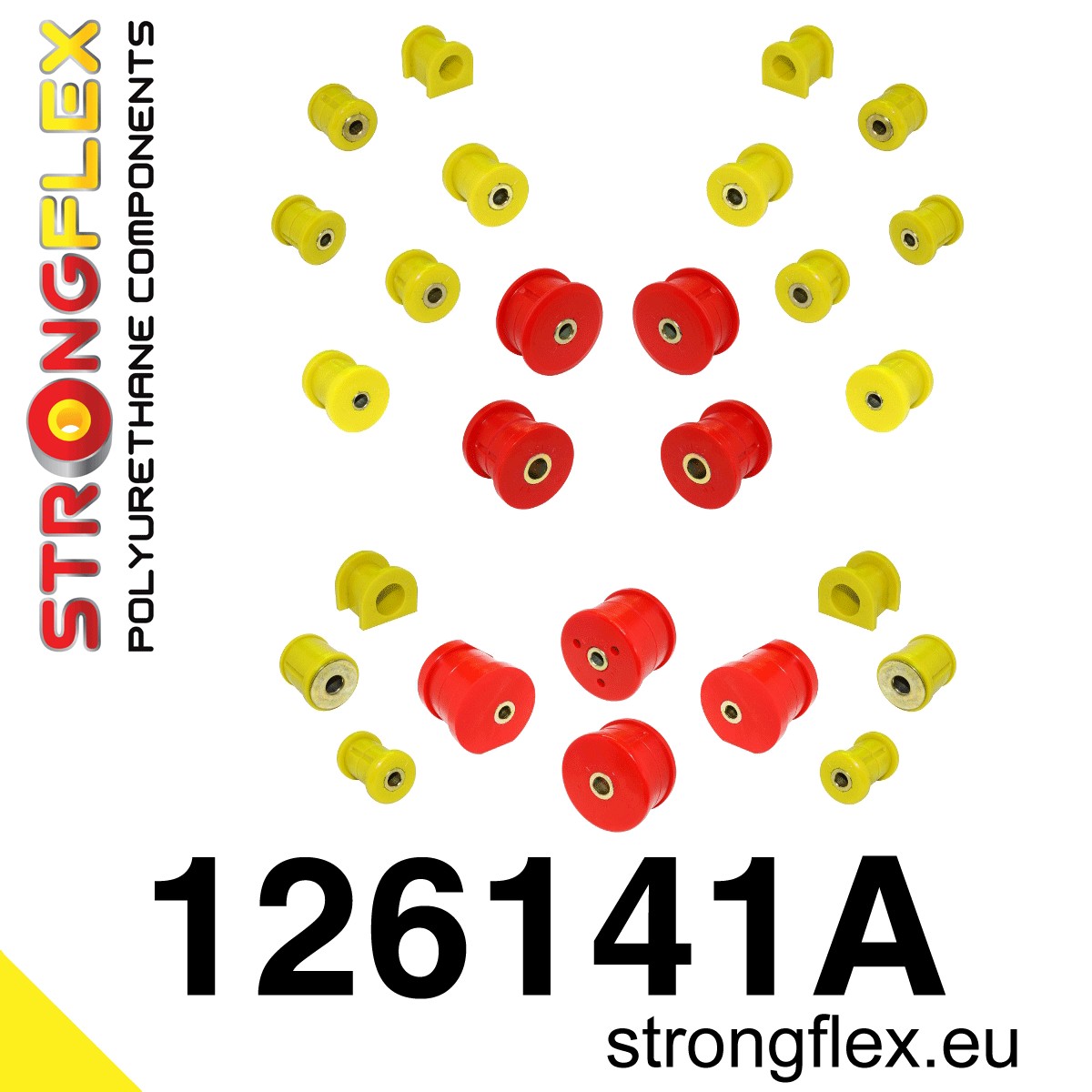

Reference: 126141A
Product name: Full suspension bush kit SPORT
Fits to:
- Mitsubishi Lancer Evolution IV / V / VI (96-01)
Include:
- 2x 121472A: Front wishbone front bush 14mm SPORT
or - 2x 121502A: Front wishbone front bush 12mm SPORT
- 2x 121505A: Front lower arm rear bush SPORT
- 2x 121513A: Front anti roll bar bush SPORT
- 2x 121464A: Rear lower track control arm outer bush SPORT
- 2x 121500A: Rear suspension front arm bush SPORT
- 2x 121501A: Rear upper arm rear bush SPORT
- 2x 121503A: Rear lower trailng arm bush SPORT
- 0/2x 121504B: Rear diff mount front bush (AYC)
- 2x 121467A: Rear lower track control arm inner bush 52mm SPORT
or - 2x 121511A: Rear lower track control arm inner bush 35mm SPORT
- 2x 121512A: Rear anti roll bar bush SPORT
- 2x 121473B: Rear diff mount rear bush
- 1x 121471B: Front lower diff mount 62mm
or - 1x 121506B: Front lower diff mount 70mm
- 1x 121507B: Front lower front engine mount
- 2x 121515B: Front upper engine mount

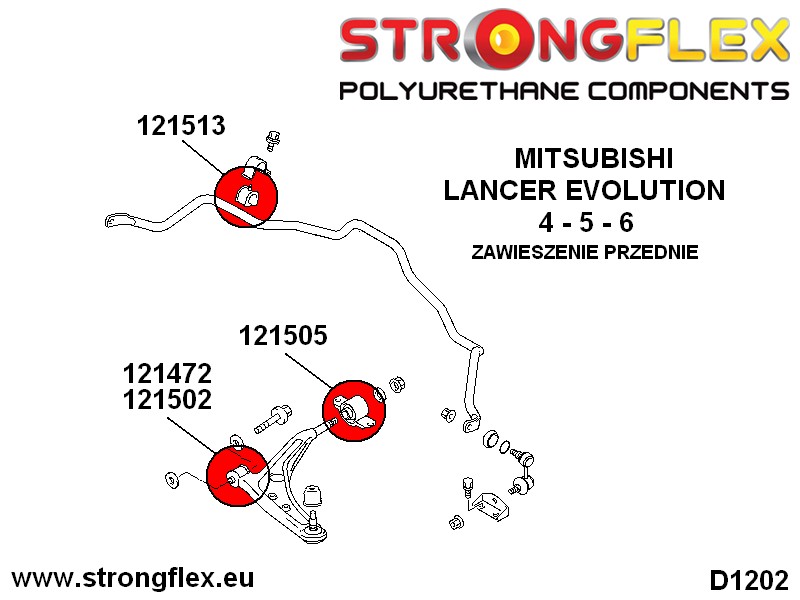

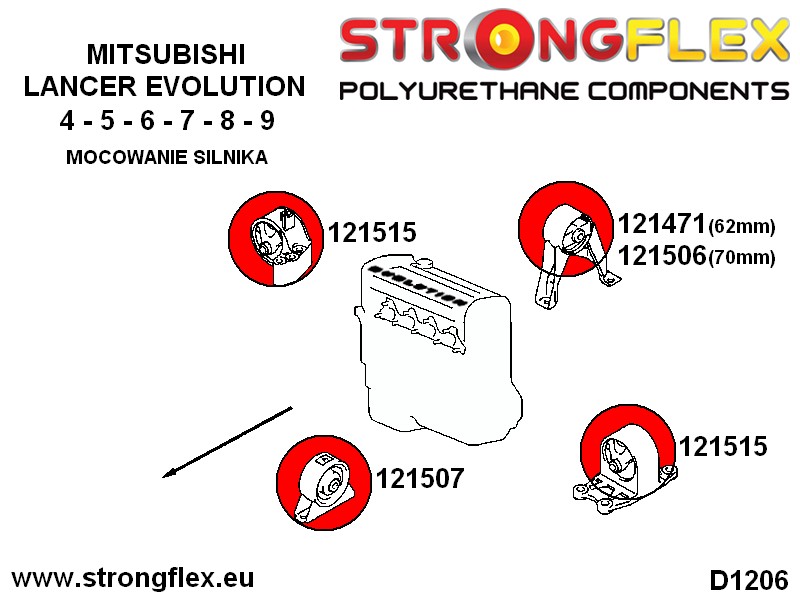

Diagrams:
Notes
- Front wishbone bush - front:
121472 - inner diameter 14mm / M14 screw
121502 - inner diameter 12mm / M12 screw
- Rear lower inner control arm bushing:
121467 - diameter 52mm
121511 - diameter 35mm
- Front differential mounting bush:
121471 - diameter 62mm
121506 - diameter 70mm
- Bushing 121504 only fits Active Differential (AYC) Does not fit RS model.
Required/car: 1
Pcs / prod: 1
Pcs / KIT: 24/26
Hardness: 90Sha
Material: POLIURETHANE (PUR/PU)
To every product we add grease!
