ZF Transaxle 5-versnellings H-Pattern Versnellingsbak

ZF Transaxle 5-versnellings H-Pattern Versnellingsbak — hoogwaardig Quaife product voor motorsport en weggebruik.

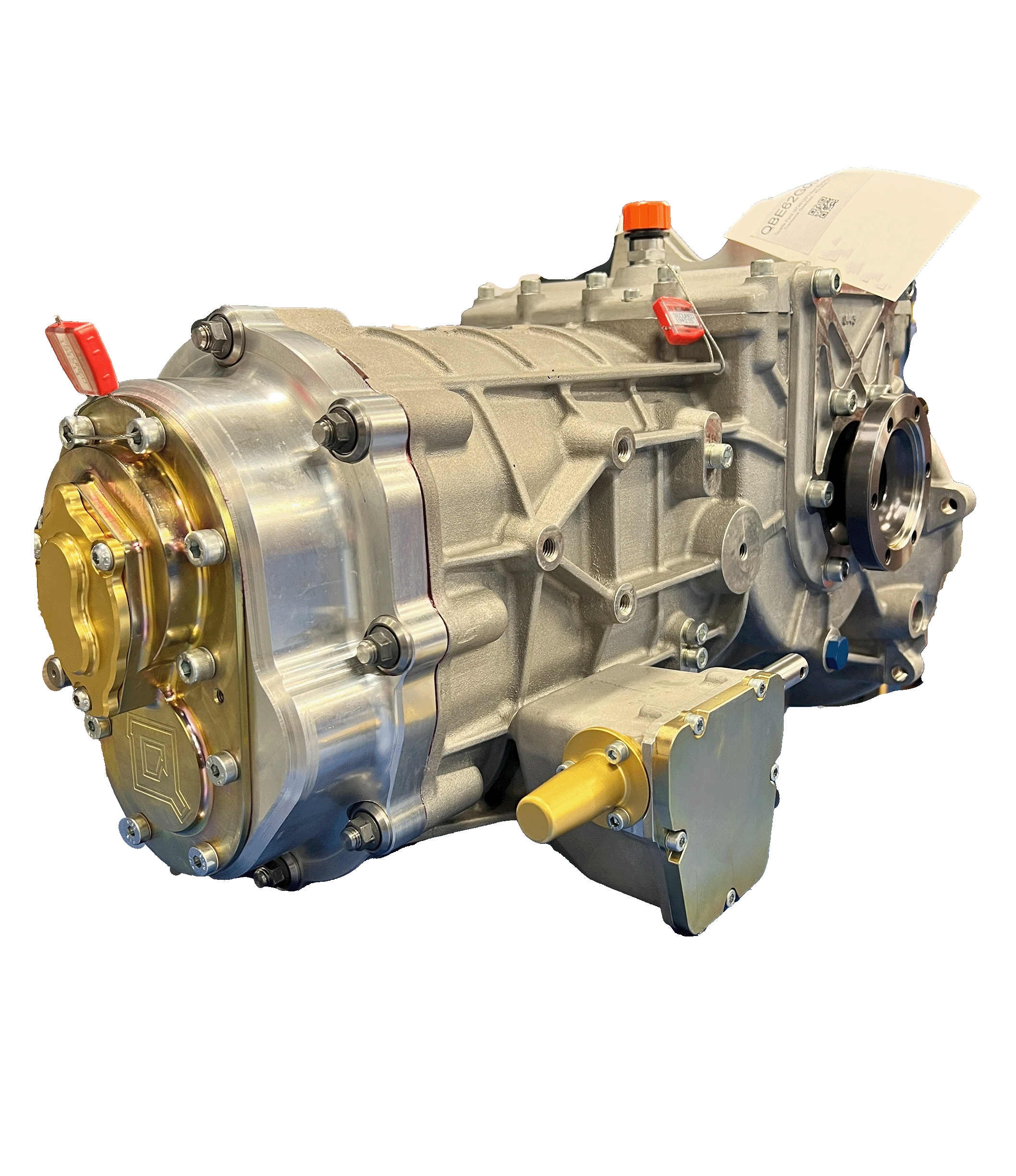

Quaife designed the QBE62G to provide a modern, uprated, robust replacement transmission for the ZF DS-25/2 gearbox as used in the Ford GT40, and many other mid-engined supercars.

The fitment, major dimensions, gearchange location and shift system used on the Quaife QBE62G replicate the ZF DS-25/2 gearbox, while the five speed ‘H-pattern’ layout and distinctive ‘dog-leg’ first gear location are also retained to ensure authenticity.

Developed in conjunction with a British-based replica manufacturer, Quaife has ensured that the unit’s length allows for easy installation into Ford GT40 type cars, but QBE62G is also suitable for numerous mid-engine replica and kit car applications.

Key engineering details include the use of 85mm shaft centres and an ultra-reliable hypoid crownwheel and pinion, which enables the QBE62G transaxle to handle a maximum recommended 500bhp.
Helical gears are included with a synchromesh gear selection, minimising gear noise and ensuring everyday usability.
A Quaife oil pump and clutch lever assembly are available as optional extras.

Key features of the Quaife QBE62G 5-Speed, ‘H’ pattern ZF replacement transaxle gearbox include:-

• •   85mm shaft centres and hypoid crown-wheel and pinion
• •   REM Superfinished gears as standard
• •   Fitment, major dimensions, and gear-change input replicates original ZF DS-25/2
• •   5-speed H-pattern with ‘dog-leg’ 1st, as per original ZF DS-25/2
• •   Helical gears and synchromesh gear selection

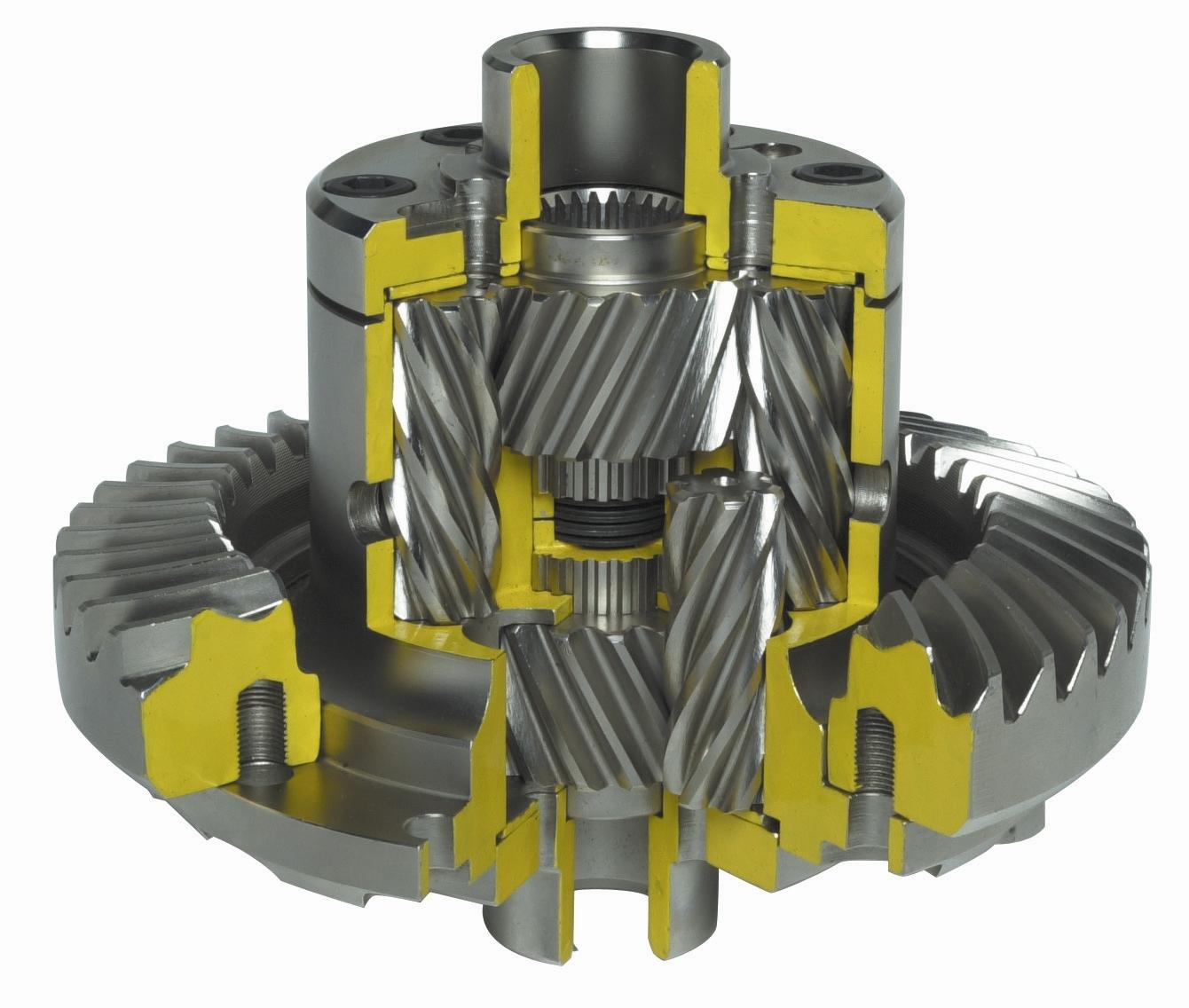

• •   Quaife ATB differential included

Gear Ratios:

Final Drive Ratios:

3.500

3.750
